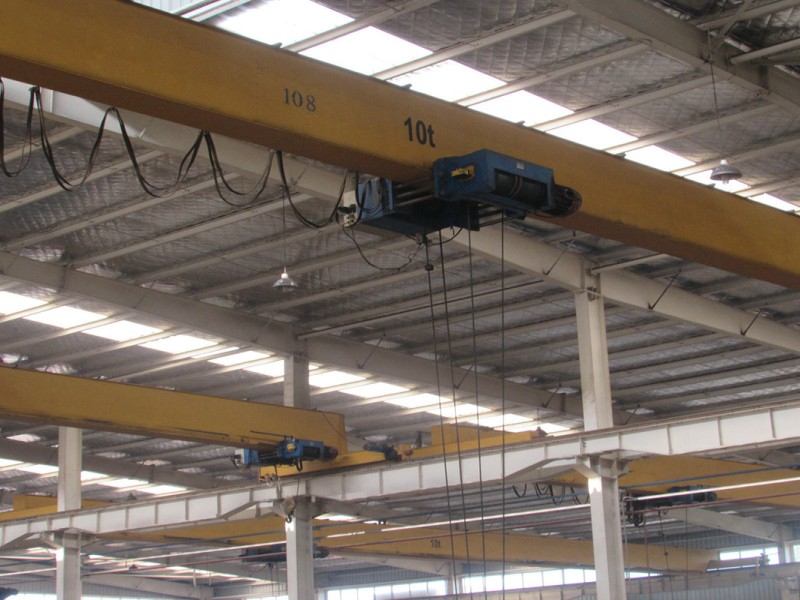

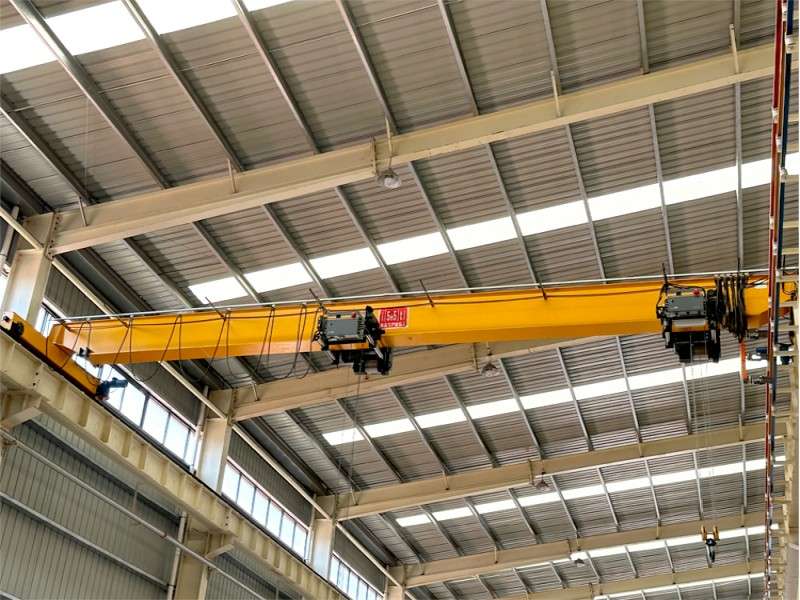

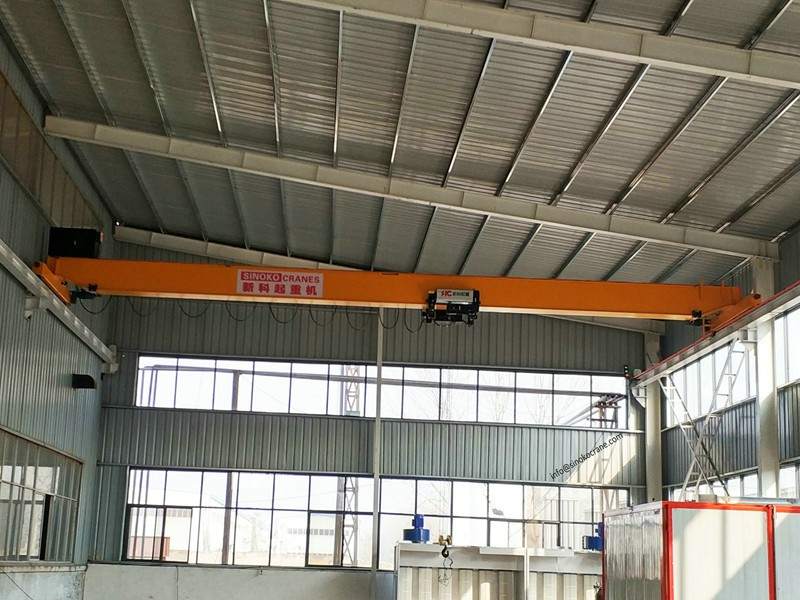

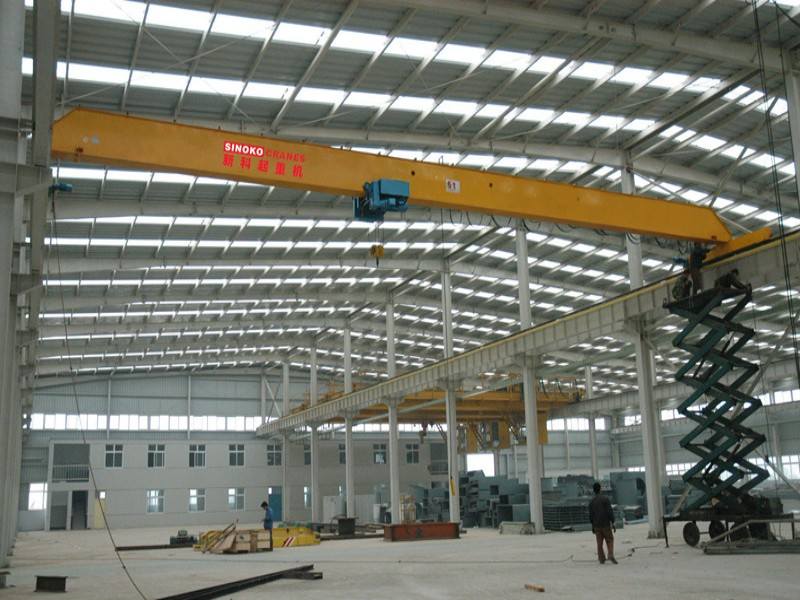

The components of SINOKO Factory Handling Equipment Hoist Crane are advanced, such as galvanized high strength wire rope, self-adjust disk brake and hard tooth reducer both for lifting mechanism, programmable lifting limiter, and so on, is the innovative product in the domestic crane industry.
Features
The main beam adopts bias-rail box-type structure and connects with end beam by high-strength bolt ensuring easy operation. The professional equipments ensure the connection accuracy of main end beam, making crane run steadily. |
|
| Long crane cross trolley travelling mechanism adopt Europe three-in-one drive type, harden tooth surface gear box, good performance in compact structure, low noise, none oil leakage and longer service life. |
Full variable-frequency control runs steadily without any impaction. Run with at low speed and light load at high speed, it can save energy and reduce consumption. |
|
Specification

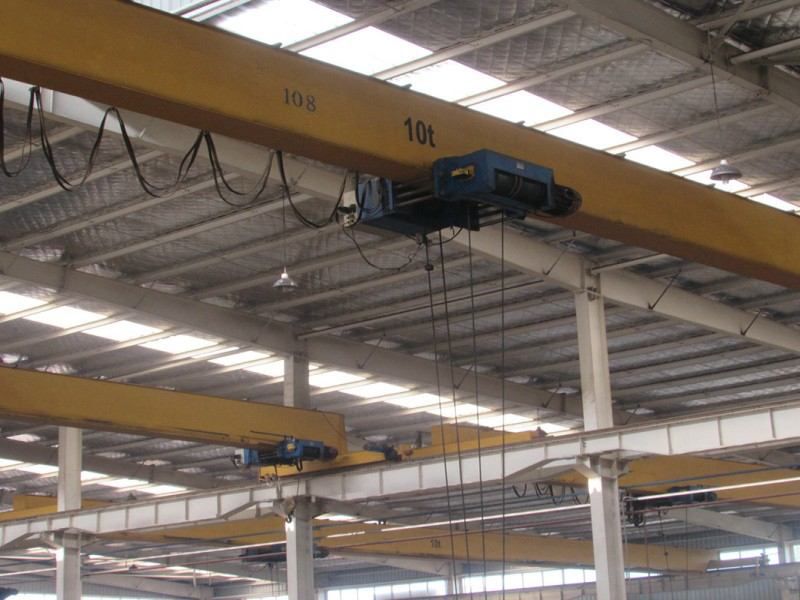

| Item | 5 ton Overhead Hoist Crane |
| Main Electrical System | Schneider Brand |
| Frequency converter/VVVFDrive | Schneider Converter |
| Lifting mechanism | ABM/SEW Three in One Mechanism (Motor & Reducer & Brake) |
| Travelling Mechanism | DONLY Three in One Mechanism |
| Wire Rope | PFEIFER |
| Wire Rope Safety Factor | 5 times |
| Wire Rope Drum | Rolling Steel Plate |
| Bearing | SKF / drum, hook set, pulley. |
| Crane wheel | Forged type-42CrMo |
| Travelling cable | High Temperature Resistance |
| Buffer | CableBlack rubber buffer |
| Power Source/ Control Voltage | 380V 50HZ 4P AC/48Vw |
| Motor Insulation StatorProtection | Class H & IP54 |
| Working Temperature | 60℃ |
| Cover Plate under Beam | Q345B |
| Main structure Steel material | Q235 |
| Painting | Shot blast Cleaning Dispose- 2 Grade, Epoxy Primer,Anti-corrosion Paint, Polyurethane surface painting |
| Safety Feature | Lifting and travelling limit switches; Emergency Stop; Loss voltage protection;Grounded protection; Overload protection ;Short circuit protection; Overheating protection; Over speed protection ;Over current protection; Faulted phase protection |
CASE
Curious how our lifting solutions perform in real factories? Browse our crane project case studies to see how we deliver efficiency, safety, and reliability across different industries.
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a Quote
5T LDA Single Beam Overhead Crane for Ethiopian Textile Factory
Boost your lifting efficiency with our 5T Single Girder Bridge Crane — reliable, durable, and built for performance. Perfect for workshops, warehouses, and industrial handling.
Learn More Get a QuoteFAQs
This crane features premium elements such as galvanized high‑strength wire rope, self‑adjusting disc brake, a hard‑tooth reducer, and a programmable lifting limiter—innovative upgrades that stand out in the domestic crane market.
The main beam uses a bias‑rail, box‑type structure securely bolted to the end beam with high‑strength bolts, ensuring precise alignment and steady, smooth crane movement.
The long‑travel and cross‑trolley mechanisms utilize a European-style three‑in‑one drive (integrating motor, gearbox, and brake) with hardened gear surfaces—delivering compact structure, low noise, zero oil leakage, and extended service life. Variable-frequency drives (VVVF) further enable soft start, efficient speed control, and energy savings.
Equipped with Schneider electrical systems and converters, ABM/SEW three‑in‑one hoist mechanism, Pfeifer wire rope with a safety factor of five, SKF bearings, forged 42CrMo crane wheels, and high‑temp–resistant cables. Protection includes IP54 motor insulation and a comprehensive safety suite—overload, over‑speed, limit switches, emergency stop, grounding, loss‑voltage, short circuit, overheating, over‑current, and phase-failure protections.
Powered by 380V 50 Hz AC and controlled at 48 V, this crane tolerates ambient temperatures up to 60 °C. Its structure is built from Q235 and Q345B steel, and it receives multi-stage anti‑corrosion treatment: shot‑blast cleaning, epoxy primer, and polyurethane surface paint for robust protection.
The crane’s compact, lightweight design, full variable-frequency control, and durable drive components make it ideal for continuous industrial workflows. Smooth operation at both low and high speeds ensures energy efficiency, reduced wear, and minimal downtime—all critical for factory performance.
