Orange Peel Scrap Grabs For Scrap Handing

Orange Peel Scrap Grabs For Scrap Handing

Main Features:

1.Reasonable structure, excellent performance
2.Soft starting and stopping
3.Safe and reliable traveling
4.Low noise ,commodious cabin and open view
5.Low maintenance, easy replacement of parts and components


Overview:

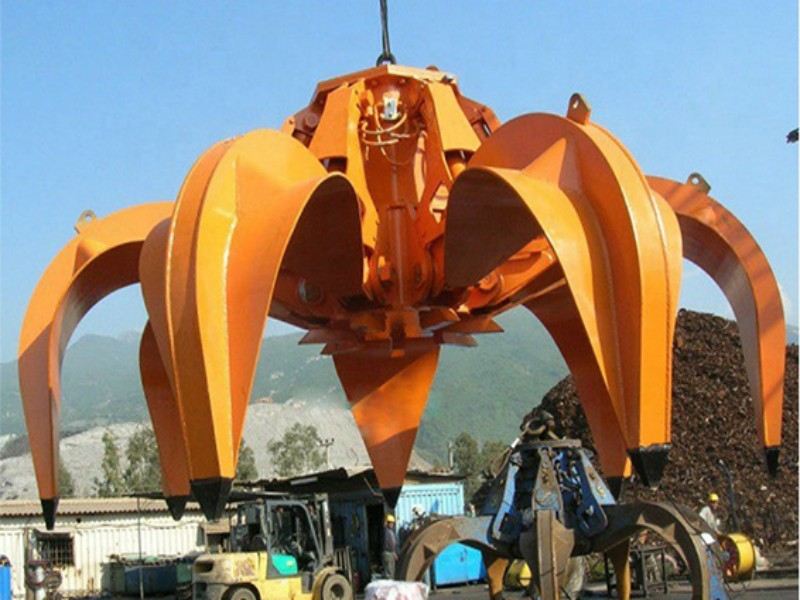

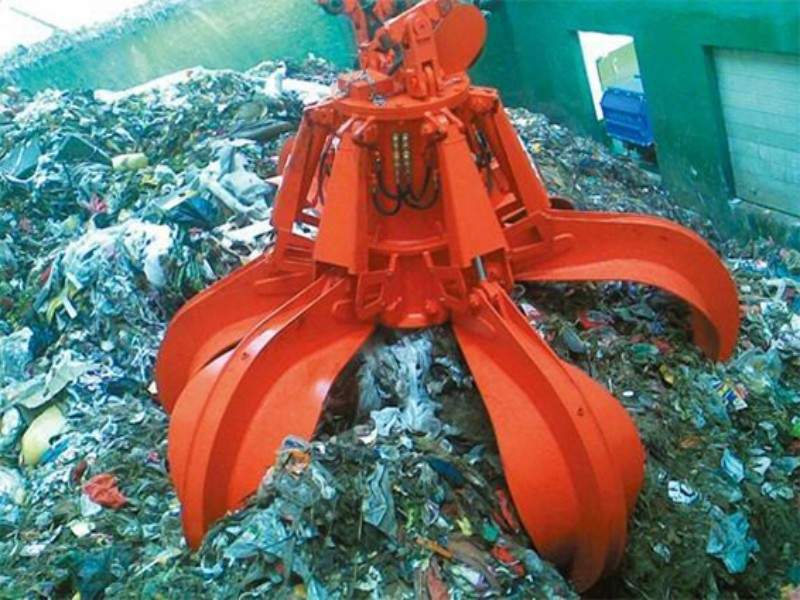

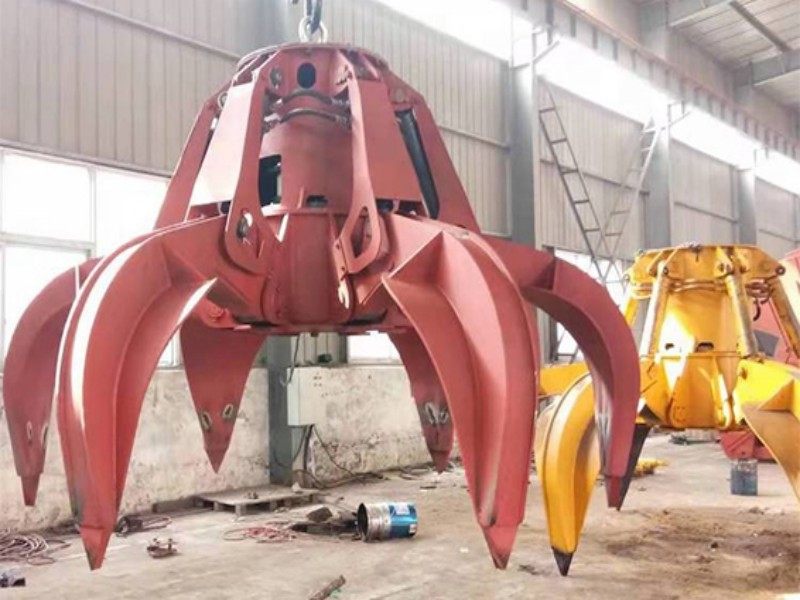

Orange Peel Scrap Grabs For Scrap Handing

Orange Peel Scrap Grabs For Scrap Handing has hydraulic power and control system itself, and the hydraulic power system is imported from Europe and USA. The grab uses constant output pump and servo system. The flow of pump can change by itself according to working pressure. When the pressure reaches the max pressure, the flow is almost zero, so it can reduce the overflow, and reduce the temperature rise of oil. The opening and closing is controlled by valves or positive inversion motor which ensures the grab can positive inversion rotate frequently. The grab can be designed as half-close or full-open type with long teeth. The peels of the grab are particular, it is easy to grab scrap steel. The grab has six or eight peels, and each peel is driven by an oil cylinder, so the material won’t leak. The grab has tie-in on the grab and it is easy to connect to the crane.

Features

1.  Our motor hydraulic grab feature high productivity, long life span and low costs.
2.  Some parts, for example, cylinder bolts or clamshell bolts are never subject to change, if they are greased properly.
3.  Lowest running costs per ton material transferred: good performance, high productivity, low maintenance cost, and high reliability.
4.  We adopt imported brands for the design of main hydraulic system components, such as motor, valves, sealing and etc.
5.  Our electric grabs have advantage of low operation height, variable displacement pump, powerful digging force, simple structure, easy operation, low noise, and stable in working under any circumstances.
6.  The cylinder never gets rust.
7.  The shells are available in open, half closed and closed versions and with every kind of possible opening direction and with diverse cable patterns.
8.  The robust design of the electric grab is manufactured with high-tensile steel. It is lightweight, with excellent filling and digging and fast emptying capabilities.

Specification

Orange Peel Scrap Grabs For Scrap Handing1.jpg

TypeDensityVolumeGrab WeightMotor output (kw)Close timeOperating PressureCrane SWL

t / m3m3kg380V 50Hz440V 60HzsKg/cm2t
DYP6-2.0-1.5-001.52.030001113112206
DYP8-3.1-1.5-001.53.133001518132208
DYP10-4.2-1.5-001.54.2360022261722010
DYP12-4.5-1.5-001.54.5520022261722012
DYP16-6.8-1.5-001.56.8580022261822016
DYP20-8.6-1.5-001.58.6700030351822018
DYP24-10-1.5-001.510900037442022024
DYP28-13-1.5-001.513950045542022028
DYP30-15-1.5-001.5151000045542222030
DYP32-17-1.5-001.5171050055662322032
