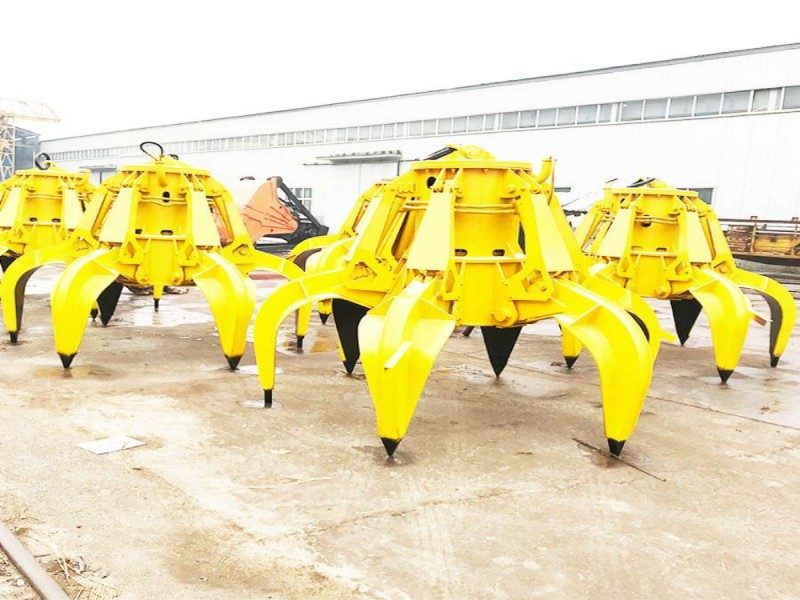

Steel Mill Scrap Clamshell Grab Bucket

Steel Mill Scrap Clamshell Grab Bucket

Steel Mill Scrap Clamshell Grab Bucket is applicable to harsh environment and engaged in handling iron scrap or larger block materials in steel plant.

Clamshell Grab Bucket.jpg


Overview:

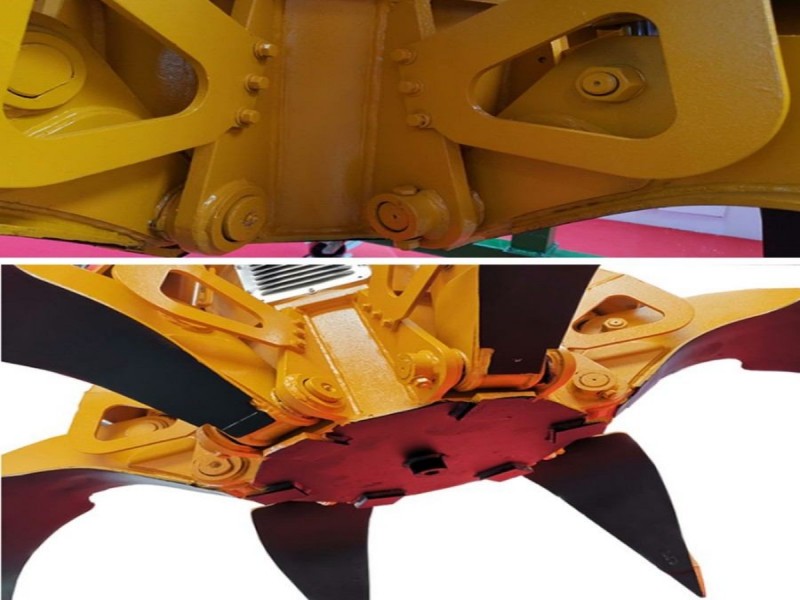

Construction of electric hydraulic grab

1. Grab frame: Q345 steel

2. Grab peel: The peel is made of Q345 and the edge is made of high wear-resistance steel for stable performance and long service life

3. Grab mechanism: Motor, hydraulic pump, valve block, pipes and hydraulic oil tank

4. Protection grade: Up to IP 65, different according to working requirements and environment

5. Coating thickness: up to 180 μm

Electric bucket grab.jpg


Features

Features of Steel Mill Scrap Clamshell Grab Bucket

1.Handling steel scrap , irregular block.

2.Powered by a electric motor of high performance

3.Compact structure with built-in hydraulic system



Specification

Technical Specification of Steel Mill Iron Scrap Clamshell Grab Bucket

Type

Electro Hydraulic Grab

Capacity

1 CBM TO 16 CBM

Grab Structure

Q345B

Pins & Axles

40 Cr 1 Mo 28, IS; 1570, Hardened, ground and tempered and Hard   Chromium Plated

Working Pressure

Opening pressure 140 bar Closing pressure 220 bar

Grab Working Cycle

Opening 10 to 15 seconds

Closing

13 seconds
