Crane Power Conductor Line

Crane Power Conductor Line

1. Safe and reliable, with IP 43 .

2. Waterproof and dustproof to prevent fingers from electric shock.

3. Energy saving and consumption reduction. The use of international conductive materials can reduce the power loss in the electric circuit to the greatest extent.

4. The maximum moving speed is 200m/min.

5. Easy to install and maintain.


We have three types of crane power conductor line for your choice.

No1. High-tro-reel systems(50A、80A、100A、120A),

No2. Powerail enclosed conductor systems(35A to 240A),

No3. Insulated conductor systems(150A-3000A)


Overview:

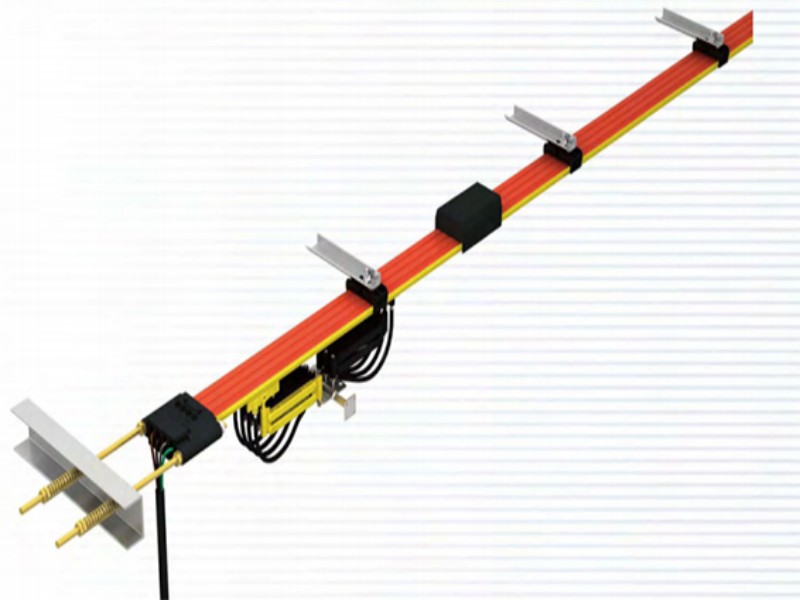

Crane Power Conductor Line

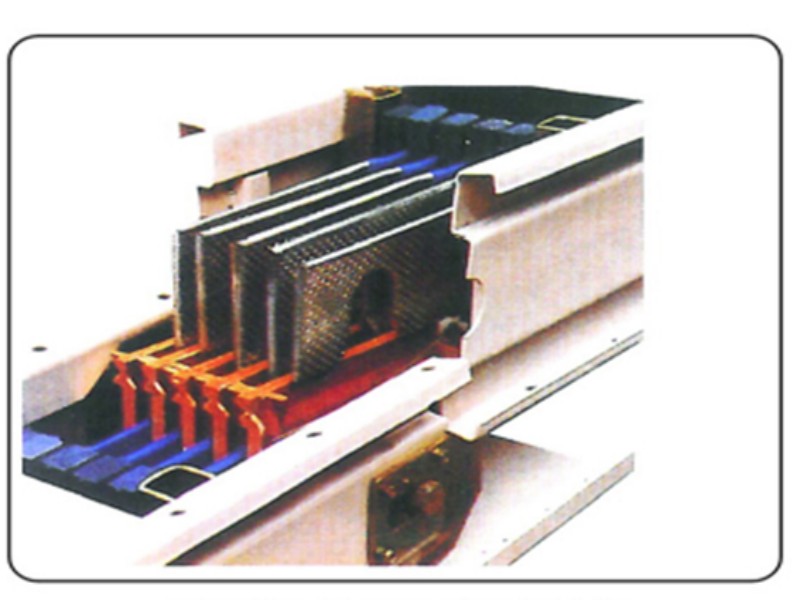

Crane Power Conductor Line is a slide line with the function of preventing accidental impact and hazard. It can be used indoors and outdoors. The structure is an engineering plastic insulated shell, which can be loaded with copper wires of different cross-sectional areas. And Crane Power Conductor Line's rated current value is 35A to 240A. The operation of the relay is guided by the tractor, which is mainly transmitted by the carbon brushes with springs.

Features

Crane Power Conductor Line

1. Safe and reliable, with IP 43 .

2. Waterproof and dustproof to prevent fingers from electric shock.

3. Energy saving and consumption reduction. The use of international conductive materials can reduce the power loss in the electric circuit to the greatest extent.

4. The maximum moving speed is 200m/min.

5. Easy to install and maintain.

6. Long service life, unique formula of conductor sheath, greatly increase the service life of the slide conductor system.

7. According to the working condition of the equipment, the bending and sliding wire system can be made.

8. The insulation sheath is added with anti-ULTRAVIOLET component, suitable for outdoor.

9. Provide standard PVC insulated sheathing and PPO heat-resistant insulated sheathing, suitable for different working environment.

10. The whole series of products can meet the VO extreme fire rating, -40 degree environmental requirements.

Specification

Type
Specification
Length(m)
Weight(kg)
Max.current(A)
H-402-6mm2
6mm2


1
0.69
30A
H-402-10mm2
10mm2
0.83
50A
H-402-16mm2
16mm2
1.04
80A
16mm2/10mm2
0.99
80A

H-402-25mm2
25mm2
1.36
120A
25mm2/10mm2
1.23
120A
H-402-35mm2
35mm2
1.72
140A
35mm2/10mm2
1.49
140A
H-402-45mm2
45mm2/16mm2
1.82
180A
