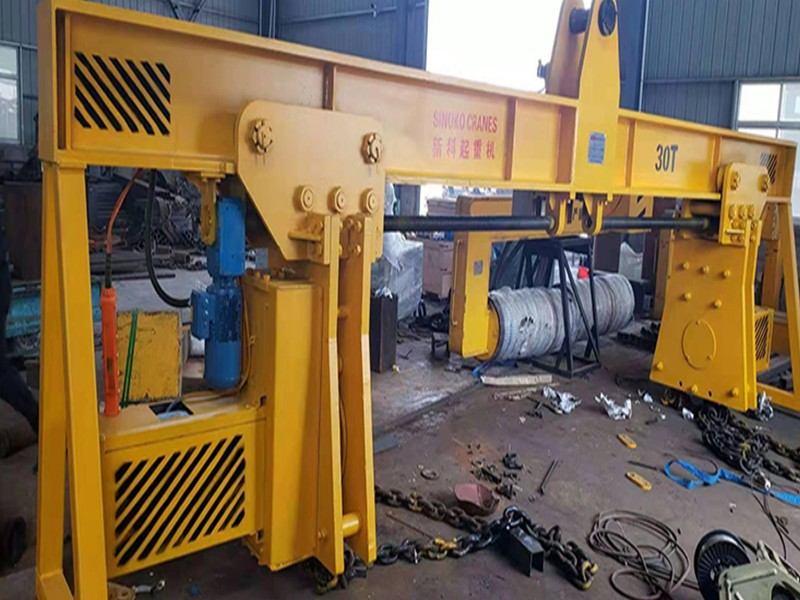

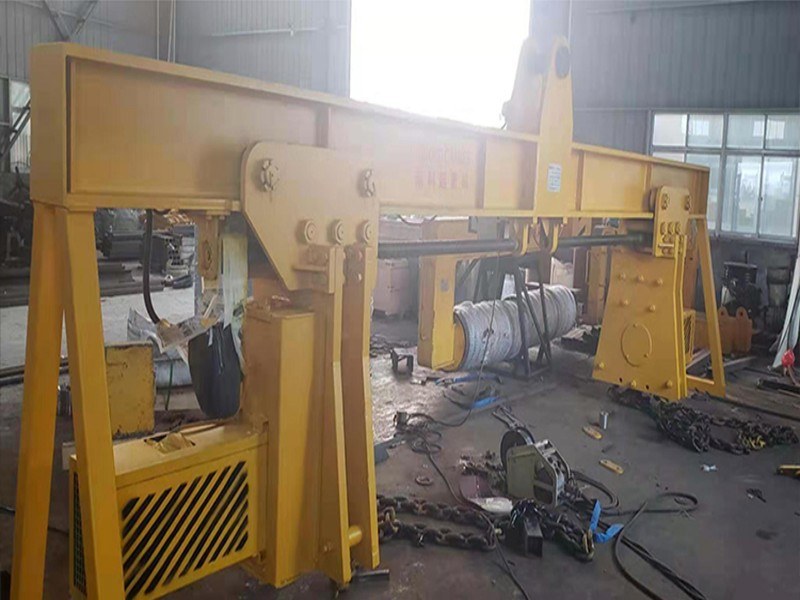

Mold Load Turning Machine is an ideal lifting equipment to overturn goods, it is widely used in mining, mold processing, steel mill, automobile manufacturing, port yard etc.
Mold Load Turning Machine is designed for safe lifting and turning of inherent loads with nearly round or square cross -section. Especially suitable for heavy and bulky goods, such as machine components, welded frames, mould boxes for foundries, concrete precast parts
Mold Load Turning Machine increases operational safety and productivity. Auto load balance system is to adjust synchronously and asynchronously. The max. carrying capacity is up to 130ton.

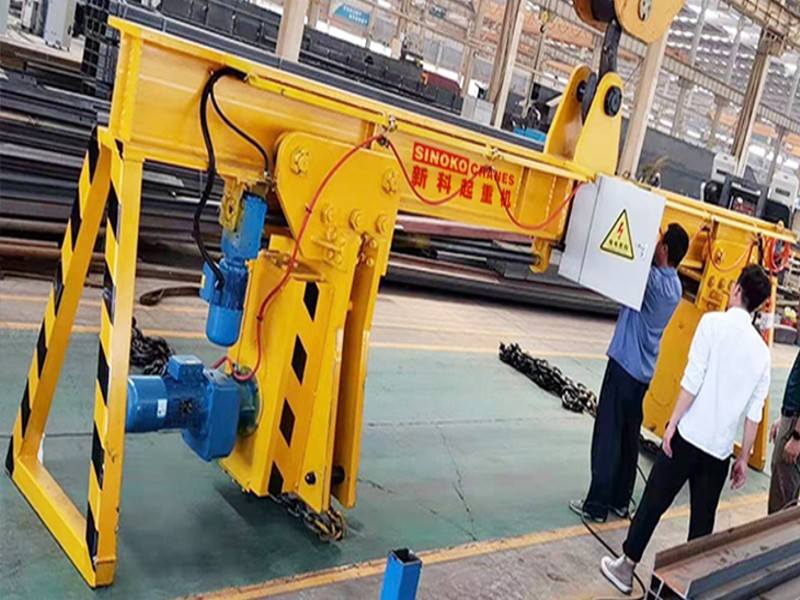

Electric panel of Mold Load Turning Machine
Standard design of Mold Load Turning Machine
1. | Suspension Frame | It is suitable for single crane hooks according to DIN15401 |
2. | Safe Turning Equipment | The overturning procedure can be stopped at any time and in each position by emergency stop |
3. | Driving Adjustment System | Two roller are driven by an electric motor, and available to run in synchronism. |
4. | Emergency Stop Operation | Radio remote control with automatic belt or chain cut-off to prevent the belt lock from driving through the rollers |
5. | Electric Panel Control with PLC | The electric panel control is completely wired in the switch box and with plug for the connection to the crane facilities without spring cable reels. |
