Sketch of Mold Load Turning Machine

Sketch of Mold Load Turning Machine

Mold Load Turning Machine is an ideal lifting equipment to overturn goods, it is widely used in mining, mold processing, steel mill, automobile manufacturing, port yard etc.

Overview:

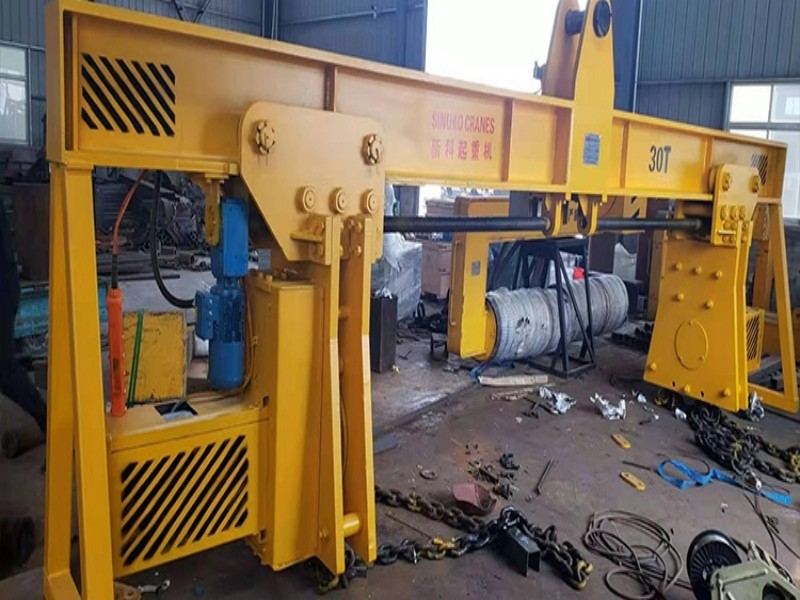

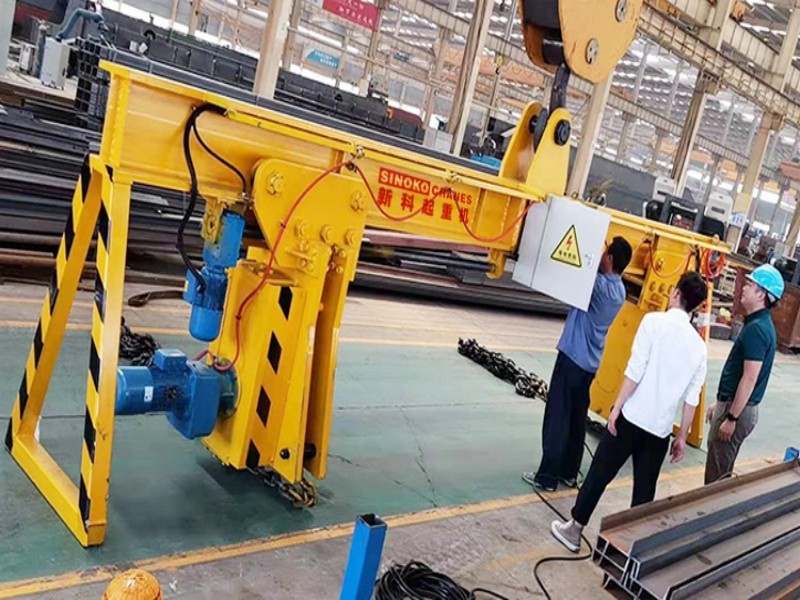

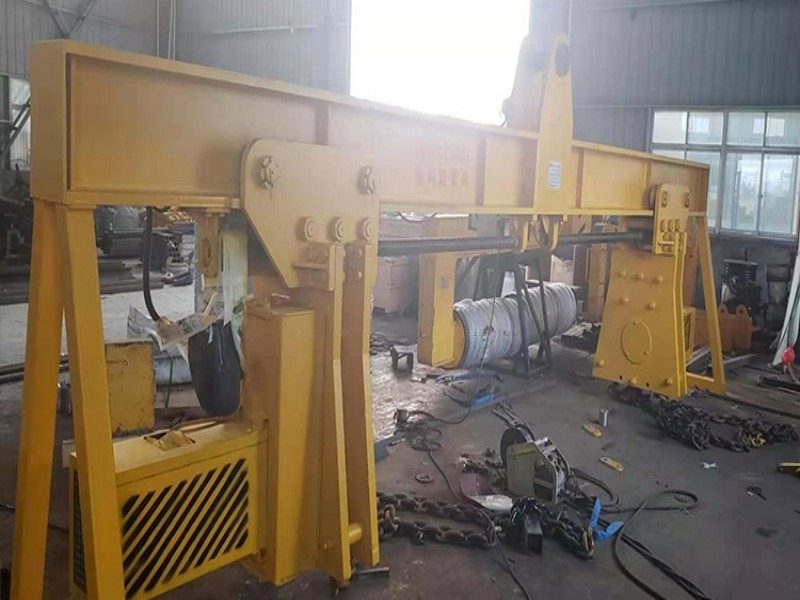

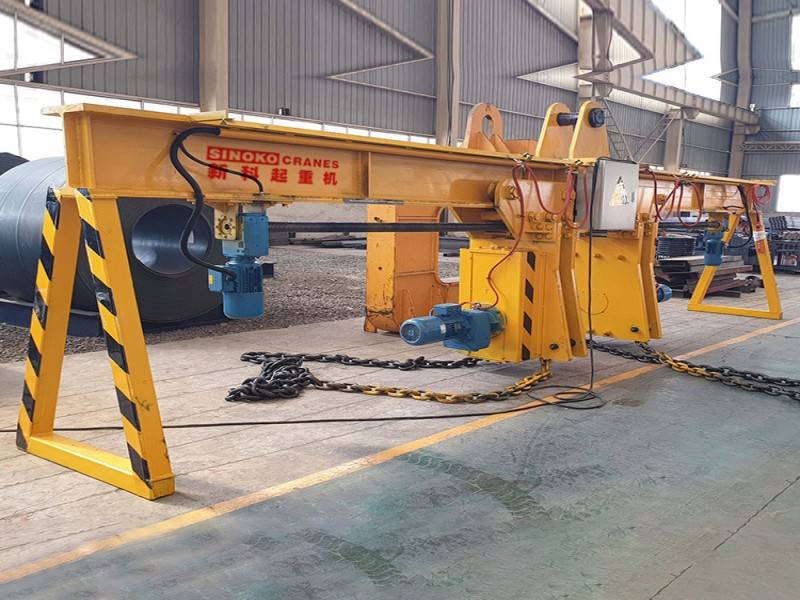

Mold Load Turning Machine is designed for safe lifting and turning of inherent loads with nearly round or square cross -section. Especially suitable for heavy and bulky goods, such as machine components, welded frames, mould boxes for foundries, concrete precast parts

Load turning device.jpg

Features

Mold Load Turning Machine increases operational safety and productivity. Auto load balance system is to adjust synchronously and asynchronously. The max. carrying capacity is up to 130ton.



Electric panel of Mold Load Turning Machine

 Electric panel.jpg



Specification

Sketch of Mold Load Turning Machine

 Load turning drawing.jpg

Standard design of Mold Load Turning Machine

1.

Suspension Frame

It is suitable for single crane hooks   according to DIN15401

2.

Safe Turning Equipment

The overturning procedure can be stopped   at any time and in each position by emergency stop

3.

Driving Adjustment System

Two roller are driven by an electric   motor, and available to run in synchronism.

4.

Emergency Stop Operation

Radio remote control with automatic belt   or chain cut-off to prevent the belt lock from driving through the rollers

5.

Electric Panel Control with PLC

The electric panel control is completely   wired in the switch box and with plug for the connection to the crane   facilities without spring cable reels.
