10t 20t 50t Soft Start Motor Driven Rail Traveling Gantry Double Girder Gantry Crane

10t 20t 50t Soft Start Motor Driven Rail Traveling Gantry Double Girder Gantry Crane

Double Girder Gantry Crane is widely used for the workshop, station, port, warehouse and,etc., It is used for loading and unloading between fixed span and it can handle many kinds of materials, such as steel structure, precast concre, machines, components, etc.

Rated lifting capacity: 10t-100t

Max lifting height: 15m

Working duty: A5-A8

Certification: CE, ISO, SGS

Warranty: 12 months


Overview:

1. A model double beam gantry crane consists of four main parts: the bridge structure, the trolley traveling mechanism, crane traveling mechanism and the electric equipment.

2. The girders and frame are welded structure without weld joint and high degree of vertical and horizontal rigidity.

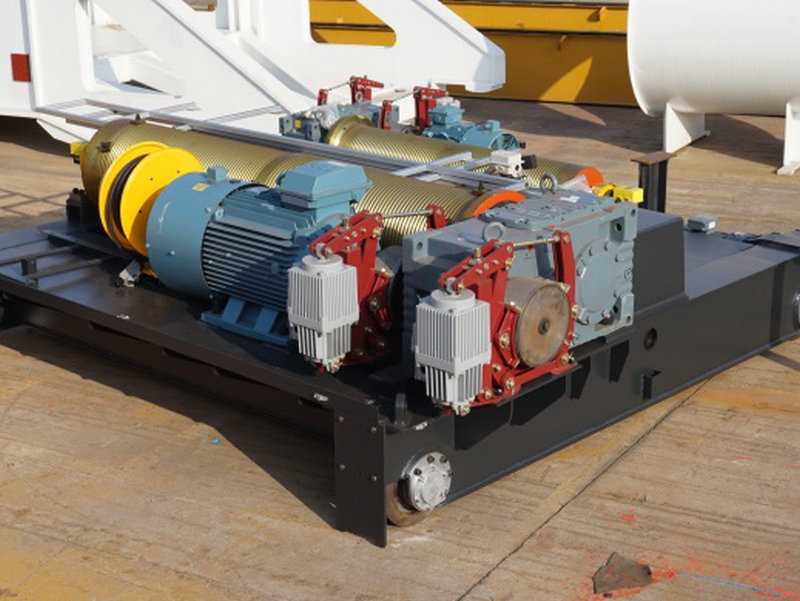

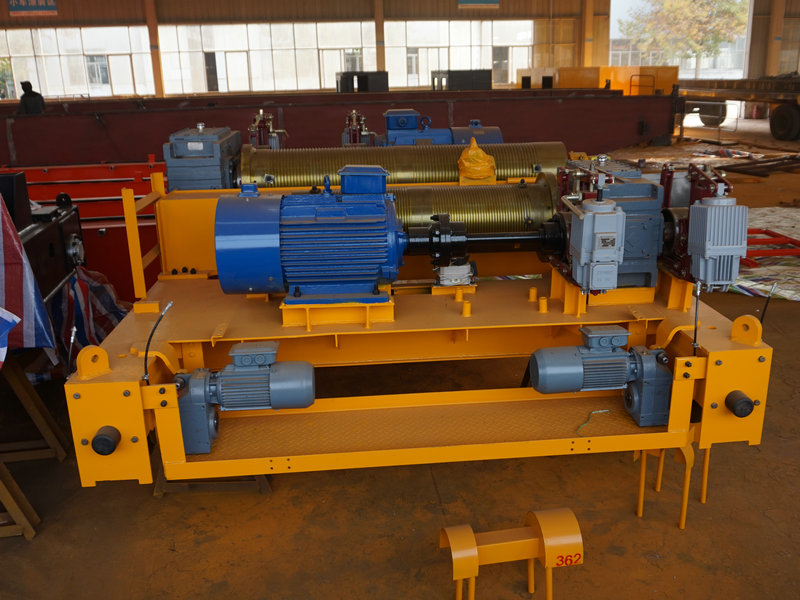

3. The lifting mechanism is electric trolley, it can equip with hook and other tools to lift containers. Some rail, gear, wheel relevant parts with good quality manufactured by our own group, the quality is easily been controlled.

4 .The main electric parts are Siemens and other famous brand. The motor is heavy duty slide ring type, Xindali brandorsome other brand top quality in China. The buffer adopts polyurethane material and the brake iselectric hydraulic type.

5. This crane has two kind conductive forms: cable and slip line. Slip line are first recommended, the conductive form and position should be definite when place an order.

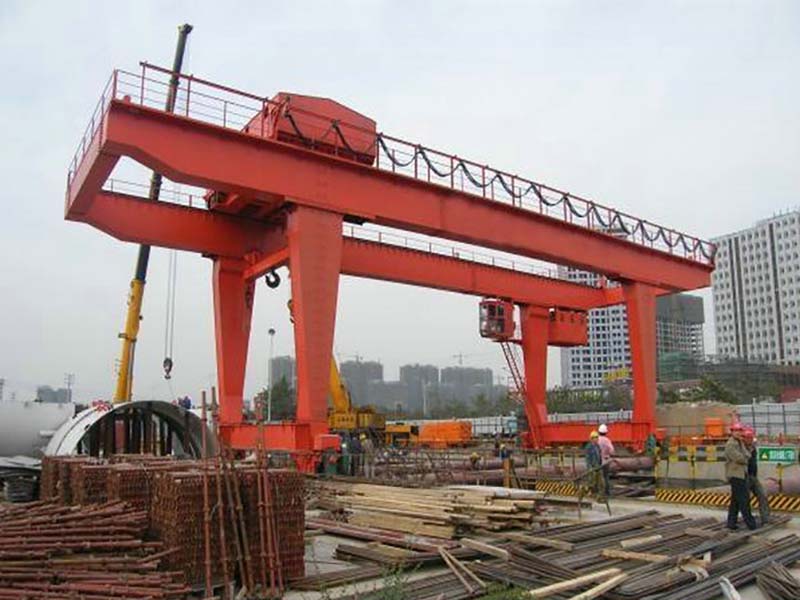

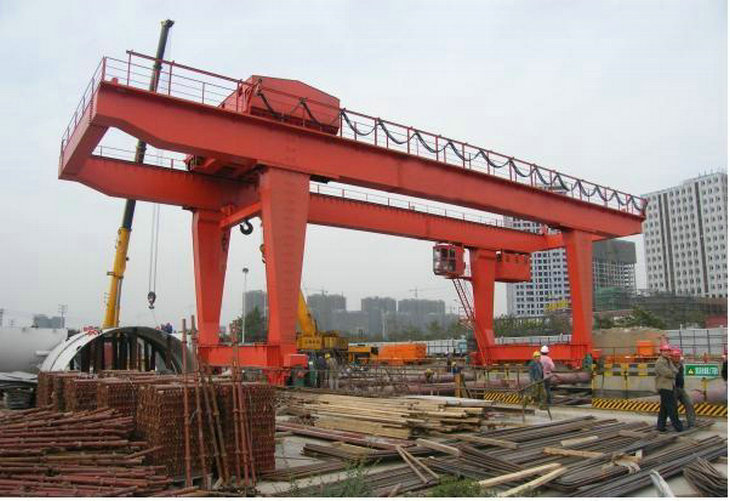

Double girder Gantry crane 1 (1).jpg


Features

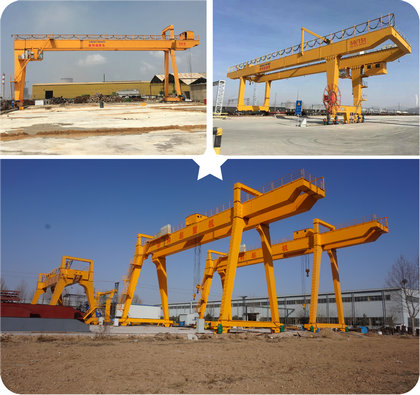

Our factory

Our factory.jpg

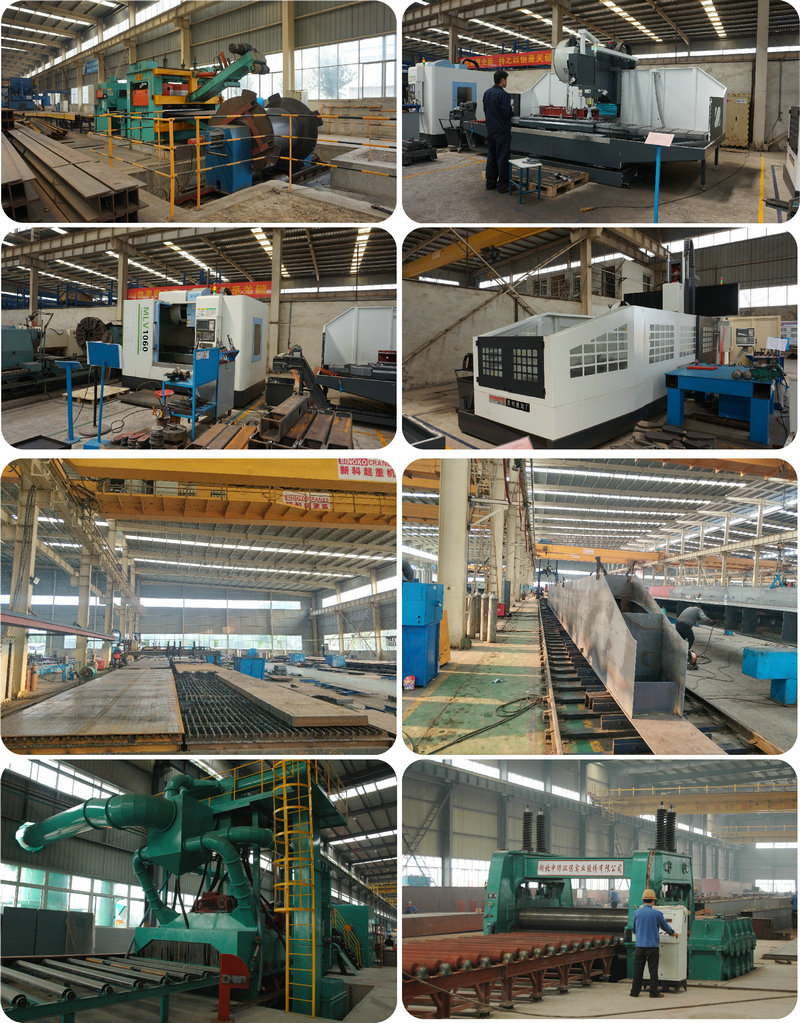

Main production equipments

Main production equipment.jpg

Specification
