Overview:

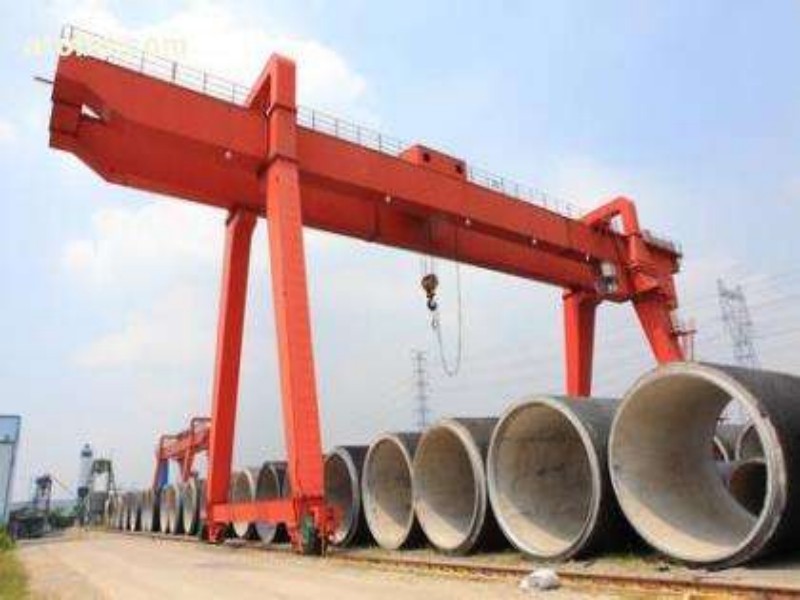

Double beam gantry crane is applicable to highway, bridge, power station etc for loading or unloading, hoisting,
transporting work.
It consists of four main parts, namely, the bridge structure, the crane traveling mechanism, the trolley and the electric
equipment. All movements of the crane are controlled in the operating room. This type of double beam gantry crane has
two conductive forms, cable and sliding contact line. When buy this crane, any form will be fine, and also tell us the crane's working environment and power source.
Features
1. Crane material: Q235, Q345B/Q345D
2. Strong box type, no-welding joint strong box type, by machine hand, strong and beautiful.
3. Wheels are vacuum casting by ourselves, intermediate frequency quenching.
4. Wheels, wire rope, drum, gears, coupling are manufactured by our CNC machines.
5. Electrical equipment: Siemens or Schneider brand.
6. Control method: Cabin control, wireless remote control or pendant control, you can choose two of them.
Specification
| Mechanism Item | Result | |
| Lifting capacity （ton） | 30 | |
| Lifting height (m) | Main | 10-12 |
| Auxiliary | 10.72-13 | |
| Span (m) | 18-35 | |
| Working environment temperture (℃) | -20~40 | |
| Speed (m/min) | Lifting Speed (Main) | 5.9-9.3 |
| Lifting Speed (AuX) | 8.5-16.7 | |
| Trolley | 34-44.6 | |
| Cab | 34.5-47.1 | |
| Working system | A5 | |
| Power source | 3-Phase A C 50HZ 380V | |
CASE
Sinoko Crane’s DIN Standard Double Beam Gantry Crane offers robust performance for heavy-duty industrial applications. Built for precision and durability, it enhances operational efficiency and safety. Learn more about its features, specifications, and pricing today.
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a QuoteFAQs
The crane is designed to lift heavy loads, with customizable lifting capacities to suit your industrial needs.
It is ideal for manufacturing, construction, and heavy-duty industrial operations.
The double beam structure provides greater stability, load handling capacity, and precision during operation.
Yes, this crane includes advanced safety systems like overload protection, emergency stop functions, and anti-collision technology.
Yes, the crane is designed for both indoor and outdoor applications, providing flexibility for different environments.
Yes, Sinoko offers customizable options to tailor the crane to your specific operational needs and facility layout.
