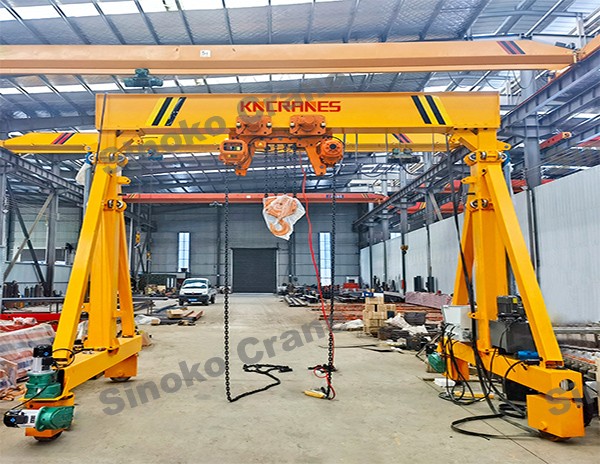

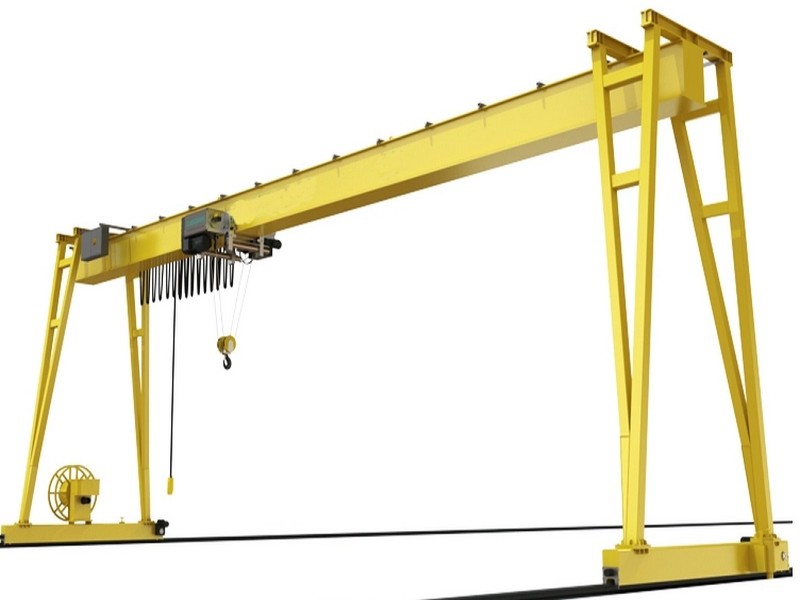

SINOKO 10t Rail mounted Material Handling Gantry Crane is a common gantry crane. The differences is Sinoko use FEM standard to design, and the production strictly according to EUROPEAN gantry crane standards. In addition sinoko crane will take test for every crane to make sure good performance for cranes.


Share With:


10t Gantry Crane

Overview:

10T Material Handling Gantry Crane is one kind of gantry cranes which are widely used in ports, freight yards, open storages, container transfer station, etc. to load and unload containers.

This rail mounted gantry crane chooses the U type, with its legs headroom nearly 7 meters. Therefore, it is suitable to carry heavy bulky cargo and container handling.
The working duty is A5-A8. Weight is from 5-500t, span is from 18-35m.
The girder can be designed with cantilever or without cantilever. The end of two main beams are designed to be connected with end beams to meet high level requirements.

10t Rail Mounted Material Handling Gantry Crane Unique features:

a) high reliability, safety, free maintenance rate;

1) work duty: FEM2M, M5

2) Protection class: IP55

3) continuing rate: 60% ( for the high class motor)

4) Cooling rate: 30% than normal crane

5) Over temperature protection: 170°C

b) compact design, small size, low dead weight, low headroom

c) Low noise

d) Investment-saved---the workshop's civil work cost, due to crane's light dead weight and low wheel pressure.

e) Power-saved. The total motor power is much lower than normal design.


10T Material Handling Gantry Crane Construct

- Material for general crane construct is Q235B, which should be changed into Q345B when the limit temperature is below -40 centigrade.

- Material for crane wheel is 42 CrMo.

- Portal hook for ladle is forged one.

- The steel rope is flexible one or customer’s required.


10T Material Handling Gantry Crane Components

- Electric motor is well-known one in China, like Jiamusi or other international one like ABB, SEW and so on as customer’s requirement.

- Reducer is SEW of other equivalent ones.

- Inverter is Schneider, ABB or some other international ones.

- Such important electric components as breaker, contactor, and fuse are of Schneider, Siemens and so on.

- Other ones can be followed according to our customer’s requirement.

All above datas are standard. Please tell us the following parameters before you finish this order:


1.Lifting capacity
2. Span ( rail centre to centre )
3. The required lifting height ( from hook to the ground ) and the span distance
4. Crane travelling length
5. What will be lifted by the crane
6. The crane and hoist movement speed (m/min)
7. The rail length and the height.
8. Single speed or double speed for lifting and travelling ?
9. Driver cabine control or pendant control ?
10. How many hours work per day ?
11. Power source : 380v,50Hz,3phase or others?

Specification

Mechanism ItemResult
Lifting capacity (ton)30
Lifting height (m)Main10-12
Auxiliary10.72-13
Span (m)18-35
Working environment temperture (℃)-20~40
Speed (m/min)Lifting Speed (Main)5.9-9.3
Lifting Speed (AuX)8.5-16.7
Trolley34-44.6
Cab34.5-47.1
Working systemA5
Power source3-Phase A C 50HZ 380V




Get a Free Quote

CASE

Discover how the 10t Rail-Mounted Material Handling Gantry Crane can streamline your material transport operations. Ideal for factories, warehouses, and construction sites, it offers precise and efficient movement of heavy loads along fixed tracks. Learn how it improves productivity and safety in your business.

40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency

40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency

The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.

Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental

5T Portable Gantry Crane Deployment for Australian Equipment Rental

The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.

Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes

Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes

Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!

Learn More Get a Quote

FAQs

What is a Rail-Mounted Material Handling Gantry Crane?

A Rail-Mounted Material Handling Gantry Crane is designed for transporting heavy materials along fixed tracks. It is equipped with a lifting mechanism, allowing it to efficiently move materials in warehouses, factories, and outdoor environments.

What is the lifting capacity of the 10t Rail-Mounted Gantry Crane?

The crane has a lifting capacity of 10 tons, making it suitable for lifting and moving medium-weight materials such as construction materials, containers, and equipment across rail systems.

Where can the 10t Rail-Mounted Gantry Crane be used?

This crane is ideal for industrial applications, including material handling in factories, warehouses, container yards, and construction sites. It is designed for use in environments where materials need to be transported over fixed tracks.

What are the key benefits of the 10t Rail-Mounted Gantry Crane?

Benefits include increased operational efficiency, reduced labor costs, and enhanced safety. The rail-mounted design ensures precise movement along the tracks, improving material handling and reducing downtime.

How does the rail-mounted design improve crane operation?

The rail-mounted system provides stable, guided movement, allowing the crane to transport heavy loads over long distances without drifting. This design ensures accurate positioning and enhances safety in material handling tasks.

What maintenance is required for the 10t Rail-Mounted Gantry Crane?

Regular maintenance includes checking the crane's mechanical components, inspecting the rails, and lubricating moving parts. Routine inspections of the lifting and control systems ensure smooth, efficient operation and long-term reliability.
