Overview:
As the useful movement, lifting and transportation tool, the 5 ton gantry crane can be found in many workplace at indoor and outdoor service. The 5t gantry crane can be divided into many different types, including single girder, double girder, semi-gantry and portable gantry crane 5 ton.
5 ton Gantry Crane Customization:
By main beam: single main beam, double main beam
By Picking device: hook, grab, electromagnetic sucker
By Structure: truss, box beam, tube beam, hybrid structure
By Foot structure: L-type C single girder gantry cranes and splayed, O-shaped, half-door double beam gantry cranes
We provide permanent or temporary lifting solutions according to your usage and cost considerations. Our gantry cranes can be used for indoor or outdoor work areas, with fixed or adjustable height and span. For mobile gantry cranes, different wheels are available to suit your specific application.
Minimal maintenance. Our high quality 5 ton gantry crane, which requires almost no maintenance, can help you save a lot of maintenance cost and time.
You can send your requirements to our professional 5 ton gantry crane engineer, we will quickly and clearly provide you with 5 ton gantry crane design for free.
Features

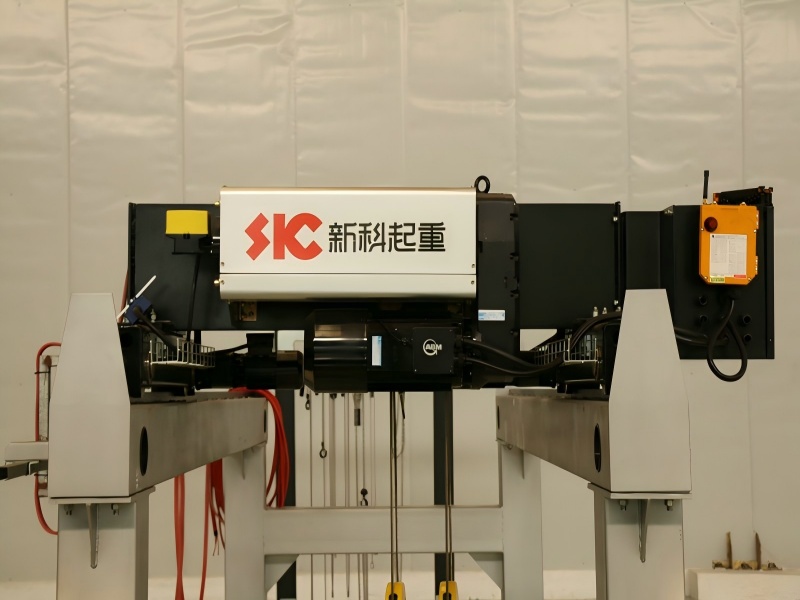

● Reducer
Reducer maintenance-free design, gear material for the chromium-molybdenum nickel alloy, anti-friction bearings, gear grinding, tooth surface hardening, grinding, to achieve 6-level accuracy, permanent lubrication, completely sealed without refueling, low noise helical gear drive.
● Lift brake
Double disc lifting control system, electromagnetic self-adjusting brake, brake pad life: no less than 1 million times of normal use, no less than 6000 times of emergency braking, automatic compensation of wear of brake pads, normally closed design, power failure Lifting mechanism is in braking state to ensure safety, environmental protection brake friction discs are dust-proof, asbestos-free, with high safety and reliability, large brake friction contact area, adjustable braking torque and good heat dissipation performance.
● Driver's room
Humanized design, large beveled observation window, and 360-degree rotation of the seat reduce the driver's labor intensity and can accurately observe the state of the lifted item during work.
Specification
| Capacity | 5000kg |
| Span | 10.5m |
| Lifting Height | 10m |
| Lifting Speed | 0-5m/min |
| Crane Class | A5 |
| CT Speed | 0-20m/min |
| LT Speed | 0-32m/min |
| Lifting Motor | 4.5kw |
CASE
Discover how our 5‑Ton Workshop Gantry Crane enhances efficiency in compact spaces with its customizable structure, low‑maintenance design, and reliable performance. Ideal for both indoor and outdoor lifting, it consistently delivers safe, precise material handling.
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a QuoteFAQs
Sinoko offers multiple styles—including single girder, double girder, semi‑gantry, portable gantry cranes—with customizable beams, hoist types (hook, grab, electromagnetic), and leg configurations.
Yes. The 5‑ton gantry crane is suitable for both indoor and outdoor use, offering flexible operation across workshop floors, yards, or construction sites.
Capacity is 5,000 kg, with a span of roughly 10.5 m, lifting height up to 10 m, lifting speed of 0–5 m/min, and crane travelling speeds (CT: 0–20 m/min; LT: 0–32 m/min). The hoisting motor is 4.5 kW.
Maintenance is minimal. It features a sealed, permanently lubricated reducer with hardened gears, and a long-life electromagnetic brake system—both engineered for durability and low upkeep.
The crane includes an electromagnetic self‑adjusting brake (lasting over 1 million cycles), sealed reducer, and robust structural design, all contributing to high reliability and safe operation.
Absolutely. You can customize aspects such as beam structure (truss, box, tube), picking devices (hook, magnet, grab), leg styles (L-type, O-shaped, etc.), and mobility options. Free design support is available from Sinoko’s engineers.
