Overview:
Main beam The main beam employs bias-rail box-type structure and connects with end beam by high-strength bolt ensuring easy transportation, making crane run steadily. |
|
| European Type Hoist The hoist trolley adopt Europe three-in-one drive form, the harden gear face reducer has good performances in compact structure, low noise, no oil leakage and long service life. The hoist cross travelling and lifting are all by VVVF control. You can choose SINOKO CRANE design hoist and the original SWF brand hoist for your VVVF Control Roof Mobile Crane. |
End beam End beam is made of rectangular steel-pipe or steel plate by welding, the finished end beam get once positioning processed on numeral control machine in order to ensure dimension accuracy. |
|
| Electric control cabinet |
Features
Compact Design: The Single Beam EOT Crane features a compact design, making it suitable for facilities with limited space. It maximizes the available working area while providing efficient lifting capabilities.
Versatile Lifting: This crane is capable of lifting a wide range of loads, from medium to heavy weights. It is suitable for various materials, equipment, and products used in manufacturing, assembly, and warehousing operations.
Smooth and Precise Operation: Equipped with a reliable control system, the Single Beam EOT Crane ensures smooth and precise load handling. The operator can control the hoisting, trolley movement, and bridge travel with ease and accuracy.
End Truck Assembly: The end trucks support the horizontal beam and provide smooth movement along the crane rails. They are equipped with wheels or drive mechanisms for easy and efficient travel.
Safety Features: Safety is a top priority in crane operations. The Single Beam EOT Crane includes safety features such as overload protection, emergency stop buttons, limit switches, and anti-collision systems, ensuring safe and secure lifting operations.
Specification
lifting capacity(T) | 1,2,3,5,10T | 16,20T | |||||
Span(M) | 7.5-31.5M | ||||||
Crane travelling mechanism | Travelling speed(m/min) | 20/30 | 20/30 | ||||
Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | ZDY131S-4 | ZDY112L1-4 | |
Power(kw) | 2/0.8 | 2/1.5 | 1.5/2 | 2.2/2 | 2.2/2 | ||
Rotation (m/min) | 1380 | 1380 | |||||
Lifting mechanism | Electric hoist model | CD1/MD1 | MD1/HC | ||||
(electric hoist)&electric hoist travelling mechanism | Lifting speed (m/min) | 8,8/0.8 7,7/0.7 | 3.5 3.5/0.35 | ||||
Lifting height (m) | 6 ,9 ,12, 18, 24, 30 | 12,18,24,30 | |||||
Travelling speed (m/min) | 20(30) | 20(30) | |||||
Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | |||||
Work duty | A3-A5 | ||||||
Power supply | 380V 50HZ three phase | ||||||
Wheel diameter | 270mm | 370mm | |||||
Treadof trail | 37-70mm | 37-70mm | |||||
At Sinokocranes, we specialize in providing high-quality and innovative lifting solutions. Our Single Beam EOT Crane is designed to meet the demanding requirements of various industries. Choose Sinokocranes for superior performance, durability, and excellent customer service.
Optimize your material handling with the reliable Single Beam EOT Crane. Experience efficient lifting, compact design, and precise operation. Contact us today to learn more about this crane and how it can enhance your operations!
CASE

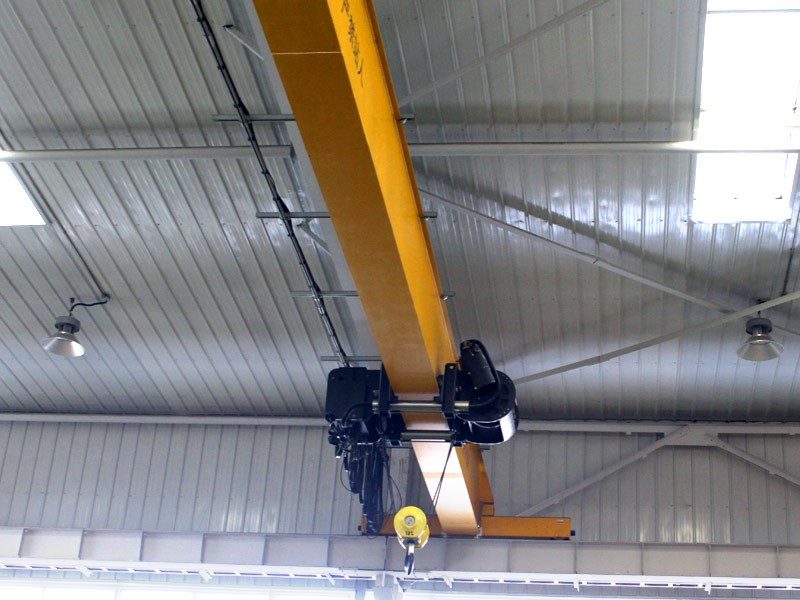

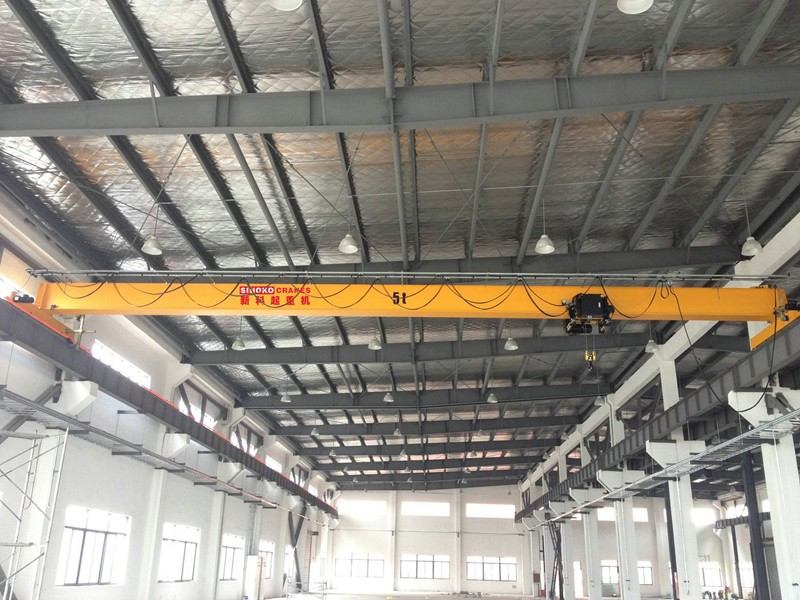

The VVVF Control Single Beam EOT Crane by Sinoko Crane is designed for efficient, smooth, and precise lifting operations. With advanced variable frequency drive technology, it ensures enhanced performance and energy savings for a wide range of industrial applications.
32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a Quote
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a QuoteFAQs
It’s an overhead crane equipped with a Variable Voltage Variable Frequency (VVVF) drive for precise control and energy efficiency.
It is ideal for use in industries like manufacturing, construction, logistics, and warehousing.
The VVVF control system offers smooth operation, energy efficiency, reduced maintenance, and improved overall performance.
Generally the crane delivery time is 20 to 40 working days, electric hoist lead time is 15 working days, jib crane is about 20 working days.The delivery time will be longer if the product is customized according to special requirements.
The crane can be customized to handle various load capacities depending on your lifting needs.
Yes, Sinoko’s cranes are designed for use in challenging environments like factories, workshops, and outdoor sites.
