Overview:
Workshop crane is a sort of efficient and safe lifting equipment designed for parts storage, loading and unloading materials and workstation management. Workshop cranes play a crucial role in a modern pulp and paper plant.
Workshop crane type: workshop jib cranes, portable gantry cranes, workshop overhead crane,freestanding bridge cranes,Depending on your facility,these options are ideal for many workshop environments.
Workshop jib cranes is a new generation of light hoisting equipment made for modern production, which is suitable for high-reliability electric chain hoistsSinoko jib cranes are suitable for almost any kind of workstation.
Portable gantry cranes is manufactured for lifting equipment, loading and unloading of the warehouse, maintaining heavy-duty equipment and transporting materials, applicable for small and medium factory.The best advantage of the crane is Omni-directional movability, fast to assembly, small volume, can be moved to another are only with a minibar.

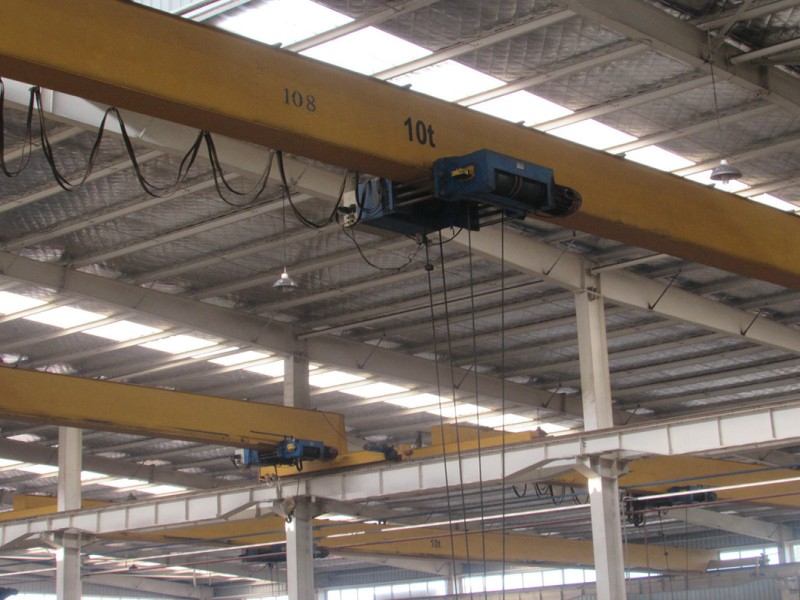

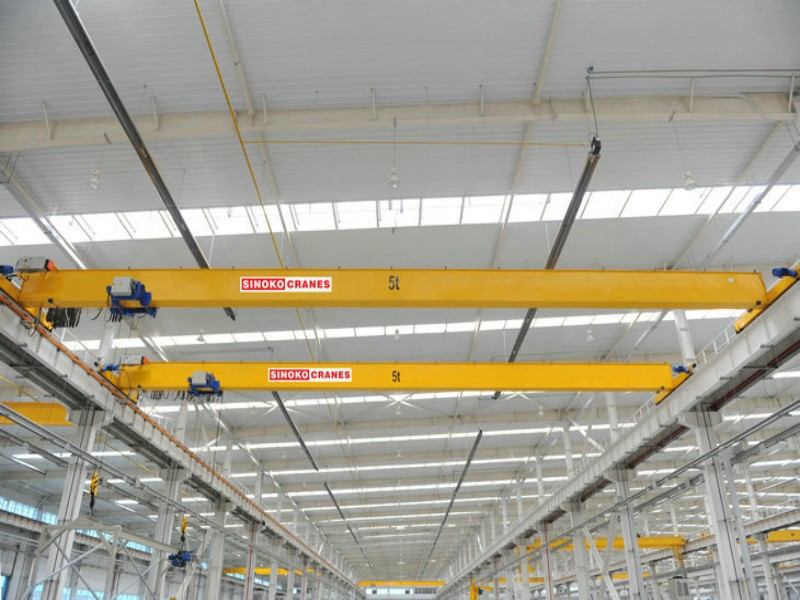

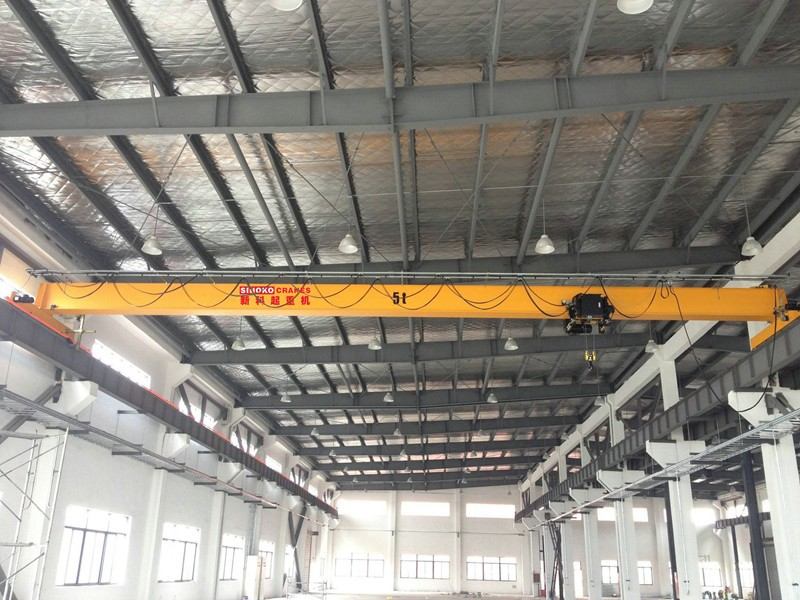

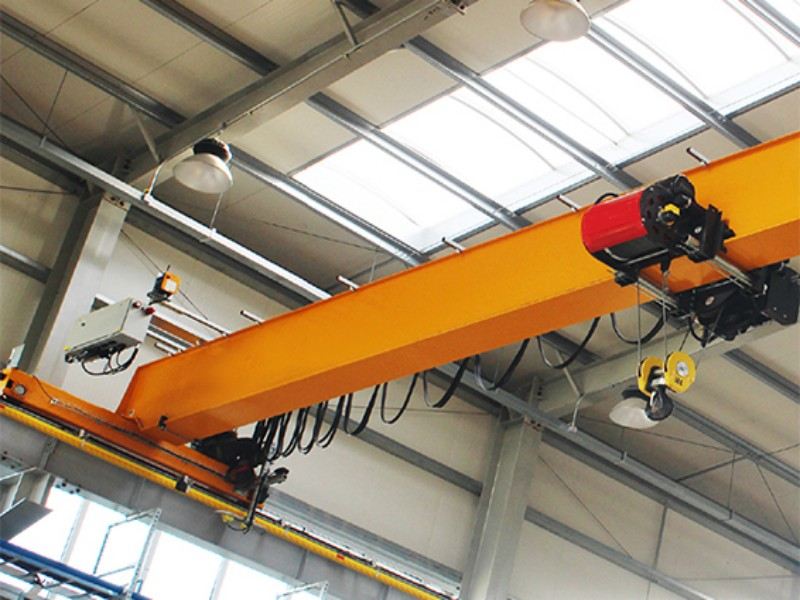

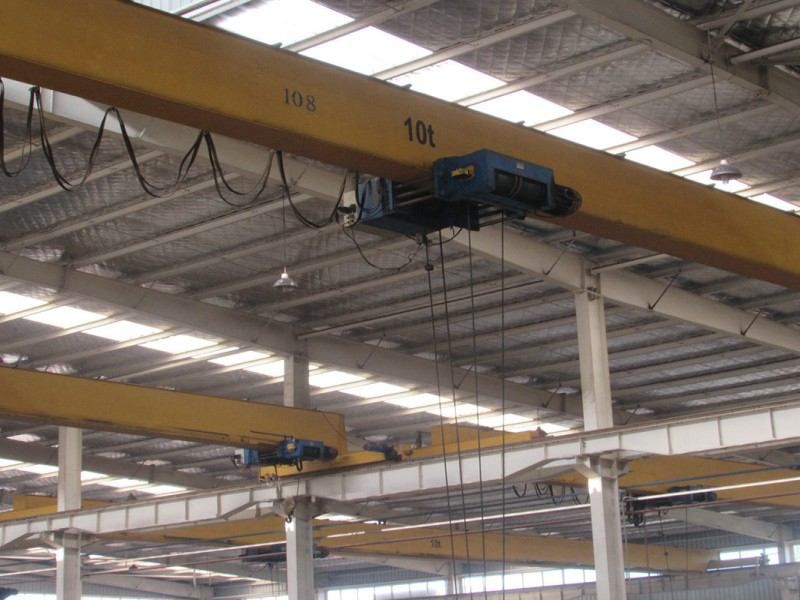

Workshop overhead crane is an bridge crane designed and manufactured to satisfy common industrial load handling requirements safely and reliably.
Freestanding bridge crane can be flexible manual, semi-automatic or automatic operation according to the working conditions. Sinokocrane make it free standing crane modular design, the standard profiles are bolted together, easy to installation & transportation.
Features
Light Self-Weight
FEM standard material handling overhead crane with light-weight construction bridge, highly and strong resistant fatigue ability, high precision assembly, easy transportation and installation. The whole crane height, weight, wheel pressure are all about 20% lower than traditional cranes, crane traveling limit size reduction, increased its operating area, effectively saving floor space and investment cost.
Modular design
FEM standard material handling overhead crane adopts modular design of the components to form a broad product portfolio. Use detachable connection between modules for easy installation and transportation. Standard modular production to ensure the stability of product quality, shorten lead times.
Advanced manufacturing technology
Steel shot blasting pretreatment, surface quality reach level Sa2.5. Web entire cutting by CNC cutting, to ensure supply curve smooth and accuracy. Seam using submerged arc welding, ultrasound and X-ray nondestructive testing.
To buy a workshop crane perfectly met your workshops requirements, you must have a clear mind in what kinds of specific workshop crane specifications you need for your industry. The main specification of workshop crane is as follows for your reference.
Specification
Workshop overhead crane specification:
| Capacity(t) | Span(m) | Lifting Height(m) | Working Class | Lifting Speed (m/min) | Cross Traveling Speed(m/min) |
1 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 2 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 3.2 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 5 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 10 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
| 12.5 | 7.5-22.5 | 6/9/12 | FEM2M | 5/0.8 | 2-20(VFD) |
Workshop jib crane specification:
| Load capacity | 0.5 to 10 tons |
| Arm Length | 3 m 12 m |
| Rotation angle | 360° |
| Work duty | A3 |
Portable gantry cranesspecification:
| Load capacity | 0.25 to 10 tons |
| Span | 2 m 12 m |
| Lifting speed | 2.1 to 11.5 m/min |
| Hoist running speed | 27 to 40 m/min |
| Crane running speed | 42 to 75 m/min |
| Work duty | A4, A5, A6, A7 |
Freestanding bridge crane specification
| Lifting Capacity | 50 kg to 2000 kg |
| Lifting Height | 1 m to 10 m |
| Span | 1 m to 9 m |
| Crane Control Options | Push Button Pendants |
| Hoist Power | electric, manual |
| Hoist Running Power | manual |
Our workshop cranes are flexible, multifunctional tools designed specifically for a factory environment. Working closely with machine builders, pulp-and-paper experts and engineering companies, we provide you with high-quality cranes and lifting systems built to perform and last.
CASE
Explore the Sinoko FEM Standard Material Handling Overhead Crane, engineered for optimal efficiency and safety in heavy-duty material handling. Designed to meet European standards, it delivers superior performance, durability, and precision for various industrial applications.
32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a Quote
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a QuoteFAQs
The crane is designed to handle loads up to 50 tons, making it suitable for heavy-duty material handling.
Yes, it adheres to the latest FEM (European Federation of Materials Handling) standards for safety and performance.
Yes, Sinoko offers customizable configurations to meet your specific operational requirements.
Regular inspections and lubrication are recommended for optimal performance. Sinoko provides a maintenance guide with each crane.
The crane is built for long-term use with a lifespan of 15+ years when properly maintained.
Yes, Sinoko offers installation and commissioning services, ensuring your crane is set up efficiently and safely.
