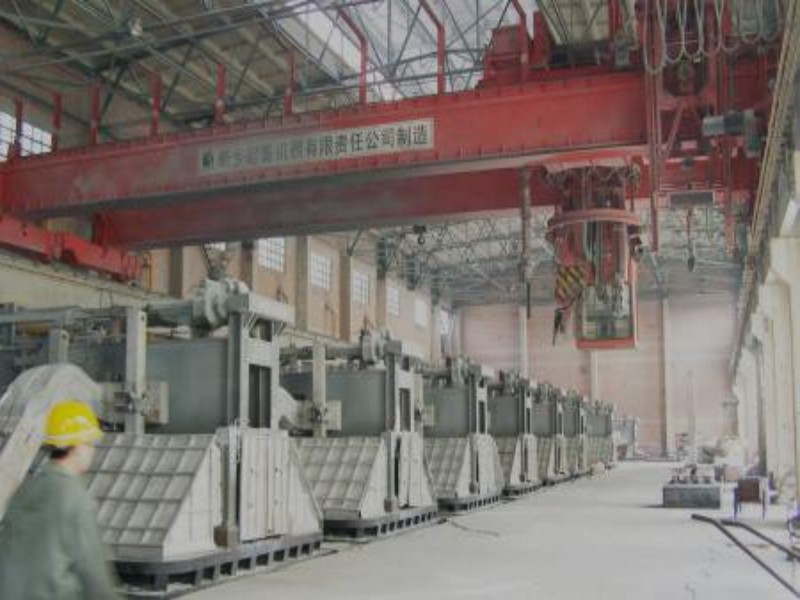

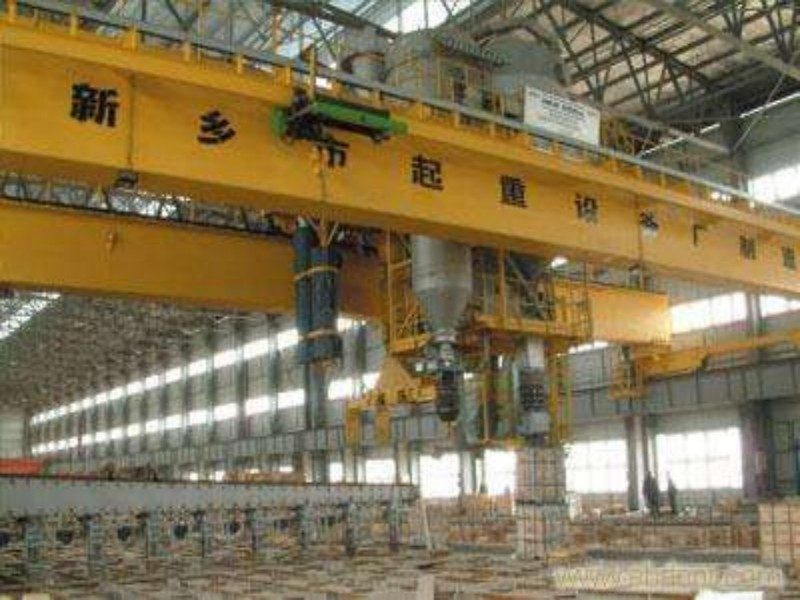

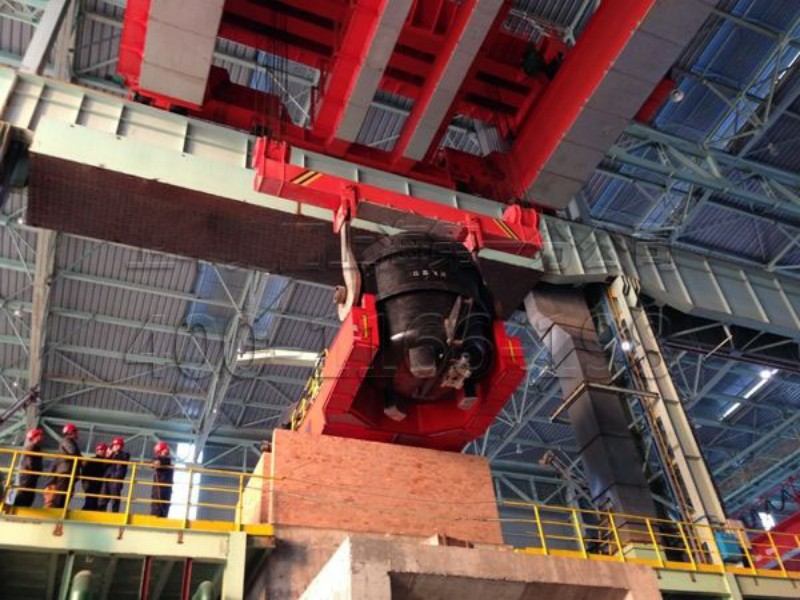

Forklift Type Overhead Traveling Stacking Crane

Forklift type overhead traveling stacking crane is a type of material handling equipment that is designed to efficiently move and stack heavy loads in a warehouse or manufacturing facility. This type of crane is typically used in applications where space is limited and vertical storage is required.

The forklift type overhead stacker crane has the both structural characteristics of a crane and a forklift.

Contact Now

Overview:

The bridge type stacker crane has the double structural characteristics of a crane and a forklift, and like a crane, it has a bridge frame and a rotary trolley. The bridge runs above the warehouse and the slewing trolley runs on the bridge. At the same time, the bridge-type stacker crane has the structural features of a forklift, namely, a fixed or retractable column, and a fork or other device for picking up the column. There must be a certain space between the shelf and the warehouse roof to ensure the normal operation of the bridge. Columns can be turned to ensure the flexibility of the work. The slewing trolley can run back and forth as needed, so the bridge stacker can serve multiple lanes. The stacking and picking of the bridge stacker is achieved by the picking device running on the column. Because of the height of the column, the working height of the bridge stacker cannot be too high.

The bridge stacker is mainly suitable for warehouses with a medium span of less than 12 meters. The width of the roadway is large, which is suitable for the handling and stacking of heavy and bulky materials.

(1) Rated lifting weight [2]

The rated lifting capacity is the sum of the weight of the largest material and the weight of the retrieval device, which can be allowed by the safety operation under the normal operating conditions of the bridge type stacking crane, in kilograms or tons. When selecting a bridge stacker, the rated capacity must be taken into consideration because the rated lifting weight is too small to meet the requirements of loading and unloading operations. If the stacking crane is too large, it will result in a waste of infrastructure investment.

(2) Maximum lifting height

The maximum lifting height refers to the vertical distance from the upper surface of the fork horizontal section to the ground when the goods are lifted to the highest position under the rated lifting weight, and the unit is meters. The height of the warehouse determines the maximum lifting height of the selected bridge stacker.

(3) Working speed

The working speed of the bridge stacker mainly refers to the lifting speed, the rotation speed, the running speed of the trolley and the running speed of the whole vehicle, in meters/second or meters/minute. Lifting speed refers to the speed at which the device or item is ascended (or descended), and is divided into fast, slow, and fast speeds. The speed of rotation refers to the speed at which the gyrocar rotates. The heavier the forked goods, the slower the speed of rotation. The running speed of the trolley refers to the speed at which the trolley slides on the bridge. The vehicle running speed refers to the operating speed of the bridge on the track.

(4) Deflection of stacker fork

The lower deflection of the stacker fork is the distance from the foremost end of the fork when the fork is raised to the maximum height under the rated lifting weight. This parameter is very important, it reflects the ability of the fork to resist deformation. Too much deflection means that the fork material is too soft and can easily slip out of the fork when picking the goods.

(5) Production efficiency

Productivity refers to the total mass of the stacking or unstacking cargo per hour, in tonnes per hour, of the bridge stacker under the specified operating conditions. The production efficiency of the stacker crane depends not only on the performance parameters of the equipment itself, but also on the type of cargo, working conditions, and operational proficiency. To increase the production efficiency of the stacker, it is necessary to increase the weight, increase the number of work cycles per unit of time, promote the organization of advanced production operations, and improve the proficiency of operations.

Features

1. Capacity: The forklift type overhead traveling stacking crane is avlable in a range of capacities, from light-duty models that can lift a few hundred pounds to heavy-duty models that can lift several tons.

2. Lifting Height: The crane can be designed to lift loads to a variety of heights, depending on the specific needs of the application. This makes it ideal for use in facilities with limited vertical space.

3. Control System: The crane is equipped with a user-friendly control system that allows the operator to easily maneuver the crane and stack loads with precision.

4. Safety Features: The forklift type overhead traveling stacking crane is designed with safety in mind. It features a range of safety features, including overload protection, emergency stop buttons, and safety interlocks.

5. Forklift Compatibility: The crane is designed to work in conjunction with a forklift, allowing for easy loading and unloading of materials. This makes it a versatile and efficient material handling solution.

6. Customization Options: The crane can be customized to meet the specific needs of the application. This includes options such as variable speed controls, remote operation, and specialized lifting attachments.

Specification

Capacity	500 kg to 10,000 kg
Lifting Height	3 meters to 15 meters
Control System	Radio remote control or pendant control
Safety Features	Overload protection, emergency stop buttons, safety interlocks, limit switches
Forklift Compatibility	Compatible with a range of forklifts
Customization Options	Variable speed controls, remote operation, specialized lifting attachments, customized pnt colors
