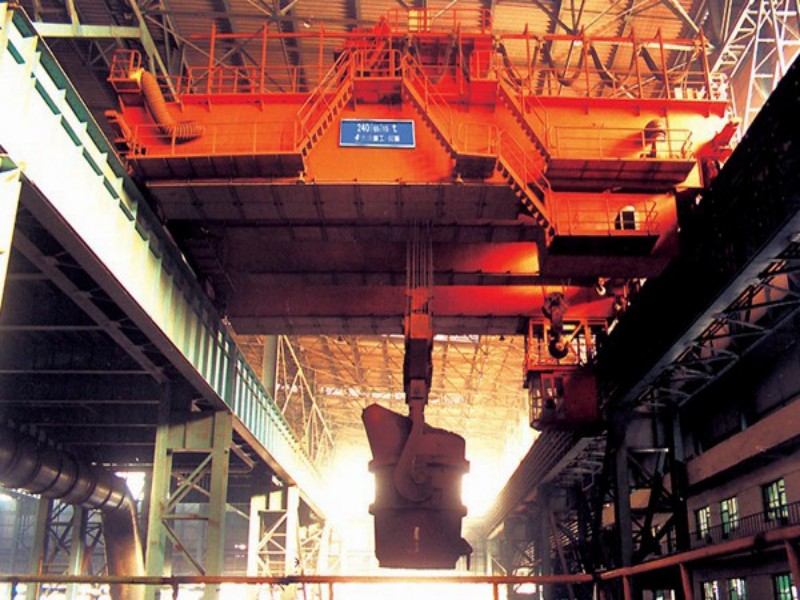

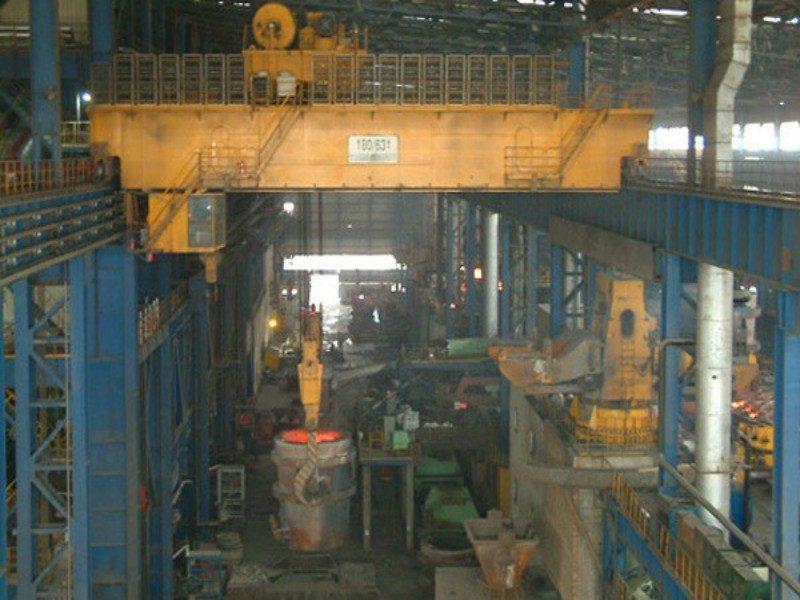

Metallurgy Ladle Overhead Crane

Metallurgy Ladle Overhead Crane

Metallurgical crane is rely on moving along the workshop orbital direction

Overview:

Metallurgical crane is rely on moving along the workshop orbital direction, car lateral movement and hook lifting movement for work, suitable for metal smelting workshop, a special crane for lifting the molten metal and molten metal forging clasps. Generally metallurgical crane application to- 10 ℃ to + 50 ℃ environment temperature, under the temperature of 40 ℃ relative humidity is not more than 50%, board of radiation temperature does not exceed 300 ℃. Level of job class: A7, A8 is used in the relatively busy metallurgy foundry.

Features

Application:

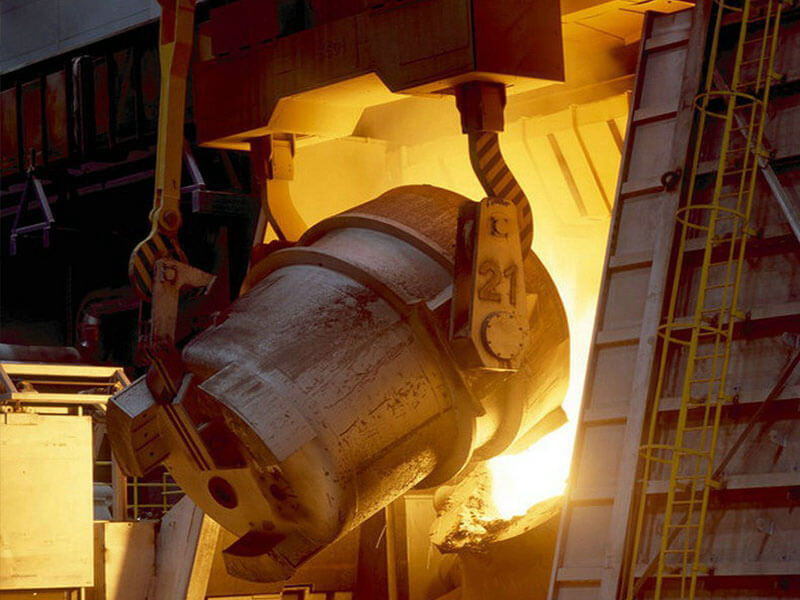

Foundry crane is one of the main equipments in the continuous casting technology of steelmaking. It is mainly used for pouring melted IR on from additive bay of converter to converter; Lifting molten steel from refining bay to refining furnace or lifting molten steel from molten steel bay to ladle turret of continuous Casting machine.

Overall structure:
1. Two crane gider with two rail or four girder with four rail (for 125t above)
2. Modern cabin control with Air conditioner to aviod harsh environment
3. Heat resistance treatment for crane main body
4. Variable travelling and hoisting speed to meet acurate work.
5. High working class to make full load and continuous work available.
6.  Safe, reliable, long-lasting and economical, and easy to be maintained.

Technical Functions:
1. The mechanisms can be speed governing ( 1: 10 or larger);
2. The lifting appliances are rotatable;
3. The spacing of portal hook is variable;
4. Limit and warning for over load;
5. Weighing and display of load, PLC control and failure detection, display, record and printing system;
6. Prevent collision between cranes of same span.


Specification


Capacity

t

5

10

16/3.2

20/5

32/5

50/10

74/20

Span

m

10.5~31.5

13.5~31.5

Max. Lifting Height

Main hook

m

16

16

16

12

16

12

22

Aux hook

18

14

18

16

24

Speed

Main hoist

m/min

15.5

10.4

10.7

9.8

7.8

7.8

6.1

Aux hook

14.6

15.5

15.5

10.4

9.7

Trolley travelling

37.2

43.8

44.6

44.6

42.4

39.3

33.8

Crane travelling

92.7

93.7

92.7

93.7

86.5

76

89

76

89

89

75.3

75.3

75

76.6

67.3

Motor

Main hoisting

Kw

15

22

37

45

55

75

90

Aux hoisting

11

15

15

22

37

Trolley travelling

1.5

2.2

3.7

3.7

7.5

11

15

Crane travelling

2× 5.5

2× 7.5

2× 5.5

2× 7.5

2× 7.5

2× 11

2× 7.5

2× 11

2× 11

2× 11

2× 15

2× 22

Power supply


3-phrase 50HZ 220V~480V according to your requirements

Working Environment



The temperature of working environment is -10~+60° C;


The relative humidity is no more than 50% when the temperature is +40° C;


Lifting Height

t

180/50

200/50

225/65

240/80

Working Grade

A7

Span

m

28.5

28

27

22

Lifting Height

Main Hook


27

26

32

25

Aux. Hook

m

29

26

34

27

Hoisting Speed

Main Hook

m/min

7.6

6

11

7

Auxiliary

10

10

11

9.6

Travelling Speed

Main Crab

40

41

41

35

Aux. Crab

38

37.6

39.5

38

Crane

80

73

84

80

Max Wheel Load

KN

525

530

550

545

Steel Track Recommend

QU120

Power Source

380V AC 3-Phase
