15 ton Overhead Crane

15 ton Overhead Crane

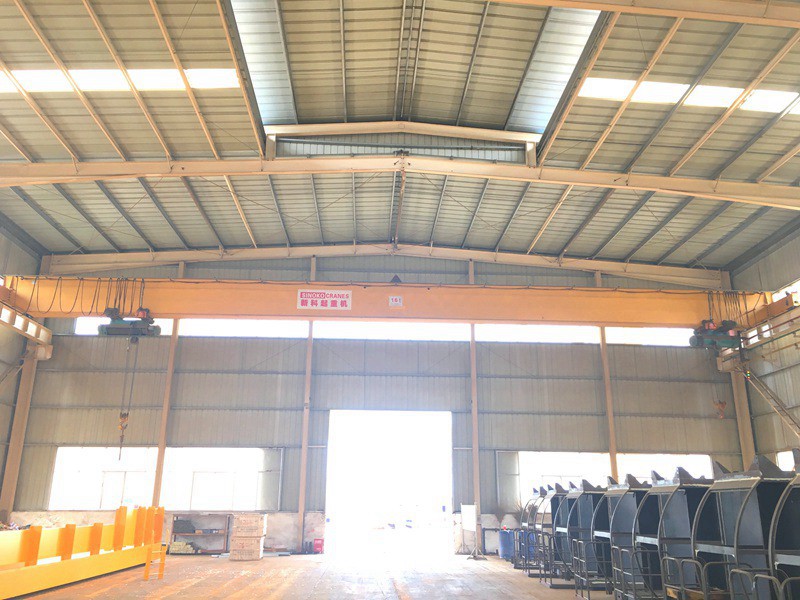

As a material handling equipment, the 15 ton overhead crane can be used for material lifting and transportation in different industries such as workshops and warehouses. Use reliable motors and accessories to ensure high quality and safe work.

Sinoko Crane is a professional crane manufacturer in China with 15 years of experience in the production of overhead cranes. At the same time, the 15-ton overhead cranes we provide can be customized according to special requirements, and can also be equipped with grabs, electric magnet and other devices to lift special materials;

Overview:

The 15ton overhead crane usually adopts single girder or double girder according to the customer's work situation,

One major difference between single beam and double beam models is price. The cost of producing a single girder crane is lower than that of a double girder due to the fact that the single girder has less material and takes less time to manufacture.


Double beams overhead crane can withstand greater work intensity. If you are not sure whether to choose double beams, you can send us your working time, and our engineers will design exclusive material handling equipment for you.

Brief Introduction of LDA 15 ton overhead crane

Model: LDA

Capacity: 15ton

Lift Height 3m to 30m

Span: Max. to 65m

Duty Class: A3, A4

Power Supply: 380V, 50Hz, 3-phase AC

220V, 6oHz, 3-phase AC

Advantages of LDA 15 ton overhead crane

1. Push button of control: the life can reach 200000 times.

2. Electrical adapt as Chint, SIMENS, or Schneider.

3. Motor Choose China best motor brand: Nanjing special motor.

4. Soft start motor make the traveling smoothly.

5. Brake from Jiaozuo brake factory, China best brand.

6.LYC bearings which is serve for the the Shenzhou spacecraft


Features

Safety Features of LDA 15 ton overhead crane

1. Emergency stop system

2. Limit Switch for Lifting

3. Limit Switch for Travelling

4. Overload protect device

5. High quality buffer

6. Current overload protect device

7. Voltage Lost protect device

Specification

CodeLDA
Lift Capacity15T
Span7.5~22.5M(Other on customerized)
Lift HeightCustomerized
CT Speed20/30m/min
Duty ClassificationA3
Dead weight2.54~6.05T
Max.wheel Load35.8~45KN
Min. wheel Load4.2~13.4KN
Lift Speed8m/min
LT Speed20/30m/min
Dia.(Drum)15mm
Model(Wire Rope)6*37+1
Width (Crane Rail Head)25a-45c
Motor ModelCone squirre-cage model
Lift Motor ModelZD141-4
Power(Lift Motor) 7.5KW
Rotation Speed (Lift Motor)1380r/min
Current(Lift Motor)18A
CT Motor ModelZDY121-4
Power (CT Motor)0.8KW
Rotation Speed(CT Motor)1380r/min
Current (CT Motor)2.4A
LT Motor ModelYSE802-4/YSE90L-4
Rotation Speed (LT Motor)1380r/min
Power (LT Motor)2*0.8/2*1.5KW
LT Motor ModelZDR100-4
Power (LT Motor)2*1.5KW
Power Source220V~480V, 50Hz/60Hz, AC
Control ModelCabin, remote control, pendent control with push button


FAQ

  1. Is your product customized?

Thanks for your question. Yes, because the working conditions are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
  1. What’s the information should I provide when inquiry?

Thanks for your question. The more information you provide the accurate solution we can prepare for you. The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
  1. How many operating methods for my selection?

Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, Pls no hesitate to contact with us.
  1. What’s the max lifting capacity of the crane?

Thanks for your question. The max Lifting capacity of our standard crane is up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
  1. The space of my workshop is limited; can the crane ok for mine?

Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consults our professional engineer.
  1. Can the crane work in hazardous environment?

Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
  1. Do your side can provide lift tools?

Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
