Overview:

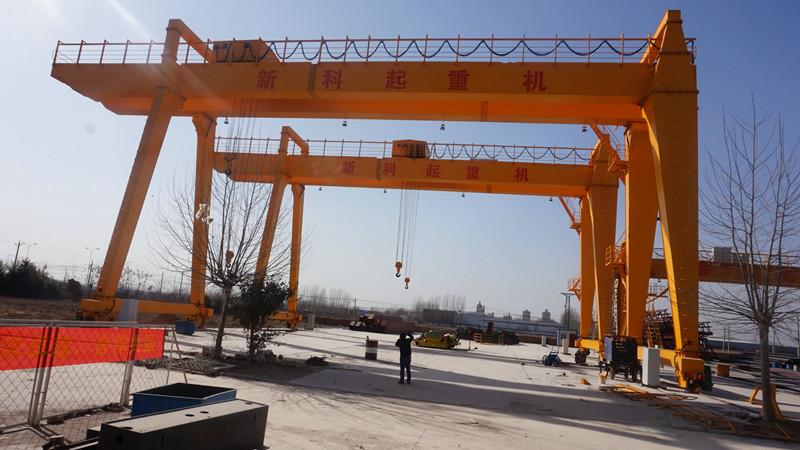

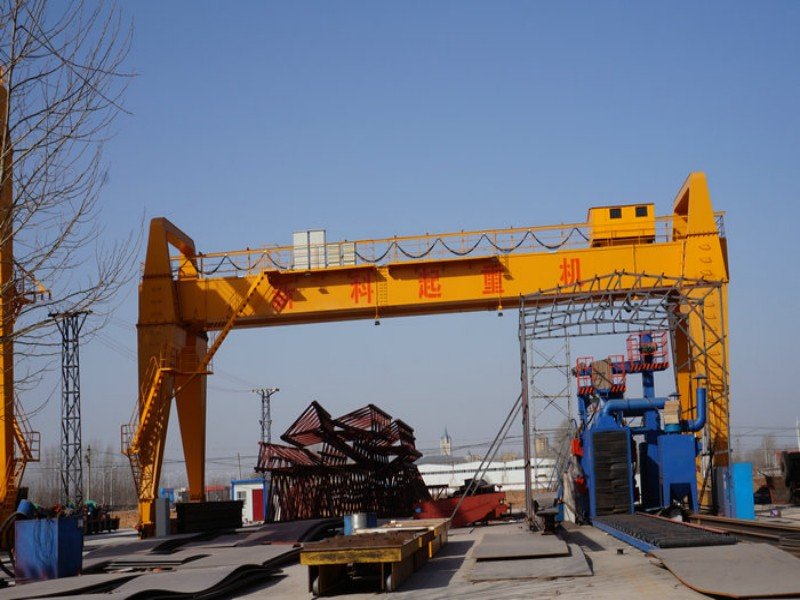

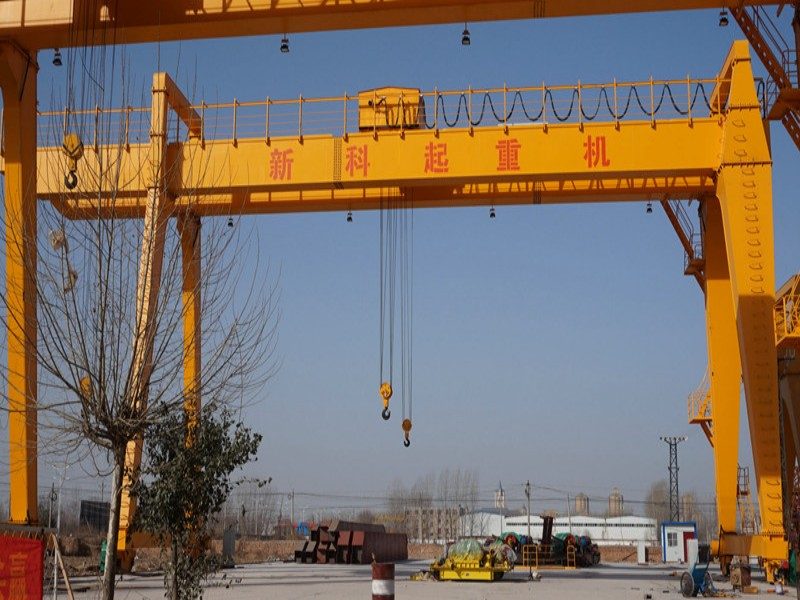

DIN Standard Motorized Gantry Cranes are suitable for loading and unloading portal cranes such as open storage, stockyards, railway freight stations, and port terminals. It can also be equipped with a variety of special hooks for a variety of special operations. DIN Standard Motorized Gantry Crane are made up of bridges, carts, trolleys, and electrical equipment. The bridge adopts the box type double beam welding structure. The cart driving mechanism adopts separate driving. All the mechanisms are operated in the control room, or the operation mode of the wireless remote controller is modified.
Features
1.Safe trolley line power supply
2.Phase loss protection
3.Lift, trolley, and cart are independently controlled and can be operated individually or simultaneously.
4.Anti-vibration contactor with crane
5.Electric control box anti-corrosion, protection grade to IP55
6.All connections using heavy-duty aviation plugs and sockets, sealed, plug firmly
7.The layout inside the control box is reasonable and easy to maintain
8.Plug connector is protected by plastic sleeve insulation
9.All cables have a line number for easy identification
10.The trolley's mobile power supply system uses a crane-specific PVC flat cable, with a withstand voltage rating of 450/750V.
11.The trolley's mobile power supply system consists of flat cables, galvanized slide rails, and small cable pulleys that slide smoothly
Selection rules and methods for DIN Standard Motorized Gantry Cranes;
First, DIN Standard Motorized Gantry Cranes comply with the relevant provisions of the universal gantry cranes GB/T14406-1993 and GB5905-86.
Under normal circumstances, the lifting weight is less than 50t and the span is within 35m. There is no special requirement for use, and a single girder type should be used. If it is required that the width of the door legs is large, the working speed is high, or heavy items or long and large pieces are often hoisted, double-girder gantry cranes should be selected.
Second, span and cantilever length
The span of a gantry crane is an important factor that affects the quality of the crane itself. In the selection, the span should be minimized on the premise of satisfying the conditions of equipment use and meeting the span series standards.
Third, the principle of wheel alignment
a) to meet the stability requirements of the gantry in the direction of the crane track;
b) The dimensions of the cargo must be able to pass through the leg flat steel frame smoothly;
c) Pay attention to make the distance between track B and span S in a certain proportion, generally take the track distance B = (1/4 - 1/6)S.
Fourth, the size of the gantry crane spacing
In the work, there should be a certain space size between the external dimensions of the gantry crane and the cargo of the yard and the passage of the transport vehicle to facilitate loading and unloading operations. When a typical transport vehicle is loaded or unloaded within a span, it should be kept at a distance of more than 0.7m from the door legs. When the spreader is not working, it should have a spacing of more than 0.5m from the transport vehicle, and when the goods pass the door legs, there should be a spacing of more than 0.5m.
Specification
| Mechanism Item | Result | |
| Lifting capacity （ton） | 30 | |
| Lifting height (m) | Main | 10-12 |
| Auxiliary | 10.72-13 | |
| Span (m) | 18-35 | |
| Working environment temperture (℃) | -20~40 | |
| Speed (m/min) | Lifting Speed (Main) | 5.9-9.3 |
| Lifting Speed (AuX) | 8.5-16.7 | |
| Trolley | 34-44.6 | |
| Cab | 34.5-47.1 | |
| Working system | A5 | |
| Power source | 3-Phase A C 50HZ 380V | |
CASE
Discover how the DIN Standard Motorized Gantry Crane can boost your material handling efficiency. Built to meet stringent standards, this crane offers precise, motorized lifting capabilities for various industrial applications. Learn how businesses are optimizing operations with this robust solution.

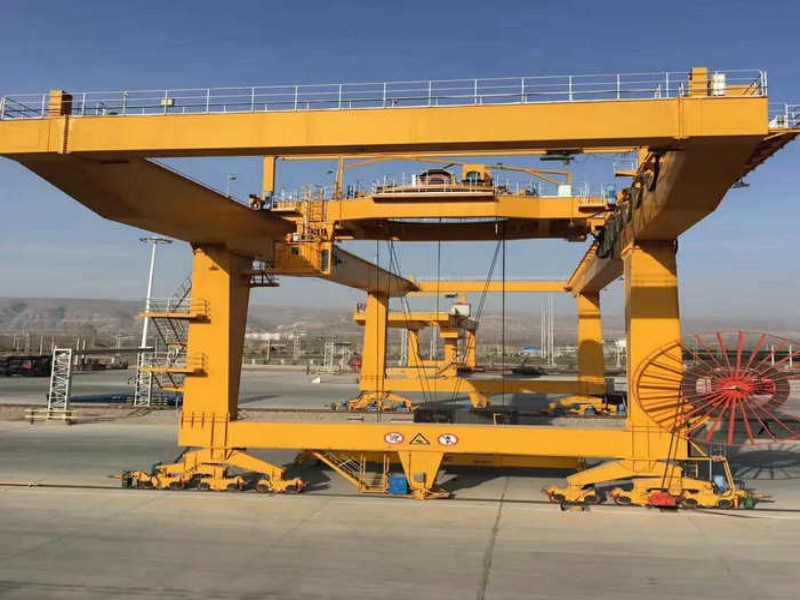

40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a QuoteFAQs
A DIN Standard Motorized Gantry Crane is a high-performance crane designed to meet the strict DIN (Deutsches Institut für Normung) standards. It offers reliable motorized lifting and moving capabilities, making it ideal for material handling in industrial environments.
Key features include motorized movement, heavy-duty construction, and adherence to DIN standards, ensuring safety, efficiency, and precision. The crane is designed to handle a variety of loads, from light to heavy-duty applications.
These cranes are widely used in industries such as manufacturing, logistics, warehouses, and ports. They are particularly suitable for material handling in factories, construction sites, and assembly lines, where reliable lifting and transportation are needed.
The lifting capacity of this crane can vary depending on the model, typically ranging from 5 tons to 50 tons or more. It is designed to handle a broad range of materials, from light components to heavy equipment.
The motorized system allows for precise and efficient movement, reducing human labor and increasing safety. It enhances the crane's operational speed and reduces downtime, making it ideal for high-volume, continuous operations.
Regular maintenance includes inspecting the motor, checking the lifting mechanism, and ensuring proper lubrication of moving parts. Routine checks on the electrical and safety systems ensure the crane operates smoothly and safely over time.
