Overview:

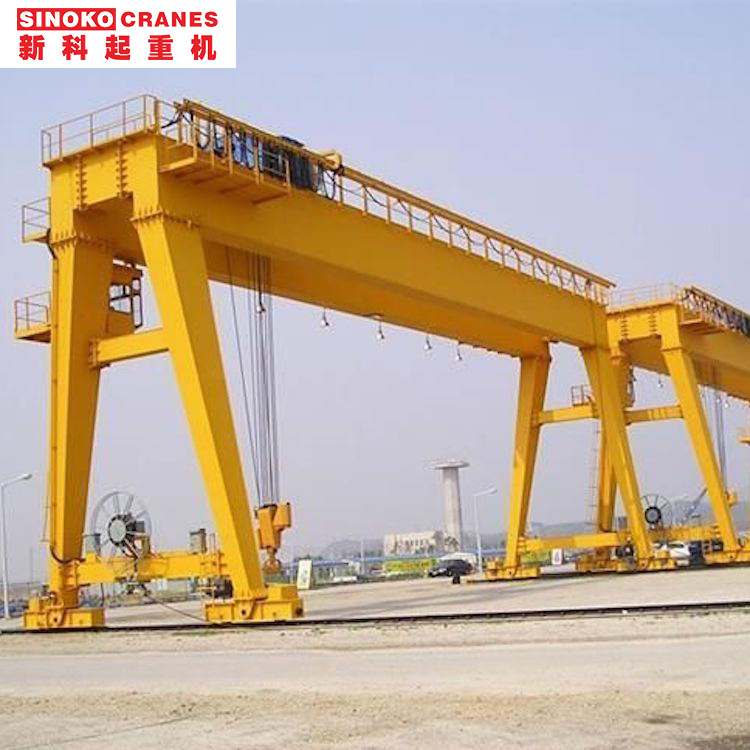

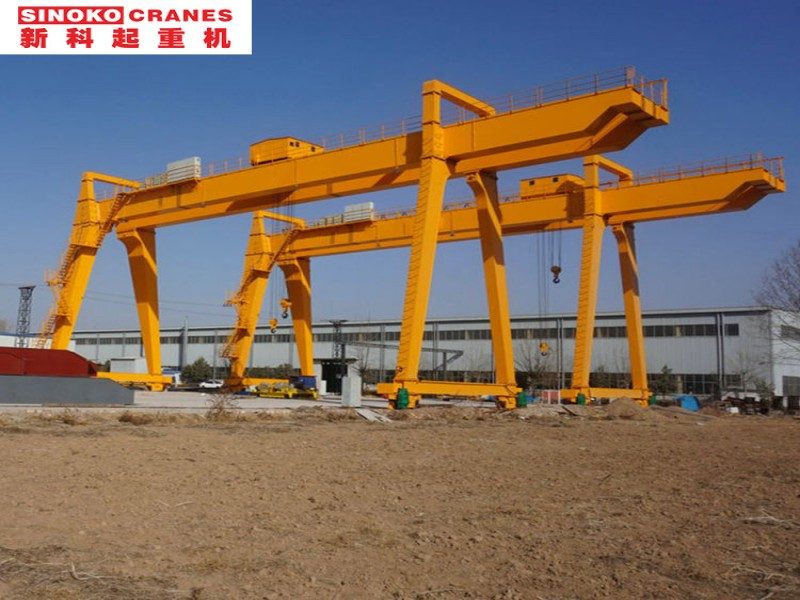

Gantry crane (also known as goliath crane) is supported on the ground track by two legs of the bridge. In the structure by the door frame, cart operation mechanism, lifting trolley and electrical components. Gantry crane door frame part of the bridge (including the main beam and end beam), legs, beams and other parts of the lower beam. In order to expand the scope of crane operation, the main beam can extend beyond the supporting legs to one side or both sides to form cantilever.
Features

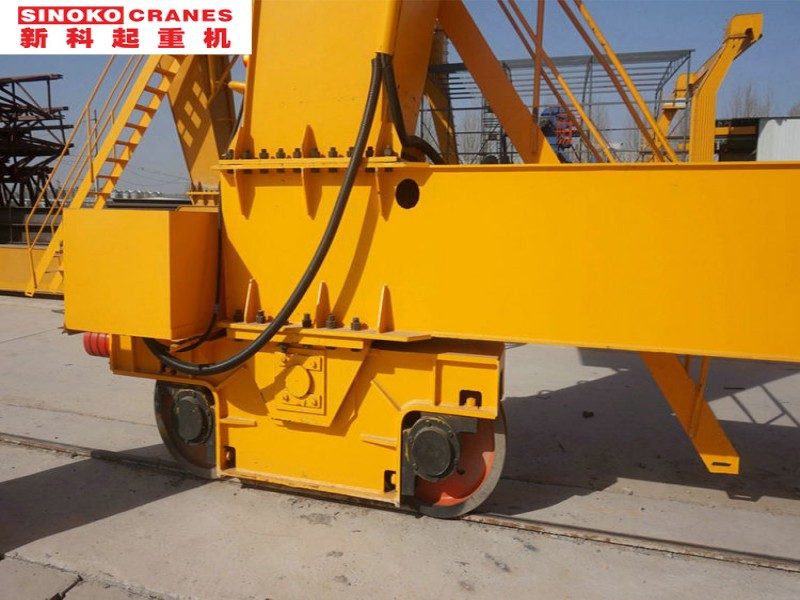

1.Double box beam with steel legs moving through the ground beam as cranetravelling system
2.The camber of main beam will be designed as Span*1-1.4/1000.
3.Steel Material: Q235 or Q345
4.Shot-blasting Sa2.5 for main girder and supporting beam
5.Epoxy zinc rich high quality painting.
6.Electrification and outfitting
7.Brand: CHINT, SIEMENS ,Schneider
8.Conductor power supply: Cable Reel or bus bar.
9.Frequency conversion, double speed, single speed, and all hoist and crane movements are independent and can be run simultaneously different design due to meet crane applications
10.Whole layout provides good protection against special working environment. Such as gas workshop, plants, warehouses etc.
Specification
| Loading capacity | 5 ~ 800t |
| Lifting height | 3 ~ 30 m or customized |
| Lifting speed | Single speed: 3 ~ 8 m/min; or customized Variable frequency speed: 1 ~ 20 m/min; or customized |
| Span | 5~35 m |
| Lifting mechanism | Winch trolley or hoist trolley |
| Working class | A3 ~ A7 |
| Working temperature | -20 ~ +40 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-24 / 36V |
| Motor protection class | IP54 IP55 IP65 |
| Safety device | Buffer,current overload protection,overload device,power failure protection |
| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color | Yellow,Red or Customzied |
CASE
Explore Sinoko Crane's MG Box Type Heavy Duty Gantry Cranes, designed for high-performance lifting. With capacities ranging from 50 to 400 tons, these cranes offer exceptional durability and efficiency for heavy-duty industrial applications.
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a Quote
Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility
The 3 ton portable small gantry crane specially designed by Sinokocranes for Thai customers has significantly reduced the production costs for the customers and enhanced their production efficiency.
Learn More Get a QuoteFAQs
The crane has a lifting capacity from 50 tons to 400 tons, suitable for heavy-duty industrial use.
It's ideal for industries like construction, shipbuilding, and heavy machinery manufacturing.
Features include high strength, excellent stability, and energy-efficient design.
Visit the product page and request a quote directly or contact our sales team for more details.
The span can be customized based on specific operational requirements.
Yes, it is designed for both indoor and outdoor environments, with weather-resistant components.
