Overview:

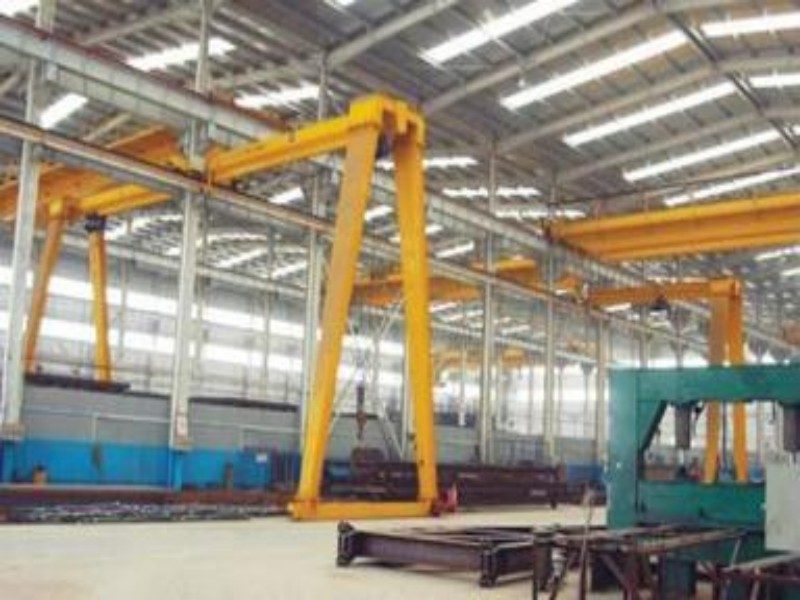

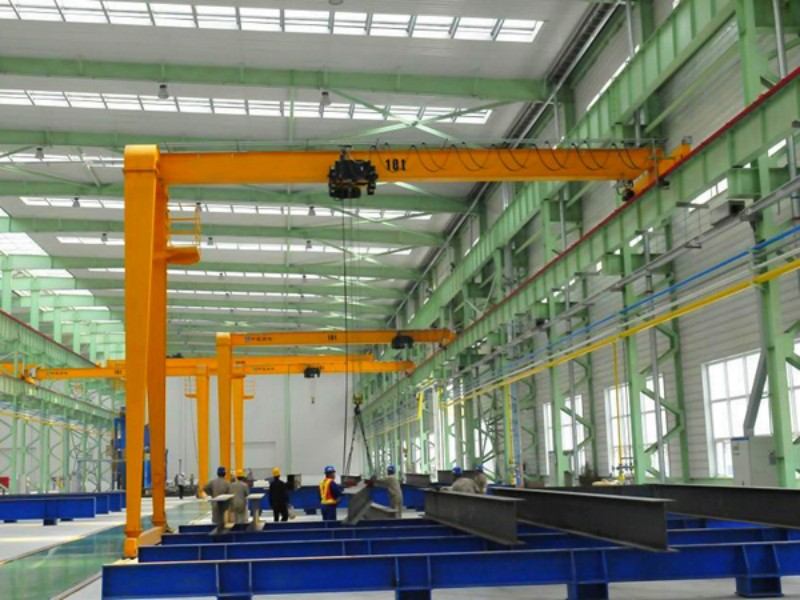

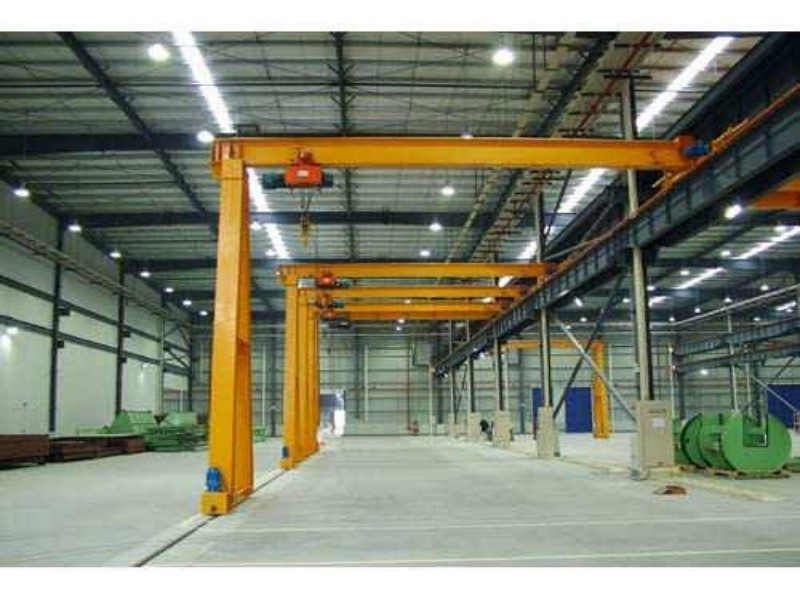

The semi portal crane has only one leg. The other end of the crane is like a bridge crane and is placed on the traveling beam of the plant. The track is commonly known as the sky track, and the running track on the ground is called the ground track. The semi-gantry crane hoisting mechanism, trolley running mechanism and bridge structure are basically same as the bridge crane.
Features
(1)Main beam optimized design, small wheel pressure, light weight
(2)Semi-gantry cranes’ end carriage adopts torsion box structure
(3)Epoxy zinc-rich paint, two bottoms and two sides, long life, beautiful appearance, good gloss
(4)The connection between the main beam and the end carriage meets the mechanical (5)Tolerances and reduces the wear to a small degree
(6)Lifting mechanism has a compact structure, which makes the hook stroke more reasonable and the working range is wider.
(7)Safe trolley line power supply, configure phase loss protection
(8)Use a highly flexible flat cable to power the car with ground protection
(9)The flashlight door can be connected with the trolley or can be freely moved on the main beam alone
(10)Three-in-one drive mechanism for large and small cars, variable frequency stepless speed regulation, smooth brake release
(11)All electrical connections use heavy-duty aviation plugs and sockets, sealed and plugged firmly.
Specification
| Lifting capacity | t | 10-50 | |
| Span | m | 18-35 | |
| Lifting height | Main Hook | m | 10,12 |
| Auxiliary Hook | m | 10.6, 12.6, 10.7,12.7,11.1,13.1 | |
| Working class | A5 | ||
| Speed | Main | m/min | 5.9-9.8 |
| Auxiliary | m/min | 9.8-17.9 | |
| Trolley travelling | m/min | 38.2-43.8 | |
| Crane travelling | m/min | 30-37.5 | |
| Motor | Main | KW | YZR160L-6/15 |
| Auxiliary | YZR160L-6/11 | ||
| Trolley travelling | YZR160L-6/15 | ||
| Crane travelling | YZR160M2-6/2X3.7 | ||
| Max Wheel Load | KN | 150-475 | |
| Steel Track Recommend | P38、P43、P50 | ||
| Power source | 380V 50HZ | ||
As a leading crane manufacturer, Sinoko semi gantry cranes are highly efficient and reliable lifting machines, designed with flexibility and customizable features. They are used in a variety of industries, including shipbuilding, automotive manufacturing, heavy machinery manufacturing, warehousing and logistics, and oil and gas. Customers have consistently praised the performance and reliability of these cranes.
CASE
The 10T Soft Start Motor-Driven Semi-Gantry Crane from Sinoko Crane provides smooth and reliable lifting performance. With soft start technology, it ensures minimal wear on components, making it ideal for precise and efficient lifting operations in various industrial applications.
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a Quote
Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility
The 3 ton portable small gantry crane specially designed by Sinokocranes for Thai customers has significantly reduced the production costs for the customers and enhanced their production efficiency.
Learn More Get a QuoteFAQs
A Semi-Gantry Crane features a combination of fixed and rail-mounted support, allowing it to move along rails while providing stable lifting. It is ideal for environments with limited space or where only partial rail use is required.
The crane has a lifting capacity of 10 tons, making it suitable for medium to heavy-duty lifting tasks in industrial settings.
The Soft Start Motor minimizes the initial shock load and gradual acceleration, reducing wear on the crane components and providing smoother operation, enhancing the lifespan of the crane.
This crane is commonly used in manufacturing, warehouses, construction, and logistics industries, where precision and reliable lifting are essential.
Yes, the 10T Semi-Gantry Crane is ideal for indoor applications, offering flexibility and efficiency in confined spaces, especially in factories and warehouses.
Yes, Sinoko Crane offers customizations in terms of span, height, and control systems to suit different operational requirements and space constraints.
