BMH Semi Goliath Crane

BMH Semi Goliath Crane

Loading capacity: 0.5 ~ 20t

Lifting mechanism: wire rope hoist or electric chain hoist

Working class: A3 ~ A5

Working temperature: -20 ~ +40 ℃

Painting color: Customized

Lifting speed: Single speed: 3 ~ 8 m/min; or customized;

Variable frequency speed: 1 ~ 10 m/min; or customized

Overview:

BMH Type Semi Gantry Crane With Electric Hoist

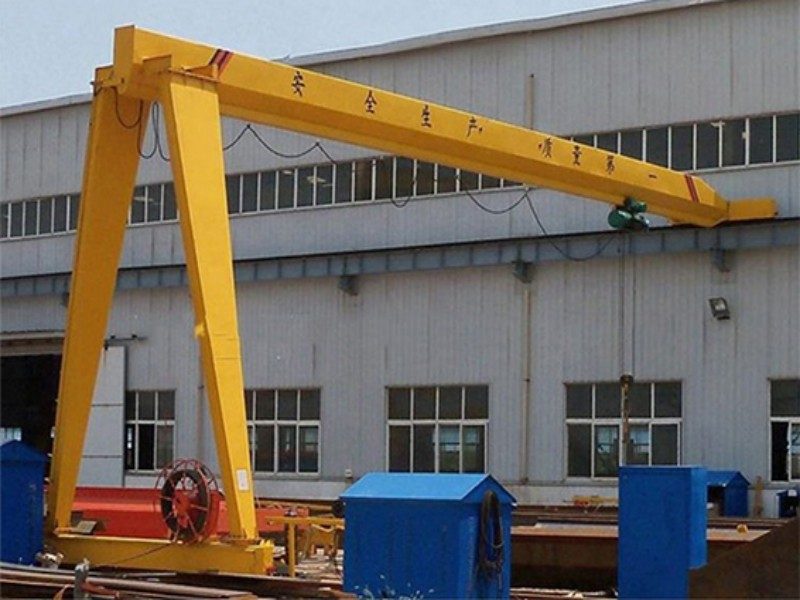

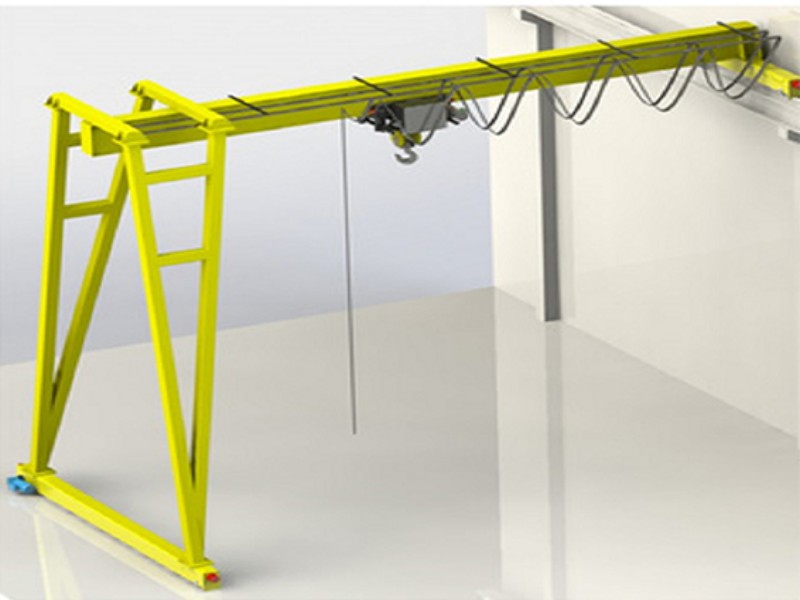

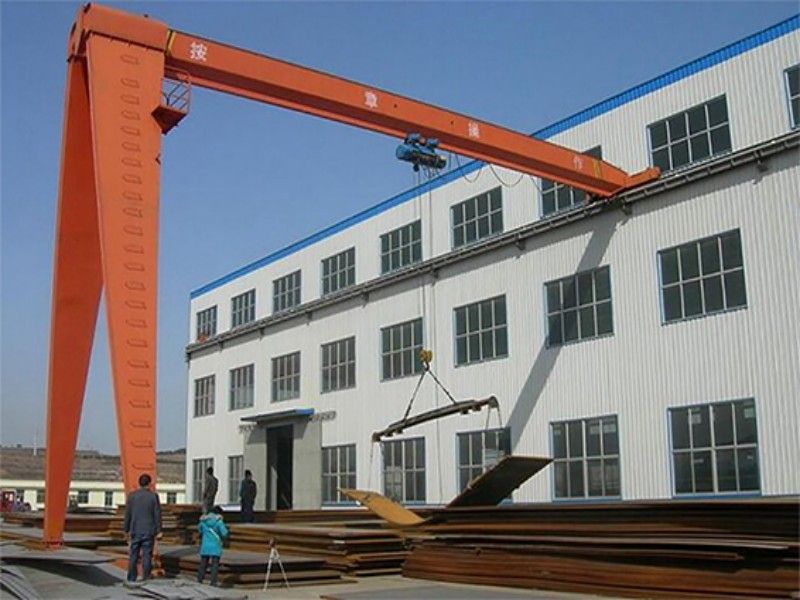

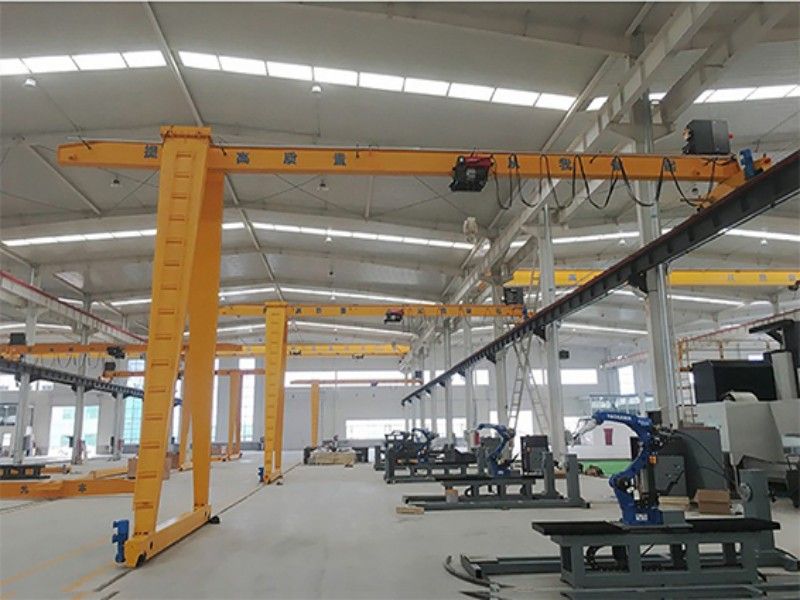

Semi-gantry Crane has a special design structure to suit various crane work situation. It can be single girder and double girder, the two ends connections are different, one side is connected and supported by the crane gantry leg travel on the ground mounted rails, another side is connected and supported by an end carriage travel on the overhead track.

Compare to the standard gantry crane, it will save one side support gantry leg, not only reduce the cost, also can expand crane effective work space in some limited workshops.

The crane is suitable for indoor and outdoor use, under the lifting hook, there are different lifting tools to choose, such as grab bucket, electromagnet and other lifting tools.

Features

1) Compact structure and high efficiency work.

2) Maintenance free design.

3) Disc electromagnet brake.

4) Schneider brand electric panel.

5) Standard safety monitor unit to meet the real time monitor during the whole crane working.

6) Adopt the use 2160N/mm² tensile strength galvanized wire rope.

7) The load limit sensor is set at the fixed end of the wire rope, with sensitive triggering, light load weighing accuracy of ±5%, heavy load weighing accuracy of ±2%, safe and reliable, and easy to maintain.

8) Lifting and travelling limit switches; Emergency Stop; Loss voltage protection; Grounded protection; Overload protection; Short circuit protection; Overheating protection; Over-speed protection; Over current protection; Faulted phase protection…


Specification

BMH Type Semi Gantry Crane With Electric Hoist drawing


Loading capacity

0.5 ~ 20t

Lifting height

3 ~ 30 m or customized

Lifting speed

Single speed: 3 ~ 8 m/min; or customized

Variable frequency speed: 1 ~ 10 m/min; or customized

Span

3~35 m

Lifting mechanism

wire rope hoist or electric chain hoist

Working class

A3 ~ A5

Working temperature

-20 ~ +40 ℃

Power supply

AC-3Phase-220//230380/400/415/440V-50/60Hz

Control way

Ground handle control(Push button),wireless remote control,cabinet control

Application area

Factory,workshop,warehouse,power station,logistic,etc.

Painting color

Customized

Motor protection class

IP54 IP55 IP65
