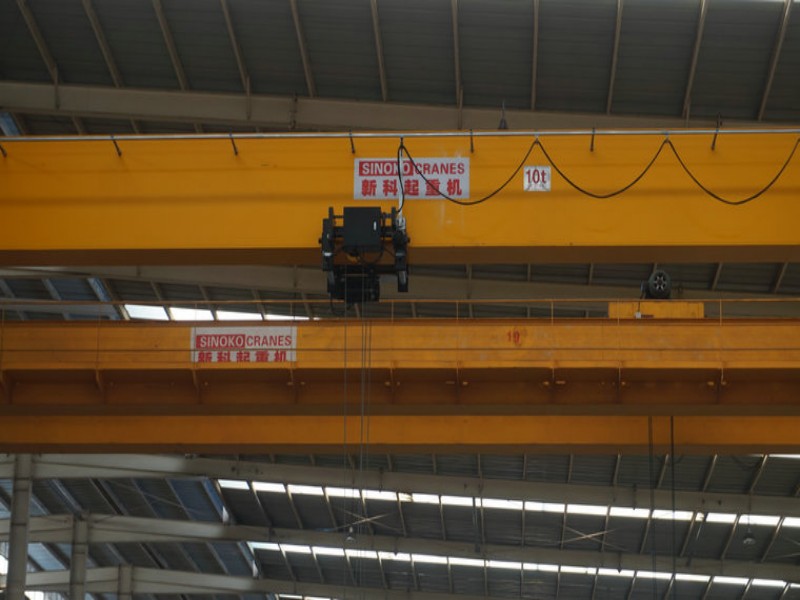

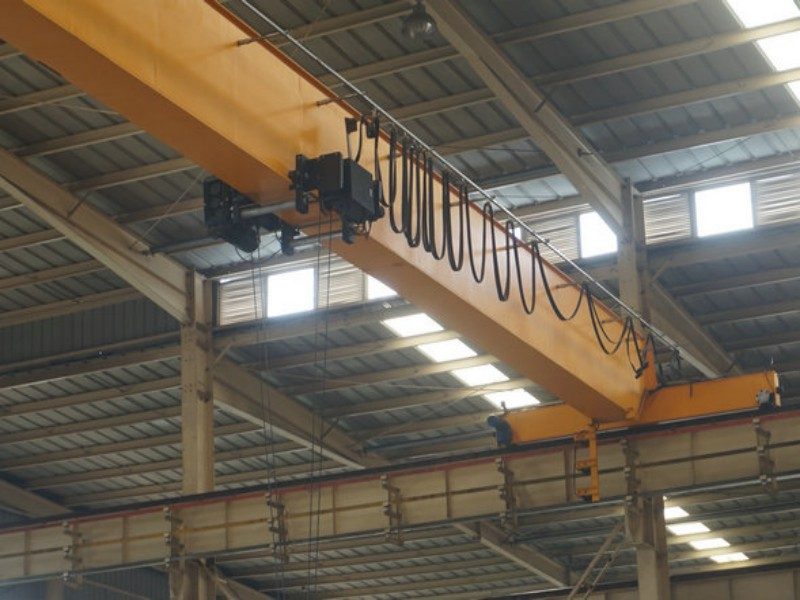

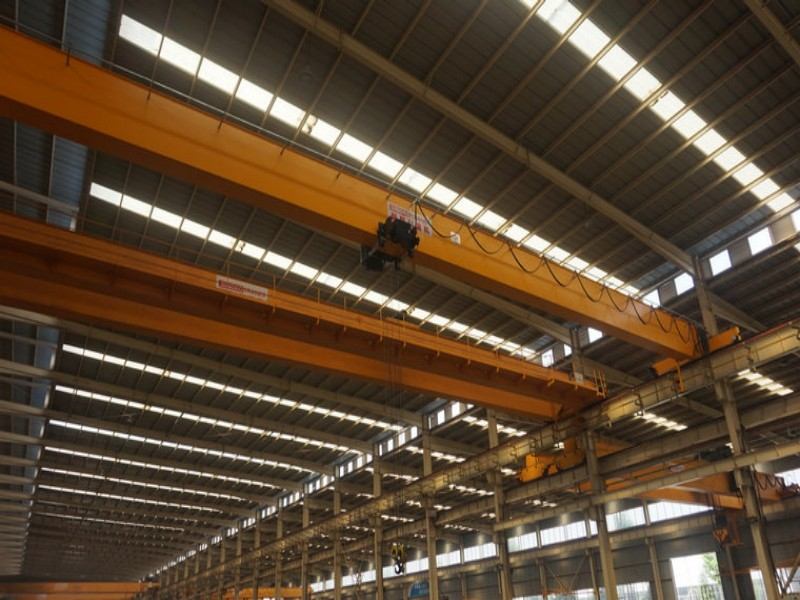

10 ton overhead travelling crane is a powerful and versatile tool that can be used to move heavy loads in an industrial setting. Proper training, maintenance, and safety precautions are necessary to ensure safe and efficient operation.
There are several types of overhead travelling cranes available, including single girder, double girder, and underhung cranes.
Features
| Beam | Main Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided. |
| Electrical parts | Schneider brand |
| Motors | Frequent starting, reversing & braking, dust proof construction foot / flange mounted European brand motors with integrated safety brakes, insulation class F-H, IP54 protection for hoisting, CT & LT motions. Squirrel Cage Induction Crane duty motors of reputed make (Motors may be used preferably of JIAMUSI/NANJINGZONGCHANG make), CDF25%, Totally enclosed, fan cooled, Insulation Class-F &confirming to relevant latest GB/T 1032-2005. |
| Brakes | Independent Hydraulic Brake Conical rotor type or "Fail to safe" action type Electro-hydraulic drum / disc brakes type to be provided to hold the mechanism in position instantaneously as soon as the power supply is 'OFF' either accidentally or intentionally for all motions. |
| Gear Box | Accurate hob cut helical / spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel, smooth operation & long life, can equipped with SEW/ABB brand high quality gear box |
| Electrical Panel | Modular design, ease to install and maintain, reliable operation, fuses less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading If cabin control, it can be equipped with Air-conditioning and with easy and convenient control panel. |
| Limit Switch | For over Hoisting and Over lowering: Shunt, adjustable type. Two way lever type for CT both direction and LT both direction of reputed safety limit switches for stoppers will be provided to prevent over traveling in all motions |
| Control Panel | Through Cabin Control as also with Master Controller with Push Button for ON, OFF, UP, DOWN, Forward, Reverse, Left, Right, Bridge Light & Emergency Stop. Operating safe Voltage 36Volts, hanging in the end of Bridge girder. The control panel of crane should consist of Fuses, reversing air breakers, step down transformer, relay etc. The wires / cables should be numbered as per circuit diagram. Circuit diagram covered with sheet to be provided on the inside of panel door. |
Specification
| Specification | Details |
| Capacity | 10 tons |
| Span | 20 meters |
| Lift height | 6 meters |

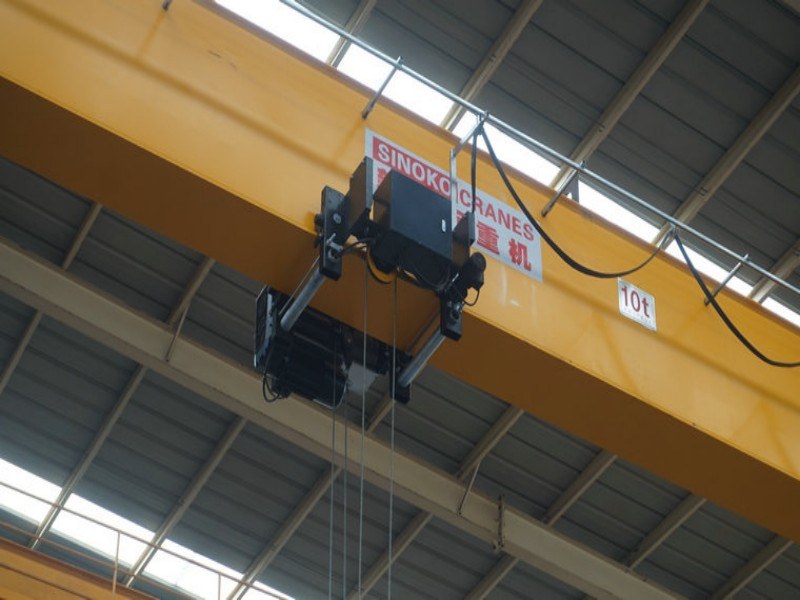

| Hoist type | Electric wire rope hoist |
| Hoist speed | 0-8 m/min |
| Trolley speed | 0-20 m/min |
| Crane speed | 0-40 m/min |
| Control system | Pendant and/or radio remote control |
| Duty class | A5 (intermediate) |
| Power supply | 3 phase, 50Hz, 380V |
| Ambient temperature | -20℃ to 40℃ |
| Protection class | IP54 |
| Safety features | Overload protection, emergency stop button, limit switches |
| Structural material | Steel |
| Paint | Anti-corrosion paint |
| Certification | CE, ISO9001 |
CASE
Want to see how our cranes are performing in real operations? Discover real-world project cases showcasing our lifting solutions across different industries and applications.
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a Quote
5T LDA Single Beam Overhead Crane for Ethiopian Textile Factory
Boost your lifting efficiency with our 5T Single Girder Bridge Crane — reliable, durable, and built for performance. Perfect for workshops, warehouses, and industrial handling.
Learn More Get a QuoteFAQs
The crane is engineered to comply with FEM (European) standards, offering an optimized box‑plate main girder and end carriage design, fully weld‑inspected via radiography. It incorporates Schneider electrical controls, European heavy‑duty motors with IP54 protection and F‑H insulation, and hardened helical or spur gearboxes from brands like SEW or ABB for exceptional durability and precision.
This crane has a 10‑ton lifting capacity, a span of 20 meters, and a lift height of six meters. Hoisting and traveling speeds range from 0 to 8 m/min (hoist), 0 to 20 m/min (trolley), and up to 40 m/min (crane). Control options include pendant and radio remote systems.
Built for reliable operation in ambient temperatures between ‑20 °C and +40 °C, the crane is rated to IP54 for dust and moisture protection. It includes comprehensive safety features like overload protection, emergency stop, and precise limit switches to prevent hazardous overhoisting or overtravel.
The crane operates on a 3‑phase, 50 Hz, 380 V power supply. Controls can be configured via a pendant or radio remote, offering flexible operational modes to suit both stationary and mobile operator preferences.
It comes with CE and ISO 9001 certifications and features rugged materials like box‑plate girders, precise welded structures, and heavy‑duty components. The control panel is modular with maintenance‑friendly features like ducted wiring, a fuse‑less circuit, and overload protection.
Ideal for mid‑range lifting operations, this crane suits manufacturing workshops, warehouses, and logistics facilities. Its European‑standard engineering ensures efficient, precise, and durable performance—especially for businesses needing dependable and long‑lasting handling solutions.
