Overview:
1. a unique magnetic circuit design, use of aluminum coil, coil plates used to protect the good wear resistance of high manganese boards, light forces, the lifting capacity.
2. the structure is simple, safe, reliable, applicable to all types of lifting equipment.
3. with the exception of the use of voltage, but also a strong exciting way. Can improve the lifting capacity and increase economic efficiency.
4. applicable to the removal of cast iron ingots, Steel Ball into all kind of scrap.
Due to the strong and deep penetration of magnetic force, scrap magnets are suitable for sorting out cast ingot, steel ball, pig iron, machine chips, for various kinds of steel scraps, return scraps, cropping, baling scraps and etc in junkyards, foundry factories and for iron powder in coal washery.
Features
1. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics oflight weight, low power consumption, high lifting capacity and long serving life.
2. this series has fine insulation structure. the insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils. the insulation grade can reach class special C.
3. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4. with simple structure reliability, it is suitable for working with all kinds of lifting equipments.
Specification
| Model | Lifting capacity (kg) | ||
| (cold/hot state) | |||
| Steel ball | Steel ingot | turnings | |
| MW5-50L/1 | 1200 | 220/130 | 80/65 |
| MW5-60L/1 | 2000 | 290/170 | 95/80 |
| MW5-70L/1 | 2500 | 380/200 | 120/100 |
| MW5-80L/1 | 3000 | 480/250 | 150/130 |
| MW5-90L/1 | 4500 | 600/400 | 250/200 |
| MW5-110L/1 | 6500 | 1000/800 | 450/400 |
| MW5-120L/1 | 7500 | 1300/1000 | 650/500 |
| MW5-130L/1 | 8500 | 1400/1100 | 700/600 |
| MW5-150L/1 | 11000 | 1900/1500 | 1100/900 |
| MW5-165L/1 | 12500 | 2300/1800 | 1300/1100 |
| MW5-180L/1 | 14500 | 2750/1100 | 1600/1350 |
| MW5-210L/1 | 21000 | 3500/2800 | 2200/1850 |
| MW5-240L/1 | 26000 | 4800/3800 | 2850/2250 |
| MW5-260L/1 | 30000 | 6100/4900 | 3600/3850 |
| MW5-280L/1 | 34000 | 7100/5700 | 4450/3400 |
| MW5-300L/1 | 39000 | 8350/6700 | 5150/4100 |
Scrap Metal Magnet Packaging & Delivery
Packaging Details:
Pack each window with aluminum foil band and PVC film to protect against scratches.
2. Use wood pallet and frames to fix the windows to avoid collision or shaking.
3. Use packing strap to fasten the pallets.
4. Load the pallets with forklifts. Put airbags between pallets to avoid collision.
Delivery Detail:
Shipped in 30 days after payment
CASE

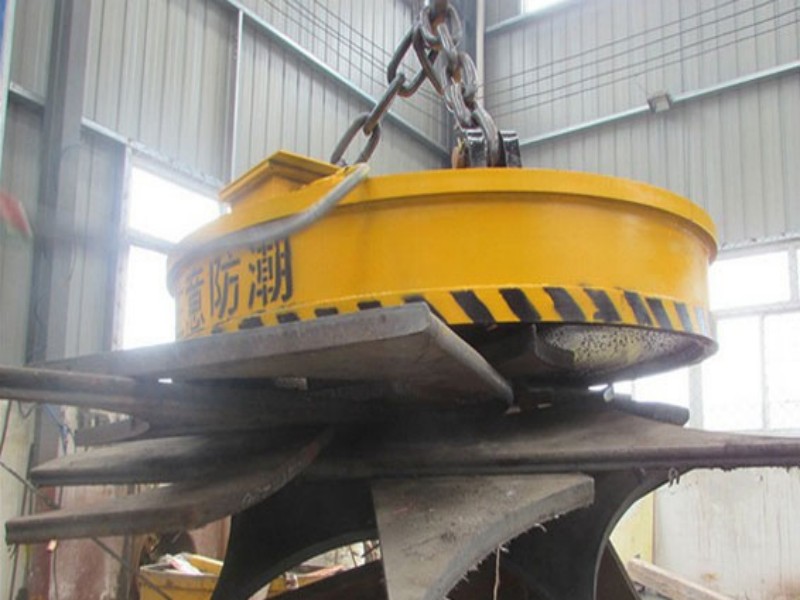

The MW5 Series Scrap Yard Lifting Metal Magnet from Sinoko Crane is your solution for heavy-duty metal handling. Built for efficiency and durability, it can easily lift large scrap metal loads, making it ideal for scrap yards, recycling facilities, and construction sites.
32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a Quote
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a QuoteFAQs
It’s a powerful electro-magnet designed for lifting scrap metal, ideal for use in scrap yards, recycling centers, and industrial material handling.
The MW5 magnet is designed to lift ferrous materials like scrap metal, steel, iron, and other magnetic metals.
The MW5 magnet can handle a wide range of heavy loads. For specific capacities, please refer to the product page or contact our team for tailored solutions.
Yes, it is compatible with various crane types, including overhead, gantry, and mobile cranes, making it versatile for different lifting applications.
Yes, the MW5 magnet is designed to handle elevated temperatures, making it ideal for scrap yards where metal materials may be hot.
Regular inspection, cleaning, and maintenance of the electrical components are essential. Refer to the user manual for detailed maintenance instructions to ensure optimal performance.
