Scrap Yard Electro Magnet for Sale

Scrap Yard Electro Magnet for Sale

Introduction of Scrap Yard Magnet for Sale

Electromagnets are used to transport iron filings, ingots, steel sheets, plates, steel plates and steel plates. Electromagnets are suitable for installation on excavators and cranes; electromagnets can also be flooded and can be used at very high temperatures.

Overview:

Options of Scrap Yard Magnet for Sale:

Rated Voltage DC220V;Strong Excitation Type; Over excitation type.
Consists of Lifting Magnet, Cable Reel, Control Cabinet, Cable Connector.
· Lifting Magnet
:MW5-130L/1
· Rectification Control Cabinet
:DKP-4
· Cable Reel
:JTA100-15-2
· Quick Coupling
:DKL-50



SINOKO produces the following types of magnets:

· (Circular/Square/Rectangular), available diameters from 500 mm up to 3000 mm;
· Heat insulated magnets. They are used to move hot cargoes having
surface temperature of up to 700°C;
· Magnets for any climatic requirements;
· Magnets with up to 75% duty ratio;

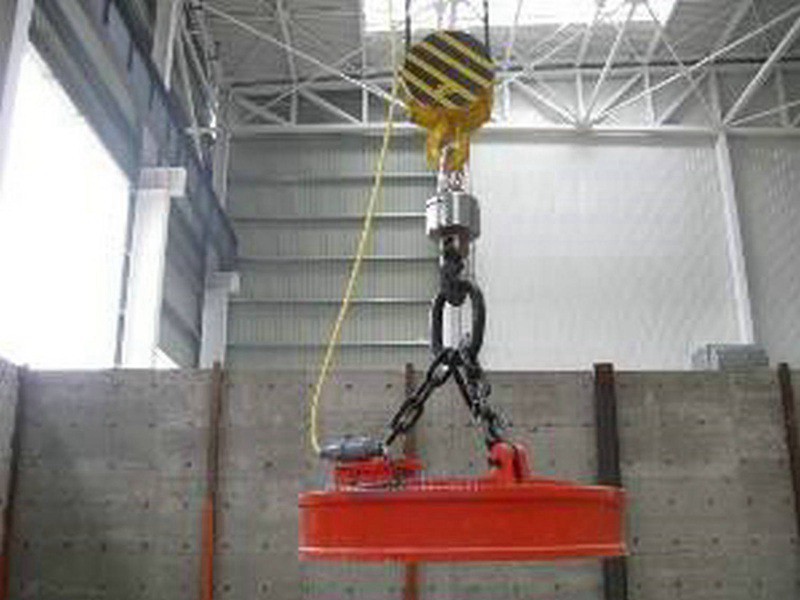

Scrap Yard Magnet for Sale Magnet Show

Scrap Yard Magnet for Sale.jpg

Features

Features of Scrap Yard Magnet for Sale:

1. a unique magnetic circuit design, use of aluminum coil, coil plates used to protect the good wear resistance of high manganese boards, light forces, the lifting capacity.
2. the structure is simple, safe, reliable, applicable to all types of lifting equipment.
3. with the exception of the use of voltage, but also a strong exciting way. Can improve the lifting capacity and increase economic efficiency.
4. applicable to the removal of cast iron ingots, Steel Ball into all kind of scrap.
75% or 60% Duty Cycle
All welded heavy duty construction
Class H insulation
Powerful deep magnetic field design
Aluminum
Coil , Copper optional

Specification

Scrap Yard Magnet for Sale Major Technical parameter

Item
Parameter
Model

Excitation
power(in
low
temperature)
KW

Current
A

Weight
kg

Lifting capacity kg

Iron ball

Cast iron
ingot

Cutting slack

MW5-70L

3.3

15

500

2500

380/200

120/100

MW5-80L

3.96

18

630

3000

480/250

150/130

MW5-90L

5.85

26.6

800

4500

600/400

250/200

MW5-110L

7.7

35

1360

6500

1000/800

450/400

MW5-120L

10

44.5

1650

7300

1300/900

600/500

MW5-130L

11.9

54

2110

8500

1400/1100

700/600

MW5-150L

15.6

71.2

2800

11000

1900/1500

1100/900

MW5-165L

15.6

75

3200

12000

2200/1800

1300/1100

MW5-180L

22.5

102.4

4200

14500

2750/2100

1600/1350

MW5-210L

28.4

129

7000

21000

3500/2800

2200/1850

MW5-240L

33.9

154

9150

/

4800/3800

2850/2250
