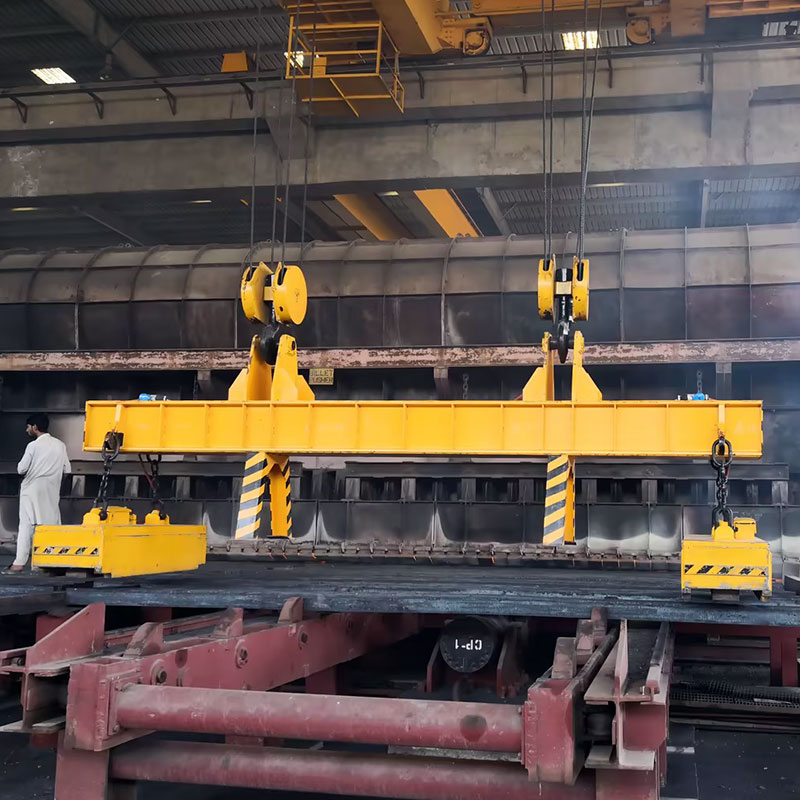

Lifting electromagnet For Crane

Lifting electromagnet For Crane

Lifting Electromagnets for Cranes are devices used to move or lift extremely heavy objects. They consist of an electromagnet, which is attached to a crane and generates a powerful magnetic field. This allows the crane to safely and securely lift ferrous metal objects with ease. Lifting Electromagnets for Cranes are often used in industrial settings, such as shipyards and construction sites, as they can easily move large quantities of steel and other metals with ease and accuracy.

Overview:

linfting magnet

Lifting electromagnet is special equipment which utilizes the electric & magnetic physical quantity to lift attached materials and has become indispensable when to lift and transport ferromagnetism materials in lines of metallurgy, mine, machinery, shipbuilding and transportation etc and it can also be used as electromagnetic manipulator magnetic force centering bar length fixing and so on in some fields. As the attached materials are diverse, the electromagnet structure magnetic circuit and manufacturing process are also different. So there are many series of strong targeted products.

Features

linfting magnet detail


1. Adopt totally sealing structure with good property of moisture- proofing, non-magnetic fender is made of rolled Mn steel plate which has good property of weld ability magnetism- isolation, wear-resistant and shockproof.

2. Overseas technology has been introduced improved innovated as well as get optimum designed by computer to make our products reasonable structure, light self-weight strong attraction force and low energy consumption.

3. The energizing coils have been processed by special technology and thus its property of electrical and mechanical gets enhanced. Heat-resistant of insulating material reaches grade C and service life is long.

4.Rated duty cycle of normal electromagnet gets increased from 50% in the past to 60% thus working efficiency gets improved.

5. Over high temperature electromagnet adopts unique isolation from heat and radiation, the temperature of attached materials gets increased from 600 ℃ C in the past to 700℃; C which expands application range of electromagnet.

6. A full set of auxiliary unit such as control cubicle, cable reel etc can be provided as well.

7. Installation, operation and maintenance are convenient.

Specification

Crane Magnet for Steel Scrap Lifting; MW Series

Model
Electric current (A)
Cold-state power (kw)
lifting capacity (kg)
cold/hot state
Mass (kg)
Overall dimension (mm)
steel ball
  cast iron
steel scrap
A
B
C
D
E
MW5-70L/1
15
3.3
2500
380/200
120/100
490
700
800
160
90
30
MW5-80L/1
18
3.96
3000
480/250
150/300
620
800
800
160
90
30
MW5-90L/1
26.6
5.9
4500
650/440
250/200
800
900
1090
200
125
40
MW5-110L/1
35
7.7
6500
1000/800
450/400
1350
1100
1140
220
150
45
MW5-120L/1
45.5
10
7500
1300/1000
600/500
1700
1200
1100
220
150
45
MW5-130L/1
54
12
8500
1400/1100
700/600
2010
1300
1240
250
175
50
MW5-150L/1
71.2
15.6
11000
1900/1500
1100/900
2830
1500
1250
350
210
60
MW5-165L/1
75
16.5
12500
2300/1800
1300/1100
3200
1650
1590
370
230
75
MW5-180L/1
102
22.5
14500
2750/2100
1600/1350
4230
1800
1490
370
230
75
MW5-210L/1
129
28.4
21000
3500/2800
2200/1850
7000
2100
1860
400
250
80
MW5-240L/1
154
33.9
28000
4800/3800
2850/2250
9000
2400
2020
450
280
90
