Overhead Traveling Magnet Crane for Hot Rolled Steel Billet Stacking

Overhead Traveling Magnet Crane for Hot Rolled Steel Billet Stacking

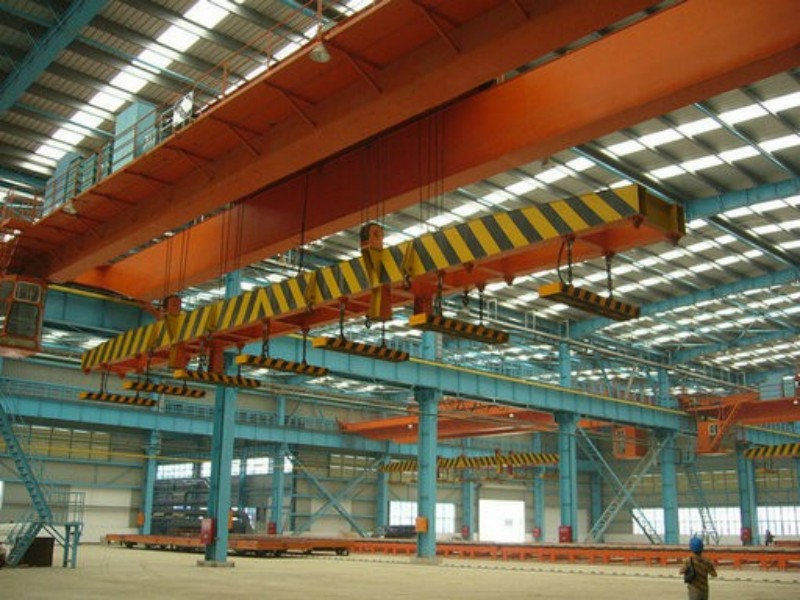

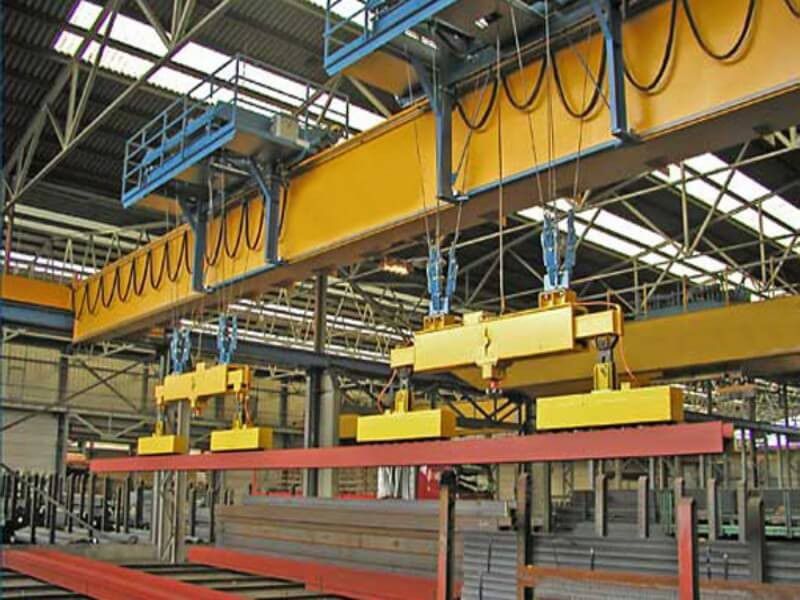

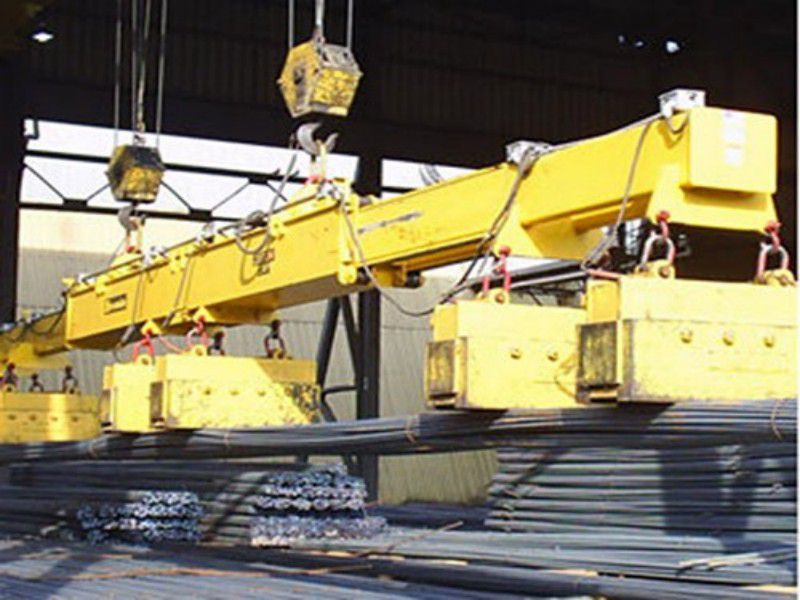

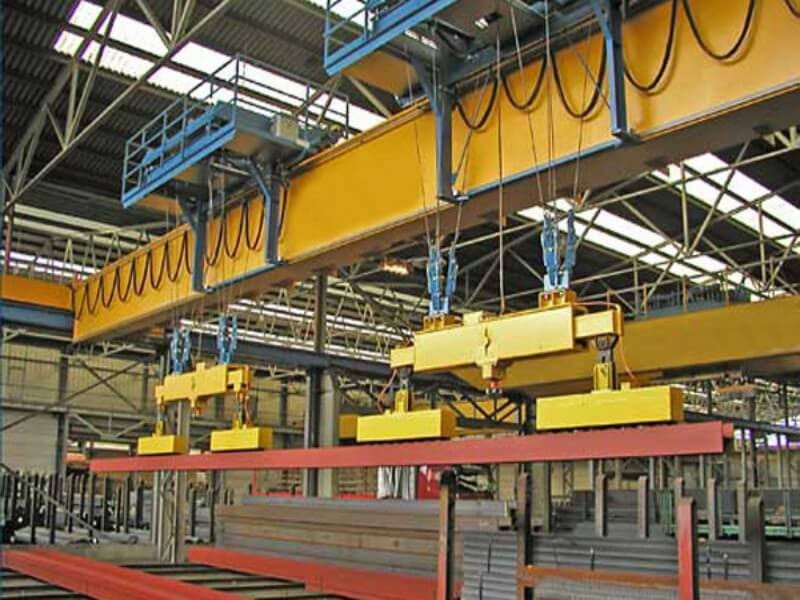

Steel billet stacking overhead traveling magnet crane is suitable for stacking hot rolled steel billets

Overview:

Steel billet stacking overhead traveling magnet crane is applicable to the fixed span at indoors or outdoors of steel mill, shipyard, port, yard and storage, etc. It is used for loading, unloading and carrying steel plate, profile steel, and spool, etc. It is especially applicable to lift material or different specifications and which needs Horizontal rotation. The carrier-beam is cross structure, which is reliable and has good safety features, and has a certain function of preventing swinging. The lower part of the carrier-beam can bring special lifting appliances, such as magnetic chuck and tongs, etc.

Features

1. Double box beam with steel legs moving through the ground beam as crane travelling system
2. The camber of main beam will be designed as Span*1-1.4/1000.
3. Steel Material: Q235 or Q345
4. Shot-blasting Sa2.5 for main girder and supporting beam
5. Epoxy zinc rich high quality painting.
6. Electrical panel brand: CHINT, SIEMENS and Schneider
7. Conductor power supply: Cable reel or bus bar.
8. Frequency conversion, double speed, single speed,
9. All  hoist and crane movements are independent and can be run simultaneously different design duo to meet crane applications
10. Whole layout provides good protection against special  working environment.

Specification


1. Capacity: up to 100ton
2. Span: 8-40m
3. Max. lifting height: up to 100m
4. Working class: ISO A5-A7/FEM 2M-4M
5. Control method: Cabin or remote control

Model
Overall dimension(mm)
Mass (mm)
Power (kw)
Example for lifting capacity(diameter*length) combination of two electromagnets
A
B
C
D
E
F
G
MW29-10060L/1
1000
600
1000
500
100
170
32
900
5
Diameter of each punch is about 500mm weight of each punch 1000kg
MW29-15060L/1
1500
600
1100
500
100
170
32
1300
7.5
Diameter of each punch is about 600mm weight of each punch 1000kg
MW29-12070L/1
1200
700
1000
500
100
170
32
1800
8.5
Diameter of each punch is about 500mm weight of each punch 1000kg two bunches side by side
MW29-22070L/1
2200
700
1500
700
125
170
38
3500
15
Diameter of each punch is about 500mm weight of each punch 1000kg four bunches side by side
