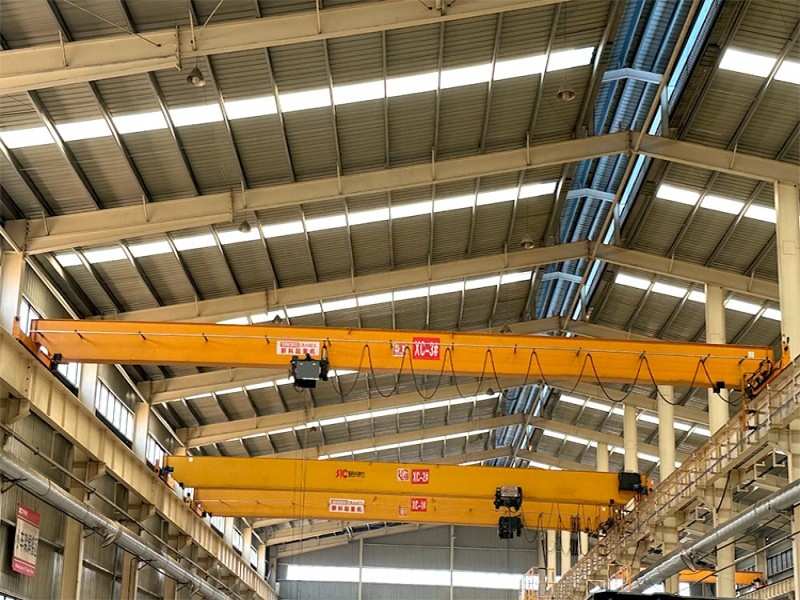

European single-girder 7 ton overhead crane consists of hoisting mechanism (wire rope electric hoist and other structures), main beam, end beam, electric control system, etc. European crane has low height, small size, light weight, small wheel pressure and humanity.
This design and many other advantages are a new generation of innovative products, superior performance, compact structure, small net space size, and full use of the factory's effective space.
Features
The main components of the 7 ton overhead travelling crane include the main girder, electric hoist, traveling mechanism, and control system. These components work together seamlessly to ensure smooth and efficient operation.
| Main beam | The main beam adopts box-type structure and connects with end beams by high-strength bolt ensuring easy transportation. The professional processing equipment ensure the connection accuracy of main beam and end beam, making crane run steadily. |
| End beam | End beams are the rectangular steel pipe and welding molding in a CNC machine tool positioning processing; each end beam is equipped with a double wheel rim wheel group, buffer and anti-derailment protection device. |
| Hoist | Ø Maximum space using Ø Precise operation Ø Low maintenance cost Ø Less fault downtime Ø Minimum hook limit space & distance Ø Standard world-renowned brands: SEW, ABM three in one type motor, Schneider electric parts |
| Drum, Steel wire rope, Rope guide | Ø The drum is made from high-quality seamless pipes and processed by numeral control CNC machine, after finish machining, the rope groove on drum works coordinately with rope guide to efficiently prevent rope loose and tangling. Ø Steel wire rope adopts high strength 2160N/mm2imported wire rope, which has super safety performance and longer service life Ø Standard rope guide is processed from engineering plastics, with strong abrasion resistance and good self-lubricating performance. |
| Lifting mechanism gear box | Shell of reduce uses aluminum alloy material, with light weight and corrosion resistance. Semi-grease lubricant in full sealed box gets all gears lubricated fully and should not be changed within the design circle for safety service. Each gear which gets the process of surface hardening and high-precision grinding ensures stable running of gear box. Ø Small size and light weight Ø Running smoothly and steadily, low noise Ø Corrosion resistance and maintenance-free |
| Lifting mechanism brake | The hoisting mechanism motor equipped with double-disc electromagnetic brake. According to the safety regulations, SINOKO CRANE adopts the braking force of the brake higher than 1.8 times of the rated torque. Ø Fast movement and high reliability Ø Maintenance-free and self-regulated Ø Dustproof design and longer service life |
| ABM three in one type drive | Drive mechanism is sealed three in one type. Ø Self- lubricating Ø Maintenance free Ø Inverter control Ø Stable running Ø Reliable quality Ø Low noise |
| Hoist cable dragging system | Ø Consisting of flexible flat cable, C-shaped steel slide Ø Flat cable with good flexibility Ø Aerial socket connecting, one to one correspondence,convenience of connection Ø Maintenance free,long operating life. |
Specification
| Specification | Value |
| Lifting Capacity | 7 tons |
| Span | 6 meters - 31.5 meters |
| Lift Height | 3 meters - 60 meters |
| Working Duty | A3 - A6 |
| Hoisting Speed | 0.7 meters/min - 7 meters/min |
| Traveling Speed | 2 meters/min - 20 meters/min |
| Power Supply | 3-phase AC, 380V, 50Hz |
Experience the power and reliability of our 7 ton bridge crane. Contact us now to discuss your lifting requirements and let our experts provide you with a tailored solution. Enhance your productivity and safety with our high-quality overhead crane. Request a quote today!
CASE
Looking to see how similar overhead crane systems perform in real-world environments? Discover our wide range of crane project cases across various industries and applications. From factory workshops to heavy-duty manufacturing lines, our custom lifting solutions have helped clients improve efficiency, safety, and productivity. Browse our project portfolio to find inspiration for your next lifting system.
32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a Quote
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a QuoteFAQs
The 7‑ton overhead crane supports spans from approximately 6 meters up to 31.5 meters and offers lifting heights spanning between 3 meters and 60 meters—covering a broad array of workshop and factory layout requirements.
Designed to comply with European single‑girder standards, this crane boasts a compact, low‑height structure with reduced wheel pressure and minimal headroom requirements. This lets it occupy less vertical space and maximize effective working areas in production environments.
It incorporates a box‑type main beam precisely bolted for accuracy, robust end‑beams with CNC‑welded rectangular pipes, dual‑wheel buffers, derailment protection, an imported high‑strength wire rope on a CNC‑machined drum with engineered rope guide, a sealed reducer with hardened gears, and a double‑disc electromagnetic brake rated at over 1.8× the rated torque—each engineered for durability, smoothness, and safety.
The crane typically operates on a 3‑phase AC power supply (380 V, 50 Hz). It delivers hoisting speeds ranging from around 0.7 m/min to 7 m/min and allows for travel speeds between approximately 2 m/min and 20 m/min—offering both precision and flexibility across different duty cycles.
With working-duty ratings from A3 through A6, the crane is versatile enough for light to heavier industrial tasks. It’s ideal for facilities with limited headroom or layout constraints, supporting varied spans, heights, and lifting modes—making it suitable across warehousing, assembly, and manufacturing scenarios.
The crane is outfitted with industry-standard components, including globally recognized motors (e.g., SEW, ABM’s integrated drive units), Schneider electrical parts, imported high-strength wire rope, and maintenance-free design elements like self‑lubricating reducers and cable-dragging systems—all supporting long-term reliability and simplified upkeep.
