Overview

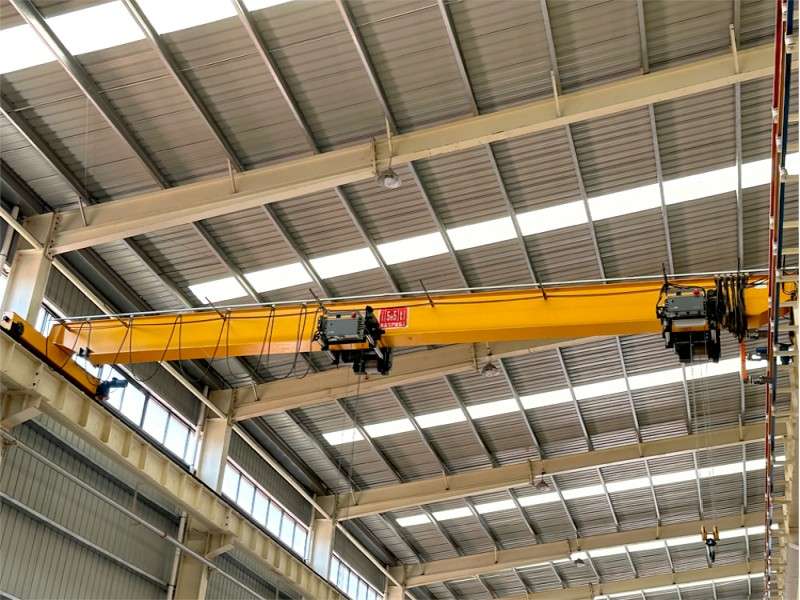

Low profile bridge hoist crane is a high-end type of crane, there is no this definition in technical concept. This crane has not only domestic advantages including reliable performance and low prices, but also advanced European Crane advanced technology, compact structure, light weight, energy saving, low noise and other advantages.
The advantages of a low-profile bridge crane include:
1. Space-saving: Due to their reduced height, these cranes can operate in areas with limited vertical clearance, maximizing the use of available space.
2. Versatility: They can be customized to meet specific lifting requirements and can be easily integrated into existing infrastructure.
3. Increased safety: The low profile reduces the risk of collisions with overhead obstacles, ensuring a safer working environment.
4. Improved efficiency: These cranes provide efficient material handling capabilities, allowing for faster and more precise load movements.
Overall, a low-profile bridge crane offers a practical solution for lifting and moving heavy loads in spaces with height restrictions, providing flexibility, safety, and enhanced operational efficiency.
Features
1. Reduce customer investment, make full use of plant space, and increase production efficiency
European cranes are characterized by their light weight, low wheel pressure, low equipment height, compact structure, and small footprint. They use international advanced technology. The most reasonable structure is adopted from the trolley, end beam to the main beam, and the weight is much lighter than Traditional crane. Therefore, under the condition of meeting the same requirements, the height of the factory building can be reduced, the section size of the rail bearing beam can be reduced, the bearing capacity of the bull legs and the pile foundation can be reduced, and the requirements on the track and the power supply sleeving can be reduced, so that the user is in the plant and lifting equipment. The overall investment in the area is reduced.
2. Good combination, full-scale specifications, complete product line, can cover most of the needs of customers
The traditional domestic lifting trolley performance parameters are relatively limited. The weight lifting coverage is only 5t-100t, and the working level is generally M5 and M6. The range of lifting and running speed can be selected to be small. The narrow range of choices and the need to add some special features are often difficult to meet. The SINOKO European cranes are standardized, modularly designed, and have a full range of products. They can be quickly designed according to customer needs, with a weight coverage of 6.3t-400t and a working level of M3. -M7, there are 5 kinds of lifting speeds, the running speed of the trolley is adjustable, and the lifting height covers 9m-60m, which can meet the needs of customers for special working conditions.
3. Reliable performance, low failure rate, reduce the use and maintenance costs
Since the SINOKO European cranes are characterized by their light weight, high quality, and high performance, they also provide the best solutions for customers according to their actual needs, compared to the traditional same lifting capacity, the same span and the same working level. The energy consumption of lifting equipment can be reduced by more than 30% during the operation process, which can save the operating cost for the customer. At the same time, due to the modular design and excellent key components, the failure working time of crane has been greatly increased, and the replacement period of wearing parts has increased, which has greatly reduced the maintenance cost of the crane.
Specification
lifting capacity(T) | 1,2,3,5,10T | 16,20T | |||||
Span(M) | 7.5-31.5M | ||||||
Crane travelling mechanism | Travelling speed(m/min) | 20/30 | 20/30 | ||||
Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | ZDY131S-4 | ZDY112L1-4 | |
Power(kw) | 2/0.8 | 2/1.5 | 1.5/2 | 2.2/2 | 2.2/2 | ||
Rotation (m/min) | 1380 | 1380 | |||||
Lifting mechanism | Electric hoist model | CD1/MD1 | MD1/HC | ||||
(electric hoist)&electric hoist travelling mechanism | Lifting speed (m/min) | 8,8/0.8 7,7/0.7 | 3.5 3.5/0.35 | ||||
Lifting height (m) | 6 ,9 ,12, 18, 24, 30 | 12,18,24,30 | |||||
Travelling speed (m/min) | 20(30) | 20(30) | |||||
Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | |||||
Work duty | A3-A5 | ||||||
Power supply | 380V 50HZ three phase | ||||||
Wheel diameter | 270mm | 370mm | |||||
Tread of trail | 37-70mm | 37-70mm | |||||
CASE
Want to see how our low-profile cranes are applied in real operations? Explore our project case studies to discover practical applications across various industries.
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a Quote
5T LDA Single Beam Overhead Crane for Ethiopian Textile Factory
Boost your lifting efficiency with our 5T Single Girder Bridge Crane — reliable, durable, and built for performance. Perfect for workshops, warehouses, and industrial handling.
Learn More Get a QuoteFAQs
This crane—commonly called a Low Profile Bridge Crane—features a reduced height and compact structure that makes it ideal for facilities with limited vertical clearance. It maximizes factory space, allowing operation close to walls and lowering investment in building height and supporting structures .
Thanks to its lightweight structure, low wheel pressure, and optimized engineering, this crane reduces energy consumption by over 30% compared to traditional bridge cranes. This leads to lower operating and maintenance costs over time.
The crane is delivered in a modular, full‑scale specification system covering lifting capacities from 1 t to 20 t, spans of 7.5 m–31.5 m, multiple travel and lifting speeds, and working classes from A3 to A5. This allows for fast, tailored design to meet special work environments.
Its reduced height lowers collision risk with overhead obstacles, creating a safer operating environment. The crane’s smooth and precise material handling further enhances operational safety .
By saving space, improving transportation speed, and enabling precise load movements, the crane streamlines workflows and helps boost production efficiency—making it especially suitable for dense industrial settings.
Available configurations include lifting capacities of 1 t, 2 t, 3 t, 5 t, 10 t, up to 20 t; spans between 7.5 m to 31.5 m; travel speeds around 20–30 m/min; lifting speeds from 3.5–8 m/min; and a work duty rating of A3–A5. Power supply standard is 380 V, 50 Hz, three‑phase.
