Gantry Crane with Grab

Gantry Crane with Grab

Sinokocranes are focusing on grab gantry crane (Gantry Crane with Grab), grab gantry crane design and manufacturing due to the customer real site situation.

Overview:

According with different working efficiency, different material density, size, weight etc. Sinokocranes could make most suitable type grab cranes.

gantry crane with grab

Sinokocranes could supply grab cranes which are widely used in may areas as followings:

1. Steel rolling mill plant Overhead Crane with Grab as steel scrap charging cranes for furnace.

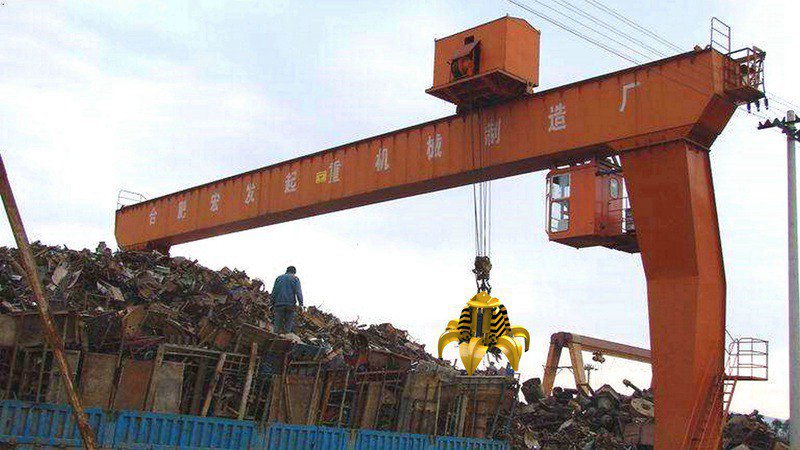

2. Scrap yard Gantry Crane with Finger Grab for bulk scrap handling work.
3. Stone material factory Gantry crane with orange peel grab for stones handling.
4. Waste yard trash waste disposal Gantry Cranes with Grab for lifting.


Features

gantry crane with grab

Technical Features:

1.;Grab cranes made of computer-optimised box sections

2.Grabbing cranes optimum design for serving stores and bunkers: fully automatic, semi-automatic and manual control

3.Grab overhead crane laser-assisted height measurement

4.grab overhead crane full operation around the clock

5.Our own software for control and visualisation

6.Limit Switchs for Lift and CT equiped for safe lifting or traveling, avoid the Collision

7.Overload Protection Device increase the security performance

8.Grab cranes remote Control* makes the Operation easier and more Convenient

9.Grapple crane double speed for all machnism* provide a good choice for precise work

10.Voltage lower protection function Phase sequence protection function

11.Grabbing cranes emergency stop function

12.Waste handling crane rain cover for outside hoist, driving units, electrical cubicle.

13. Bulk handling crane warning indicator: flashing lights and warning sound.

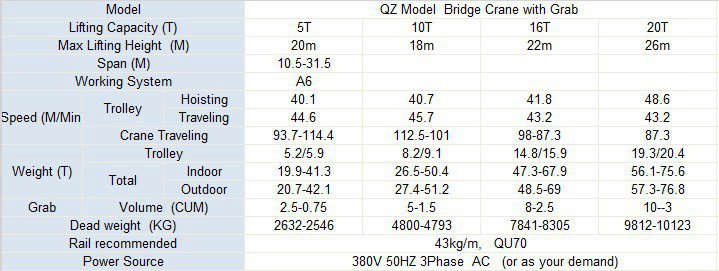

Specification

Product TypeQZ
Lifting Capacity5~25t
Span Length10.5~34.5m
Working ClassA6
Ambient Temperature-20~40℃


How to choose a Overhead grab crane or Grab Gantry Crane for your factory or plant?


1.Check what is the working capacity per day for handling those steel scrap, stones or bulk material etc.
2.Check what is the largest loading per time for the cranes.
3.Check what is the working time per day? 24 hour continuous working or just intermittent working?
4.Choose the right type grab you want. High efficiency automatic hydraulic grab or low speed mechanical grab?
5. Confirm the grab crane span, max lifting height, long traveling distance and control method.
6.If possible, you can also choose 2 cranes working together.
7. For steel scrap, you can also make the crane equipped both with magnet and grab at same time.
