Grab gantry crane is usually composed of walking mechanism, crane and its accessories. It has a larger lifting capacity and higher working accuracy, can be applied to a variety of shelves, frame structures, factory kilns, Bridges, stone processing and other occasions of operation. Grab can be based on different operation requirements, change its shape and size, positioning, loading and unloading, handling and installation of different operations.

Grab Gantry Crane for Steel Scrap Yard Feature

1. Grab cranes made of computer-optimised box sections

2. Grabbing cranes optimum design for serving stores and bunkers: fully automatic, semi-automatic and manual control

3. Grab overhead crane laser-assisted height measurement

4. grab overhead crane full operation around the clock

5. Our own software for control and visualisation

6. Limit Switchs for Lift and CT equiped for safe lifting or traveling, avoid the Collision

7. Overload Protection Device increase the security performance

8. Grab cranes remote Control* makes the Operation easier and more Convenient

9. Grapple crane double speed for all machnism* provide a good choice for precise work

10. Voltage lower protection function Phase sequence protection function

11. Grabbing cranes emergency stop function

12. Waste handling crane rain cover for outside hoist, driving units, electrical cubicle.

13. Bulk handling crane warning indicator: flashing lights and warning sound.

Grab Gantry Crane for Steel Scrap Yard Specification

Capacity (t)		5	10	16	20	32	50	75	100
Span (m)		7.5~31.5
Operation method		Pendent control, Wireless control, Cabin control
Speed (m/min)	Lifting	12.9	10.7	9.7	8.5	7.6	5.9	5.5	3.53
	Cross travel	35.9	36.4	36.7	37.5	38	38.5	38.4	33.86
	crane travel	78.3	77.8	77.5	76	75.8	74.6	65	65.6
Working duty		A5,A6,A7
Power supply (AC)		220/380/400/415/460V,50/60Hz, 3P

How to choose a Overhead grab crane or Grab Gantry Crane for your factory or plant?

1. Check what is the working capacity per day for handling those steel scrap, stones or bulk material etc.

2. Check what is the largest loading per time for the cranes.

3. Check what is the working time per day? 24 hour continuous working or just intermittent working?

4. Choose the right type grab you want. High efficiency automatic hydraulic grab or low speed mechanical grab?

5. Confirm the grab crane span, max lifting height, long traveling distance and control method.

6. If possible, you can also choose 2 cranes working together.

7. For steel scrap, you can also make the crane equipped both with magnet and grab at same time

Get a Free Quote

FAQs

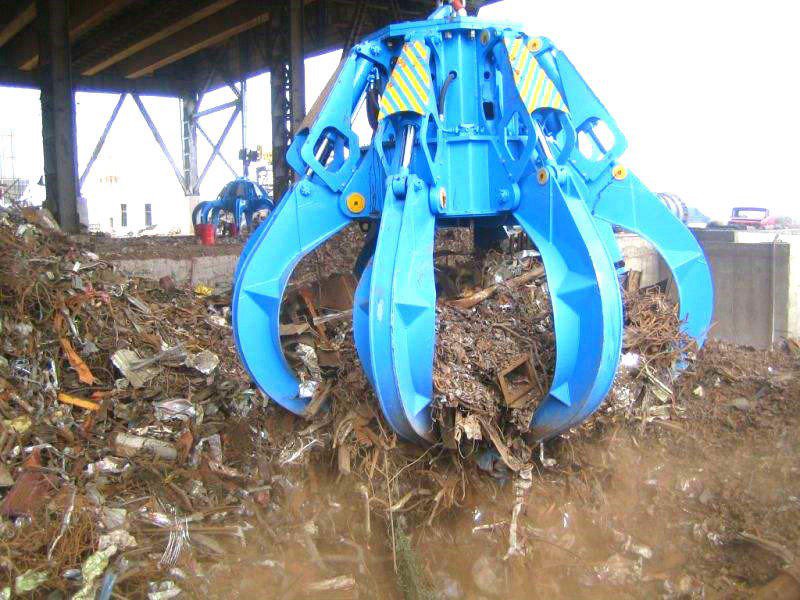

What is an Orange Peel Hydraulic Grab Gantry Crane used for?

This crane is ideal for handling bulky and irregular scrap materials—like steel scrap, stones, waste, and biomass—in scrap yards, steel mills, recycling facilities, and bulk material handling sites.

What are the key components and features of this crane?

* Robust grab gantry crane design with optimized box-section structures * Supports fully automatic, semi-automatic, or manual control * Equipped with laser-assisted height measurement, overload protection, limit switches, dual-speed mechanisms, emergency stop**, and rain covers for field durability

Can you customize crane capacity and spans?

CYes. Capacities range from 5 to 100 tons, spans from 7.5 to 31.5 meters, with operation methods including pendant, wireless remote, or cabin control.

What working duty class does this crane meet?

Designed for heavy-duty industrial use, it meets ISO A5 to A7 duty classifications.

More Scrap Handling Crane Options

Discover more scrap yard cranes such as bridge magnet cranes, gantry magnet cranes, QC-type electromagnet cranes, grab cranes, and accessories to fulfill efficient and safe lifting requirements in various scrap handling environments.

Get In Touch

Our teams are on hand to provide you with the right lifting solutions.

FEW TIPS

1.Load capacity: ton?

2.Span of the crane: m?

3.Max. lifting height of the crane: m?

4.What materials will be handled: ?

5.How many hours will the crane work per day: ?

6.Traveling distance of the crane: m?
