Orange Peel Grab Bucket

Orange Peel Grab Bucket

Advantages:

1.Long Service Life Hydraulic Grab bucket

2.Low upper head profile allows more vertical each for higher stacking.

3.Wide openings allow for cleaning out corners of crane body or rail cars.

4.High tensile steel used throughout. Wear resistant steel used on all spade tips.

5.Oversized, hardened cylinder and pivot pins with bushings.

6.Feed lines are directed upward in combination with a hose protection shield.

7.High pressure cylinders.

8.Bolt-on cylinder shrouds for maximum protection-and ease of maintenance.

9.Easily accessible, yet well protected grease zeroes.

Overview:

orange peel grab bucket

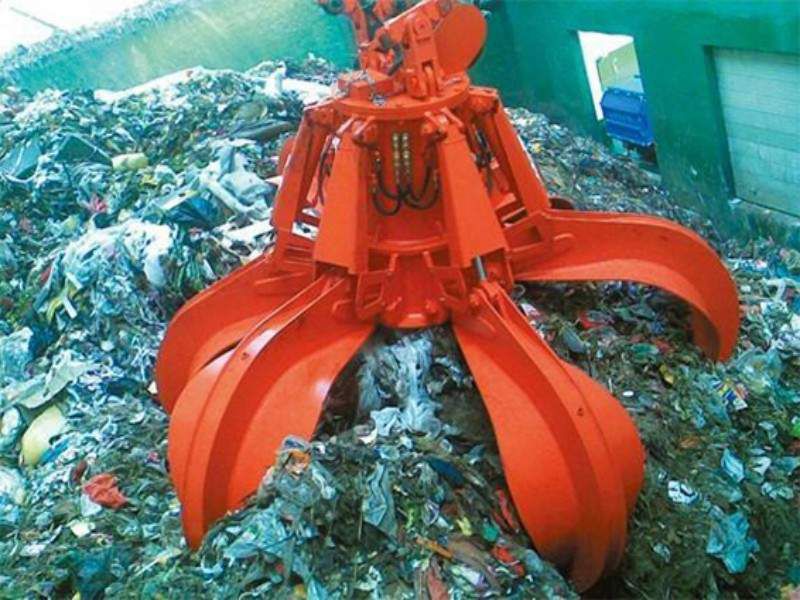

China high quality 6 flap electric hydraulic orange peel grab bucket for grabbing scraps are design for grabbing granular material and irregular shape such as Fertilizers, grain, coal, coke, ore, sand, granular materials and gravel and so on. Hydraulic orange peel grab bucket can connect directly with hook under crane, easy and convenient, high grabbing efficiency and steady service performance. Very popular in wharf, steel mills, power plants, ships, garbage incineration plant and other Working Occasions. Hydraulic orange peel grab bucket can work with all kinds of cranes.

Features

orange peel grab bucket

* Grab with hydraulic system, and all hydraulic unit adapt famous high quality brand in the world to make sure the high performance.Every tine have a independent oil cylinder driven to make sure the material sift-proof.
* Design for loading and unloading Scrap steel, pig iron, ore, waste and other irregular and large materials in hazardous environment.
* Simple grab structure, Easy Maintenance and can finish any open and close working very precise.
* Unique grab design to help all kinds buld material handling. Cable interface on the grab convenient to connect the cranes.
* This orange peel grab bucket is usually working with 8~40 ton cranes.
* Customized service avaliable.

Specification

Type
Electro Hydraulic Orange Peel Grab Bucket
Capacity
1 CBM TO 20 CBM
Grab Structure
Q345B
Pins & Axles
40 Cr 1 Mo 28, IS; 1570, Hardened, ground and tempered and Hard Chromium Plated
Working Pressure
Opening pressure 140 bar Closing pressure 220 bar
Grab Working Cycle
Opening 10 to 15 seconds
Closing
13 seconds
