Scrap Handling Trash Crane Type

According with different working efficiency, different material density, size, weight etc. Sinokocranes could make most suitable type scrap handling trash crane.

scrap handling trash crane with magnet

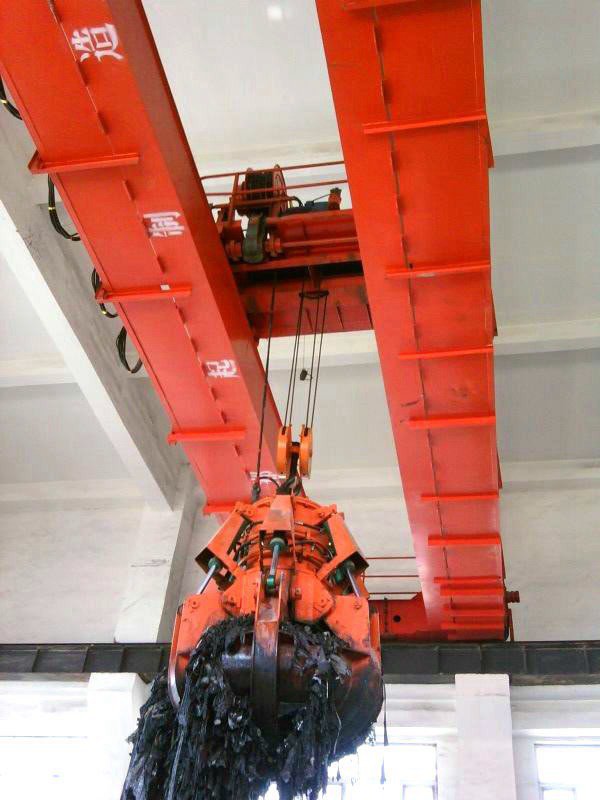

scrap handling trash crane with grab

Sinokocranes could supply scrap handling trash crane which are widely used in may areas as followings:

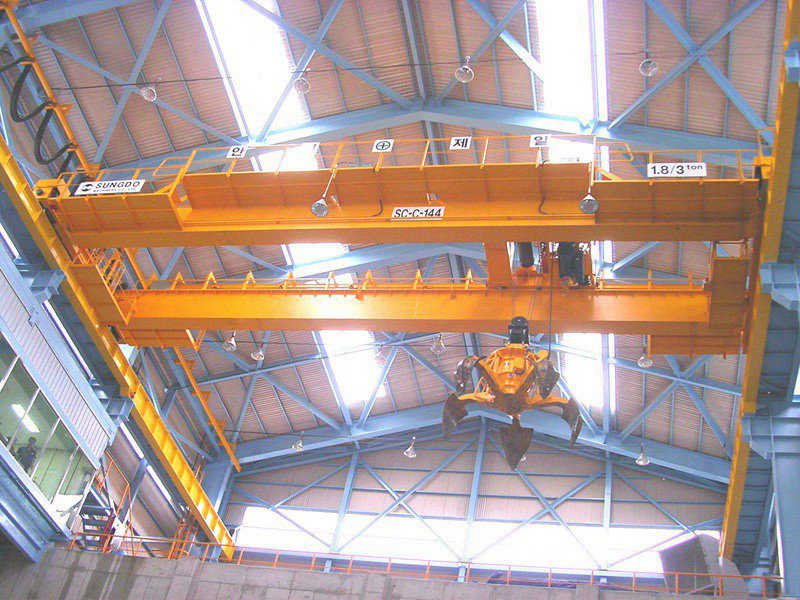

1. Steel rolling mill plant overhead crane with grab as steel scrap charging cranes for furnace.

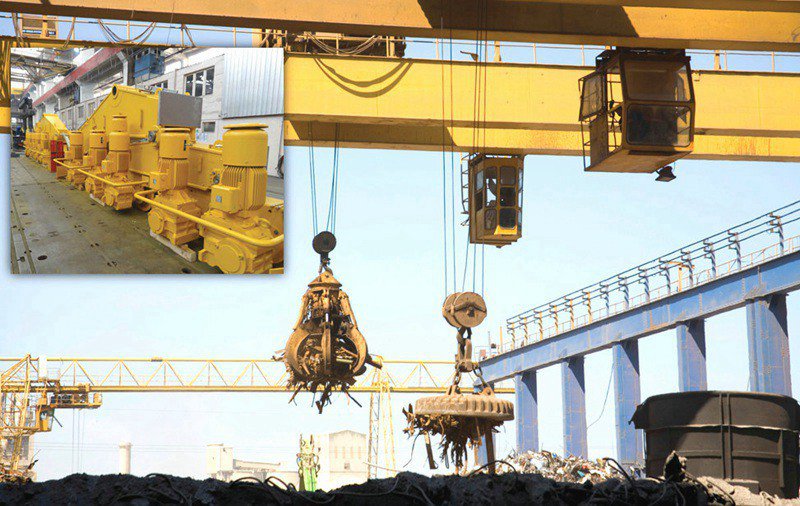

2. Scrap yard gantry Crane with Finger grab for bulk scrap handling work.

3. Stone material factory gantry crane with orange peel grab for stones handling.

4. Waste yard trash waste disposal gantry cranes with grab for lifting.

Scrap Handling Trash Crane Technical Features

1. Trash crane made of computer-optimised box sections

2. Trash crane optimum design for serving stores and bunkers: fully automatic, semi-automatic and manual control

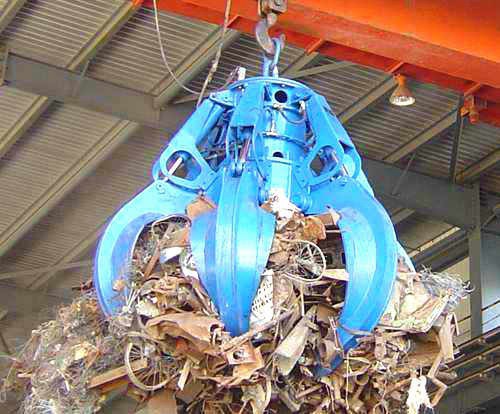

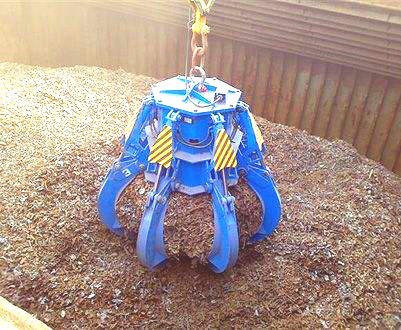

scrap handling trash crane grab

1. Adopt international leading anti swing control technology;

2. Advanced and precise positioning technology;

3. Weighing management system and communication technology;

4. Control technology of hydraulic grab lifting while grasping;

5. Fault self diagnosis and remote monitoring and upgrading technology;

6. Intelligent garbage level height judgment Technology (Fully automatic control);

7. Vector frequency control technology, Siemens PLC control technology, CMS intelligent remote service management system, real-time monitoring equipment operation.

8. The garbage crane also has high requirements for the cable. The cable itself needs to have excellent performance such as wear resistance, oil resistance, cold resistance, tensile strength, torsion resistance, hydrolysis resistance and corrosion resistance.

Scrap Handling Trash Crane Specification

Product Type	QZ/QC
Lifting Capacity	5~25t
Span Length	10.5~34.5m
Working Class	A6
Ambient Temperature	-20~40℃

How to choose a grab overhead crane or grab gantry crane for your factory or plant?

1. Check what is the working capacity per day for handling those steel scrap, stones or bulk material etc.

2. Check what is the largest loading per time for the cranes.

3. Check what is the working time per day? 24 hour continuous working or just intermittent working?

4. Choose the right type grab you want. High efficiency automatic hydraulic grabor low speed mechanical grab?

5. Confirm the grab crane span, max lifting height, long traveling distance and control method.

6. If possible, you can also choose 2 cranes working together.

7. For steel scrap, you can also make the crane equipped both with magnetand grab at same time.

Get a Free Quote

FAQs

What is a steel scrapyard gantry crane with lifting magnet used for?

This crane is specially designed for scrap yards and recycling facilities to lift, sort, and transport ferrous metal scrap. It uses a powerful electromagnet to efficiently pick up metallic waste for handling and processing.

What makes your magnet gantry crane suitable for harsh environments?

The crane features a unique magnetic circuit design for increased magnetism density, vacuum-dried and glue-filled insulation for better performance, constant control voltage with optional over-excitation for boosted lift capacity, high-temperature protection, and a backup battery system to prevent drop-off during sudden power loss.

What is the working duty classification of this crane?

The crane is designed for heavy-duty industrial use and conforms to ISO duty classifications A5 to A7, suitable for continuous and demanding operational environments.

What are the advantages of your magnet gantry crane over competitors?

Advantages include simplified installation and maintenance, long service life, high lifting efficiency, robust design tailored for high-temperature, dusty, and tough operating conditions, and built-in safety with backup battery systems.

Can the lifting magnet handle high-temperature scrap directly from furnaces?

Yes, the crane can be equipped with high-temperature–resistant magnets, paired with specialized heat protection measures to operate safely in elevated-temperature environments.

More Scrap Handling Crane Option

Discover more cranes for scrap and waste handling, including bridge magnet cranes, gantry magnet cranes, QC-type electromagnet cranes, grab overhead cranes, and accessories to meet efficient and safe lifting needs in various working conditions.

Get In Touch

Our teams are on hand to provide you with the right lifting solutions.

FEW TIPS

1.Load capacity: ton?

2.Span of the crane: m?

3.Max. lifting height of the crane: m?

4.What materials will be handled: ?

5.How many hours will the crane work per day: ?

6.Traveling distance of the crane: m?
