Overview

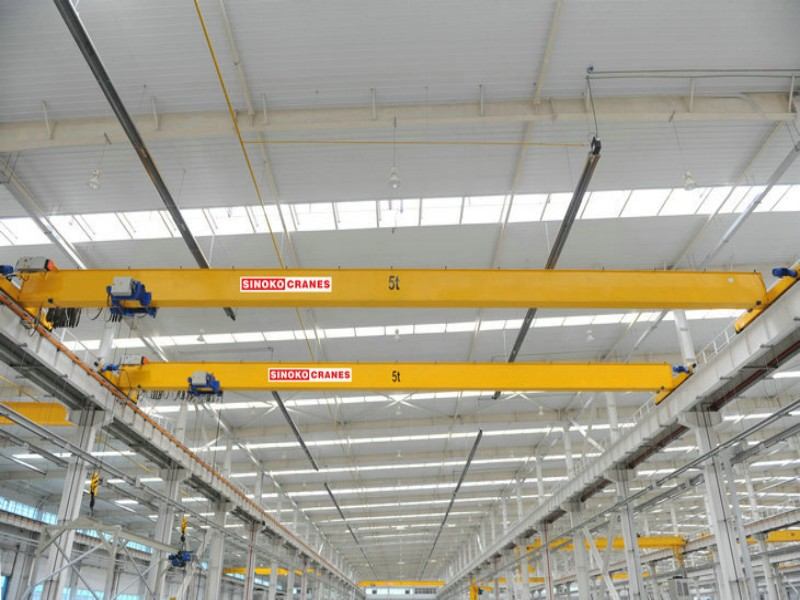

5 tons overhead crane (bridge crane) can be designed as single girder and double beam overhead crane according to the customer's working frequency, and can be designed as underhung or low headroom overhead crane according to the customer's workshop. All these cranes can be customized according to special requirements.
If you are not sure which type of 5 ton overhead crane is more suitable for you, you can send us your working hours and Factory pictures, our engineers will design your own material handling equipment for you.
Features
For 5ton Overhead Crane, we sinkocranes focus on details to ensure the high performance of our crane and high experience to our customer
| 5ton Overhead Crane Main beam The main beam adopts box-type structure and connects with end beams by high-strength bolt ensuring easy transportation. The professional processing equipment ensure the connection accuracy of main beamand end beam, making crane run steadily. |
5 ton Overhead Crane End beam End beams are the rectangular steel pipe and welding molding in a CNC machine tool positioning processing; each end beam is equipped with a double wheel rim wheel group, buffer and anti-derailment protection device. |
|
| 5ton Overhead Crane Hoist Ø Maximum space using Ø Precise operation Ø Low maintenance cost Ø Less fault downtime Ø Minimum hook limit space & distance Ø Standard world-renowned brands: SEW, ABM three in one type motor, Schneider electric parts |
5ton Overhead Crane Drum, Steel wire rope, Rope guide Ø The drum is made from high-quality seamless pipes and processed by numeral control CNC machine, after finish machining, the rope groove on drum works coordinately with rope guide to efficiently prevent rope loose and tangling. Ø Steel wire rope adopts high strength 2160N/mm2 imported wire rope, which has super safety performance and longer service life Ø Standard rope guide is processed from engineering plastics, with strong abrasion resistance and good self-lubricating performance. |
|
| 5 ton Overhead Crane Lifting mechanism gear box Shell of reduce uses aluminum alloy material, with light weight and corrosion resistance. Semi-grease lubricant in full sealed box gets all gears lubricated fully and should not be changed within the design circle for safety service. Each gear which gets the process of surface hardening and high-precision grinding ensures stable running of gear box. Ø Small size and light weight Ø Running smoothly and steadily, low noise Ø Corrosion resistance and maintenance-free |
5 ton Overhead Crane Lifting mechanism brake The hoisting mechanism motor equipped with double-disc electromagnetic brake. According to the safety regulations, SINOKO CRANE adopts the braking force of the brake higher than 1.8 times of the rated torque. Ø Fast movement and high reliability Ø Maintenance-free and self-regulated Ø Dustproof design and longer service life |
|
| Donly three in one type drive for 5 ton Overhead Crane Ø Drive mechanism is sealed three in one type. Ø Self- lubricating Ø Maintenance free Ø Inverter control Ø Stable running Ø Reliable quality Ø Low noise |
Limit Switch for 5 ton Overhead Crane The hoist is equipped with the upper and lower end rotating chip circuit limiting device, and also can be selected with the touch top limit. At the same time, the machine is equipped with an overload protection device to ensure the safety of the operation. |
|
| Hook for 5 ton Overhead Crane Standard swing hook The hook can be freely rotated in the range of 360 degrees, vertical and 180 degrees, and the loading and unloading of the square change goods. |
Hoist cable dragging system for 5 ton Overhead Crane Ø Consisting of flexible flat cable, C-shaped steel slide Ø Flat cable with good flexibility Ø Aerial socket connecting, one to one correspondence, convenience of connection Ø Maintenance free, long operating life. |
|
Specification
Item | 5ton Europe Design Single Girder Overhead Crane |
Main Electrical System | Schneider Brand |
Frequency converter/VVVF Drive | Schneider Converter |
Lifting mechanism | ABM/SEW Three in One Mechanism (Motor & Reducer & Brake) |
Travelling Mechanism | DONLY Three in One Mechanism |
Wire Rope | PFEIFER |
Wire Rope Safety Factor | 5 times |
Wire Rope Drum | Rolling Steel Plate |
Bearing | SKF / drum, hook set, pulley. |
Crane wheel | Forged type-42CrMo |
Travelling cable | High Temperature Resistance Cable |
Buffer | Black rubber buffer |
Power Source/ Control Voltage | 380V 50HZ 4P AC/48V |
Motor Insulation & Stator Protection | Class H & IP54 |
Working Temperature | 60℃ |
Cover Plate under Beam | Q345B |
Main structure Steel material | Q235 |
Painting | Shot blast Cleaning Dispose- 2 Grade, Epoxy Primer, Anti-corrosion Paint, Polyurethane surface painting |
Safety Feature | Lifting and travelling limit switches; Emergency Stop; Loss voltage protection; Grounded protection; Overload protection ;Short circuit protection; Overheating protection ; Over speed protection Over current protection; Faulted phase protection |
CASE
Interested in how this crane performs on actual job sites? Check out our real-world project cases to see how Sinoko lifting solutions are applied across different industries.
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a Quote
5T LDA Single Beam Overhead Crane for Ethiopian Textile Factory
Boost your lifting efficiency with our 5T Single Girder Bridge Crane — reliable, durable, and built for performance. Perfect for workshops, warehouses, and industrial handling.
Learn More Get a QuoteFAQs
The wireless remote control lets operators maintain a clear view of both load and surroundings while staying safely distant from moving parts—boosting safety, visibility, and ease of use compared to pendant or cabin controls.
The main beam employs a box-type structure connected to end beams by high-strength bolts for easy transport and alignment, while end beams—crafted from CNC-welded rectangular steel—are fitted with double-rimmed wheels, buffers, and anti-derailment devices to ensure stable travel.
The hoist assembly includes a seamless steel drum, premium 2160 N/mm² wire rope, and an engineered rope guide to prevent slack. The gearbox is a sealed three-in-one unit (motor, reducer, brake) with hardened gears and semi-grease lubrication—offering smooth, low-noise, maintenance-free performance.
This model includes upper and lower limit switch circuit protection, selectable touch-limit stops, overload protection, double-disc electromagnetic braking (with braking force >1.8× rated torque), and a rotating hook capable of 360° rotation and 180° swiveling, enhancing both safety and operational flexibility.
Key specifications include a Schneider electrical control system with VVVF inverter drives, ABM/SEW "three-in-one" hoist mechanism, Pfeifer wire rope with 5× safety factor, SKF bearings, forged 42CrMo wheels, Class H insulation, IP54 protection, and structural steel made of Q235/Q345B with anti-corrosion painting and high-temperature cables.
Ideal for machinery shops, metal plants, warehouses, and ports, the 5‑ton overhead crane’s single-beam design, compact structure, and wireless control make it highly efficient, flexible, and safe—especially in complex or constrained material-handling environments.
