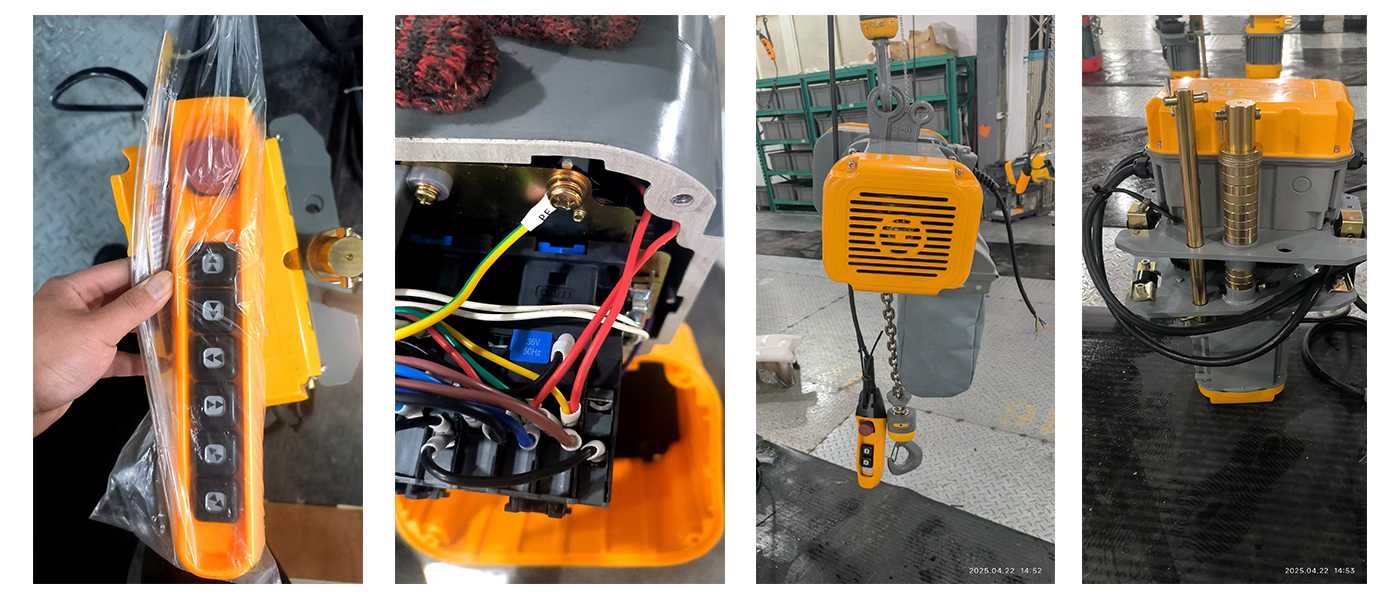

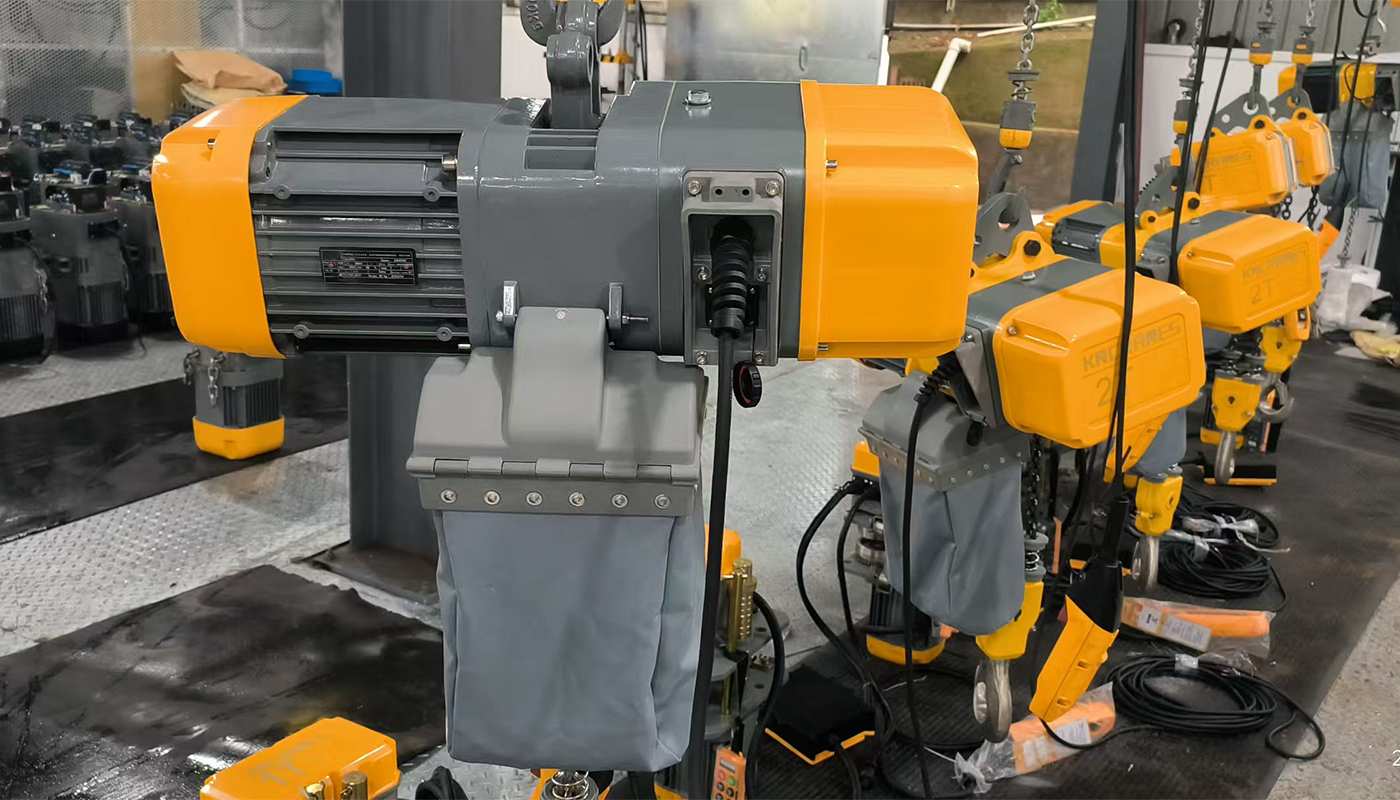

In April 2025, we successfully delivered a 1-ton European electric chain hoist to a metal processing plant in Germany. This project demonstrates the excellent performance of European chain hoists in precision manufacturing applications, with the customer giving high praise for product quality and technical support.
Optimized dimensions, saving installation space
Lightweight design, convenient for installation and debugging
Suitable for applications with limited space
Slow Speed: 2.2 m/min for precision positioning
Fast Speed: 6.8 m/min improving operation efficiency
Smooth switching without shock and vibration
IP55 protection rating
Dustproof and waterproof, suitable for harsh environments
Extended equipment service life
Power: 0.6/1.5kW (dual speed)
Insulation Class: F class (155°C)
Protection Rating: IP55
Duty Class: S1 (continuous duty)
Efficiency: ≥85%
Power Factor: ≥0.85
Excellent heat dissipation, low temperature rise
High-efficiency operation, energy saving
Strong overload capacity, high reliability
Low noise design, improved working environment
Diameter: φ7.1mm
Material: Alloy steel 40Cr
Strength Grade: Grade 80
Breaking Load: ≥31.5kN
Working Load: 1 ton (safety factor ≥5)
Quenching + tempering treatment
Hardness: HRC48-52
Excellent wear resistance
High fatigue strength
Fast: 6.8 m/min @ 1.5kW
Slow: 2.2 m/min @ 0.6kW
Speed Ratio: 3.09:1
Variable frequency technology achieving smooth speed regulation
Fast: 11 m/min @ 0.5kW
Slow: 3.6 m/min @ 0.2kW
Gear reduction ratio: Optimized design
Smooth operation, low noise
Control Voltage: 36V
Meets European EN Standards
Improves operator safety
Complies with human body safety current range
Transformer: 380V to 36V
Control Circuit: Low-voltage safety
Button Switch: 36V power supply
Emergency Stop: Fast response
Medium work class
Suitable for frequent but discontinuous use
Average daily use time: ≤2 hours
Load spectrum factor: Medium
Metal processing production lines
Mechanical assembly workshops
Warehouse logistics centers
Equipment maintenance
Slow mode 2.2 m/min: Fine adjustment
Controllable minimum movement distance
Avoiding workpiece collision damage
Fast mode 6.8 m/min: High-efficiency operation
Reduced auxiliary time
Optimized production cycle
15-20% capacity improvement
IP55 protection against metal dust
Anti-corrosion treatment extending service life
36V safety voltage
F-class insulation fire protection
Multiple safety protection
Top fixed type
Trolley travel type
Determined according to site requirements
Ensure appropriate chain tension
Avoid too tight or too loose
Ensure smooth operation
Upward limit: Reserve 300mm from top
Downward limit: Reserve 100mm from bottom
Limit switch: Reliable operation
Limit accuracy: ≤10mm
Phase sequence: Correct without error
Grounding: Resistance ≤0.1Ω
Insulation: ≥10MΩ
36V voltage: Stable
No-load Test: 10 lifts in each direction, smooth without abnormal noise
Rated Load Test: Normal operation without abnormalities
125% Overload Test: Safe and reliable
Braking Test: Distance ≤50mm
Noise: ≤85dB(A)
Delivery: On time
Product Quality: Meets German standards
Customer Satisfaction: Extremely high
Subsequent Orders: Under discussion
This 1-ton European electric chain hoist, with its IP55 rating and dual-speed precision (2.2/6.8 m/min), delivers the reliability and safety needed for demanding metal processing applications, as proven in a recent German installation.
