Electric Explosion Proof Chain Hoist

Electric Explosion Proof Chain Hoist

The series of explosion-proof electric chain hoists produced by our company are verified through safety explosion proof. Our company can also customize the low headroom explosion-proof electric chain hoist designed for limited lifting space. The low headroom explosion-proof electric chain hoist can achieve the maximum lifting height in a limited space. All specifications of the low headroom explosion-proof electric chain hoist are equipped with upper and lower limit safety devices (power cut limiters) to ensure safer lifting and lowering.

Overview:

The series of explosion-proof electric chain hoists produced by our company are verified through safety explosion proof. The explosion-proof electric hoists are as follows:

GB 3836.1-2010 "Explosive atmospheres Part 1: General requirements for equipment"
GB 3836.2-2010 "Explosive atmospheres Part 2: Equipment protected by flameproof enclosure "d""
JB/T 10222-2011 "Explosion-proof electric hoist"
JB/T 5317-2007 Electric Chain Hoist
Q/LA 0003-2014 "explosion-proof electric chain hoist" requirements, made of flameproof type, explosion-proof mark "Ex d IIB T4 Gb.
Explosion-protected hoist suitable for hazardous areas of explosive atmospheres and explosive mixtures of steam and air in factories.


Explosion-proof electric chain hoist use environment:

(1) Below 1000 meters above sea level.
(2) The ambient air temperature is not higher than +40℃. and not lower than -20℃.
(3) The grid fluctuation is ±10%.
(4) The relative humidity does not exceed 95%, which can prevent dripping.
(5) Zone 1 or Zone 2 of the explosive atmosphere in Class IIB and T4 temperature groups in the factory.

Features

Explosion-proof chain electric hoist adopts the transmission, hanger and motor three major axial assembly of the advanced structure, this structure is not only convenient maintenance, but also has a good sealing effect, especially more suitable for outdoor and dusty occasions. The power of the explosion-proof hoist is the use of China's new disc brake motor, the electric has the advantages of small volume and reliable braking, sensitive, strength wear resistant steel chain stability and safety. It is an ideal small lifting tool.


Explosion-proof chain hoist technical parameters:


ModelCapacity (t)Chain Qty.Lifting Height (m)Lifting Speed (m/min)Traveling Speed (m/min)Lifting Motor (KW/Rotating)Traveling Motor (KW/Rotating)
01-01113~306.810/201.5kw/1430r/min0.75kw/1430r/min
02-01213~306.810/203.0kw/1430r/min0.75kw/1430r/min
03-01223~303.410/201.5kw/1430r/min0.75kw/1430r/min
03-02313~305.410/203.0kw/1430r/min0.75kw/1430r/min
03-03333~303.410/203.0kw/1430r/min0.75kw/1430r/min
05-02523~302.710/203.0kw/1430r/min0.75kw/1430r/min
7.5-037.533~301.810/203.0kw/1430r/min0.75kw/1430r/min
10-041043~302.710/203.0kw*2/1430r/min0.75kw/1430r/min
15-061563~301.810/203.0kw*2/1430r/min0.75kw*2/1430r/min
20-082083~301.310/203.0kw*2/1430r/min0.75kw*2/1430r/min
25-1025103~301.110/203.0kw*2/1430r/min0.75kw*2/1430r/min
30-1230123~300.910/203.0kw*2/1430r/min0.75kw*4/1430r/min
35-1635163~300.710/203.0kw*2/1430r/min0.75kw*4/1430r/min

Specification

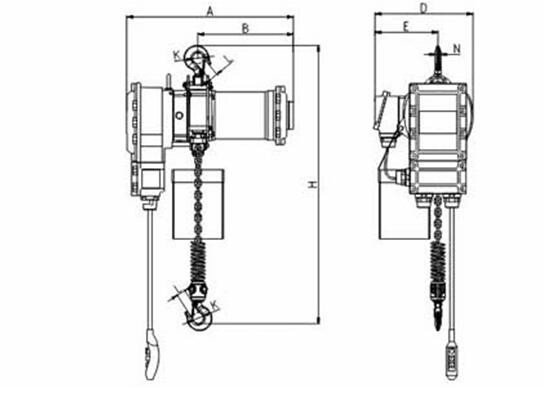

Explosion-proof electric chain hoist size chart:
Model
Cap/ton
Unit/mm
Chain Dia.
H
A
B
D
E
K
L
N
M
J
Q
01-01
1
600
600
330
300
176
Φ40
31
24
/
/
/
7.1
02-02
2
750
600
330
300
230
Φ49
35
30
/
/
/
7.1
03-01
3
920
600
330
350
280
Φ59
42
35
/
/
/
7.1
03-02
3
845
675
325
430
265
Φ59
42
35
/
/
/
11.2
03-03
3
950
675
325
430
320
Φ59
42
35
/
/
/
10
05-02
5
1030
675
325
430
325
Φ60
45
43
/
/
/
11.2
7.5-03
7.5
1200
675
350
500
320
Φ90
70
50
/
/
/
11.2
10-04
10
1400
725
350
890
445
Φ90
70
50
/
/
/
11.2
15-06
15
1360
725
350
1030
 /
Φ110
80
85
88
Φ70
520
11.2
20-08
20
1250
725
350
1220
 /
Φ110
80
85
88
Φ70
/
11.2
25-10
25
1700
725
350
1315
 /
Φ140
100
95
96
Φ80
/
11.2
30-12
30
1640
915
458
1380
 /
Φ140
100
95
228
Φ90
/
11.2
35-16
35
1790
915
458
1600
 /
Φ200
140
135
235
Φ100
440
11.2
About the explosion-proof electric chain hoist price or you use the explosion-proof electric chain hoist, installation, maintenance call the explosion-proof electric chain hoist factory sales staff to consult! contact us.
