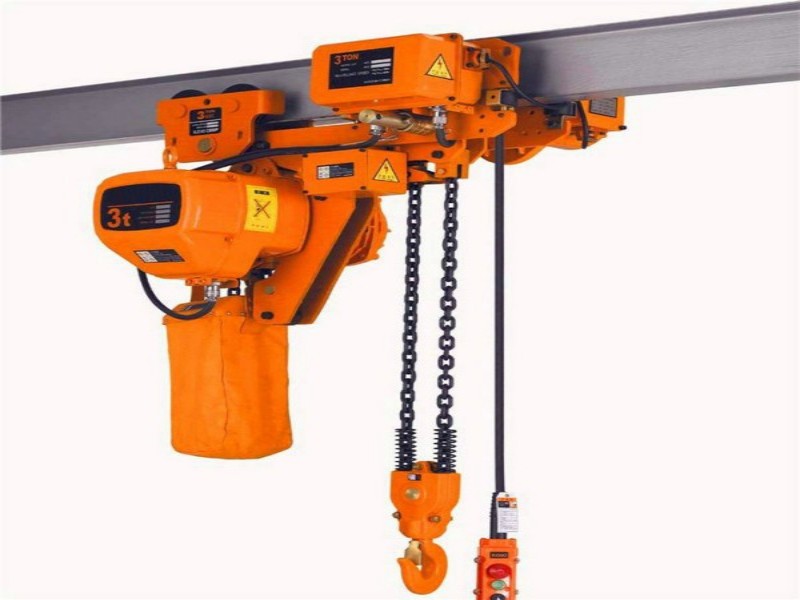

3 ton Electric Chain Hoist

3 ton Electric Chain Hoist

The electric chain hoist has a lifting capacity of up to 3 tons (3000 kg) and a single lifting speed of 17.7 FPM, 14.4 FPM and 7.2 FPM, corresponding to 1, 2 and 3 chains respectively. The three-phase 400V electric chain hoist is ideal for lifting and moving heavy objects in industry.


Overview:

The electric chain hoist is operated by the button on the ground, and can also be operated by wireless remote control. The electric hoist has a high working level, good safety performance, high reliability, low failure rate, the chain runs in the sprocket, is not easy to fall off or jump, and is more stable to use.

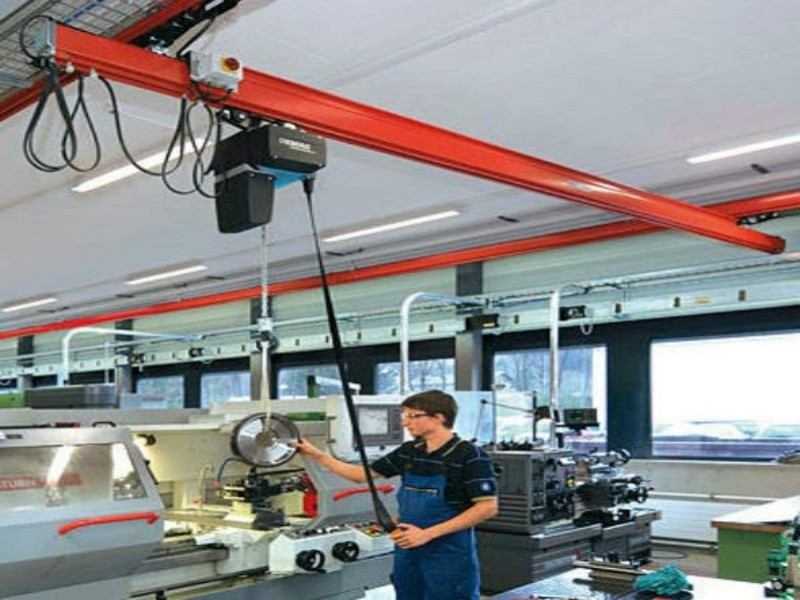

Application of Electric Chain Hoist

Electric chain hoist is widely used in overhead cranes, workstation cranes or jib cranes.

ELECTRIC CHAIN HOIST1 1200.jpg

Features

electric chain hoist - 1200.jpg


Friction Clutch

Originally developed overload protection device, slipping the motor force by separating gears of transmission

Load Chain

Grade 80 heavy strength alloy steel load chain, made in Japan

Pendant Control

Ergonomic design for user friendly.

Solid and durable.

With "   Emergency Stop" button as   standard for safety.

Air cooled motor fan

Aluminum die-cast motor frame with air cooled fan, can reduces the motor   temperature during frequent operation

Unique Fins of MotorFrame

High efficiency on motor cooling

New Limit Switch & Senser

New design limit switch and senser can improve the headroom of hoist and tolerate larger angle of lifting.

Hook & Hook Safety Latch

High strength forged alloy steel hook

With safety latch, allows 360"rotation in smooth and easy.


Specification

Capacity

Lifting

Height(m)

Lifting speed(m/min)

Lifting motor

Operating motor

Runway beam(mm)

Power(Kw)

Rotating speed(r/min)

Power(Kw)

Traveling speed

1 ton

3

6.6

1.5

1440

0.4

11/21

58-153

1.5 ton

3

8.8

3

1440

0.4

11/21

82-178

2 ton

3

6.6

3

1440

0.4

11/21

82-178

2 ton

3

3.3

1.5

1440

0.4

11/21

82-178

2.5 ton

3

5.4

3

1440

0.75

11/21

100-178

3 ton

3

5.4

3

1440

0.75

11/21

100-178

3 ton

3

4.4

3

1440

0.75

11/21

100-178

5 ton

3

2.7

3

1440

0.75

11/21

100-178

7.5 ton

3

1.8

3

1440

0.75

11/21

100-178
