Buyer Guide for Gantry Crane



Gantry Crane Information


I. Customer Information

Name

Customer Company

Email

Phone

Address



II. Application Occasion

Lifting material


Temperature
Highest temperature

_______0C
Lowest temperature

_______0C

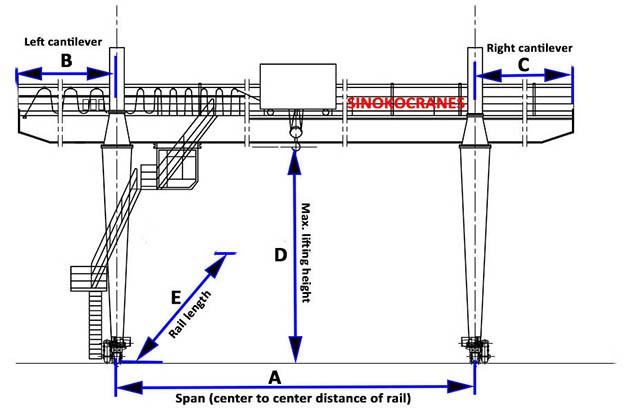

III. Gantry Crane Dimensions


A - Span(m)


B - Left cantilever(m)


C - Left cantilever(m)


D - Lifting height(m)
Main hook


Auxiliary hook


E - Railway length(m)





III. Gantry Crane Specification


SPECIFICATION

Option
Beam Configuration
A. Single Beam  B. Double Beam
Capacity(ton)
Main hook


Auxiliary hook


Speed(m/min)
Main hook
A. Single ____   B. Double ____ /____   C. Inverter Control ____--____
Auxiliary hook
A. Single ____   B. Double ____ /____   C. Inverter Control ____--____
Cross travel
A. Single ____  B. Inverter Control ____--____
Long travel
A. Single ____  B. Inverter Control ____--____
Working Class
Main hook
A. M3  B. M4  C. M5  D. M6  E. M7  F. M8
Auxiliary hook
A. M3  B. M4  C. M5  D. M6  E. M7  F. M8
Cross travel
A. M3  B. M4  C. M5  D. M6  E. M7  F. M8
Long travel
A. M3  B. M4  C. M5  D. M6  E. M7  F. M8
Industrial Voltage
____V ___Hz 3phases
Control Mode
A. Remote Control  B. Pendent Line Button Control  C. Cabin Control
Hook Attached Accessary
A. C-hook  B. Grab Bucket  C. Magnet
D. Magnet spreader  E. Ladle  D. Other____
