QC Electronic Magnetic Crane

QC Electronic Magnetic Crane

Also known as electromagnetic cranes, It is composed of double beam crane with electric magnet, these cranes are used to move and move metals such as steel. Magnetic cranes are mainly used in recycling plants and scrap yards.


Lifting Capacity:5t ~32t

Span:7.5m~35.5m

Working class:A5-A6

Main Electric Parts Brand:Schneider/ ABB

Isolation Grade:Class F

Main Electric Parts Brand:Schneider/ ABB

Working temperature:-20~50℃

Overview:

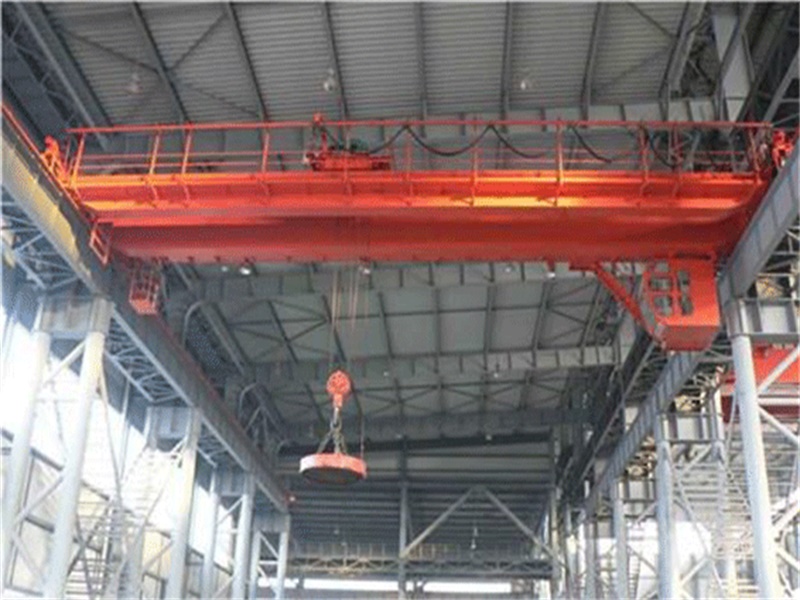

QC Electromagnetic Overhead Crane

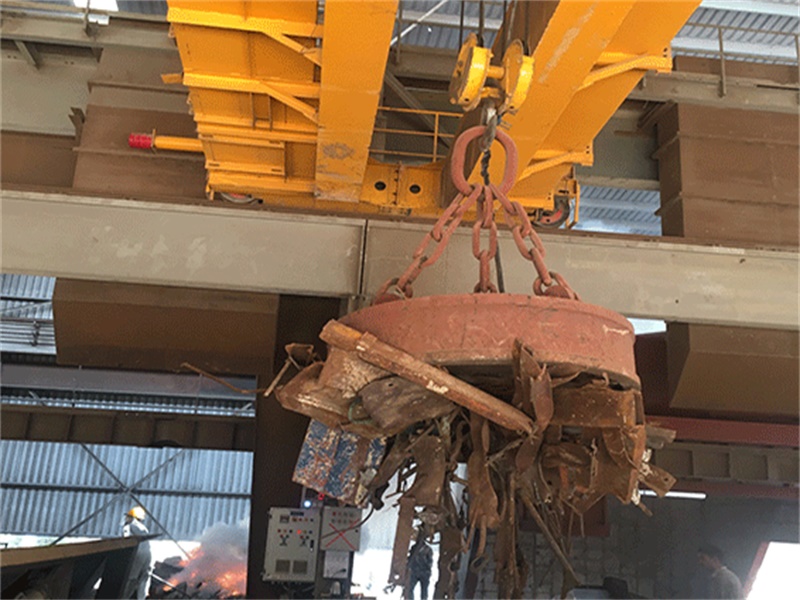

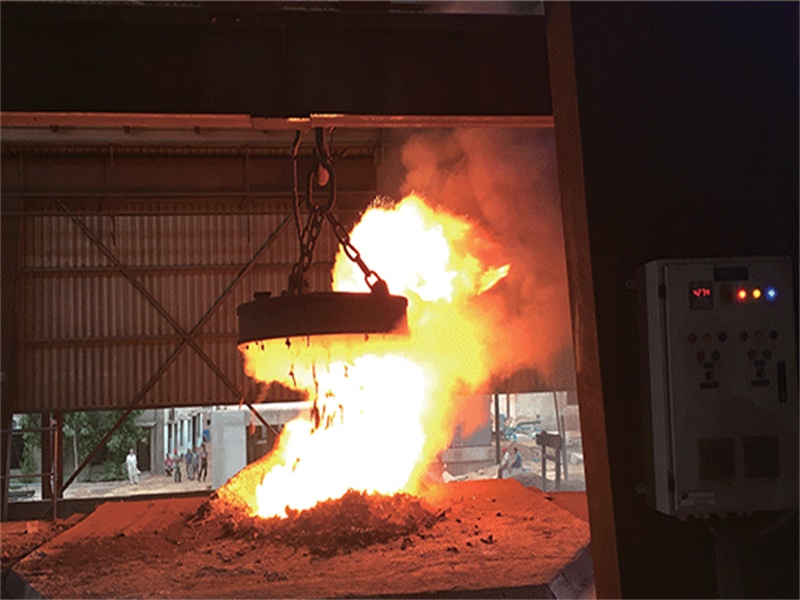

QC Electromagnetic Overhead Crane main part of the electromagnetic crane is the electromagnet. When the current is turned on, the electromagnet will firmly attract the steel objects and lift them to the designated place. Cut off the current, the magnetism disappeared, and the steel object was put down. The work of these cranes is simple; To move metal from one area to another. Magnets pick up metals, move them where they're supposed to go, and then the magnets are cut off, releasing the metal. Reliable power and automation cables are essential for these cranes because it runs through a constant current, and it often opens and closes and undergoes hard use.

The bridge electromagnetic driving is very convenient to used in scrap steel recycling departments and steel making workshops.

Features

1. Good quality with competitive price

2. Reasonable structure, favorable performance

3. Control the load easily and position the load exactly

4. Smooth starting and stopping

5. Superior safety and reliability

6. Low noise, commodious cabin and good view

7. Low dead weight low your cost

8. Easy maintenance for parts


Specification

Lifting Capacity5t ~32t
Span7.5m~35.5m
Lifting Height5m-30m
Working classA5-A6
Power supply380V, 50Hz, AC, 3-Phase our Customized
Control MethodCabin Control/ Radio remote control/ Pendent line control
Main Electric Parts BrandSchneider/ ABB
Motor BrandABB/SIEMENS
Level of protectionIP55
Isolation GradeClass F
Working temperature-20~50℃
Safety FeatureLifting and travelling limit switches; Emergency Stop; Loss voltage protection; Grounded rotection; Overload protection ;Short circuit protection; Overheating protection ; Overspeed protection ;Overcurrent protection; Faulted phase protection
