Outdoor RMG Type Rail Mounted Cantilever Travelling Gantry Crane

Outdoor RMG Type Rail Mounted Cantilever Travelling Gantry Crane

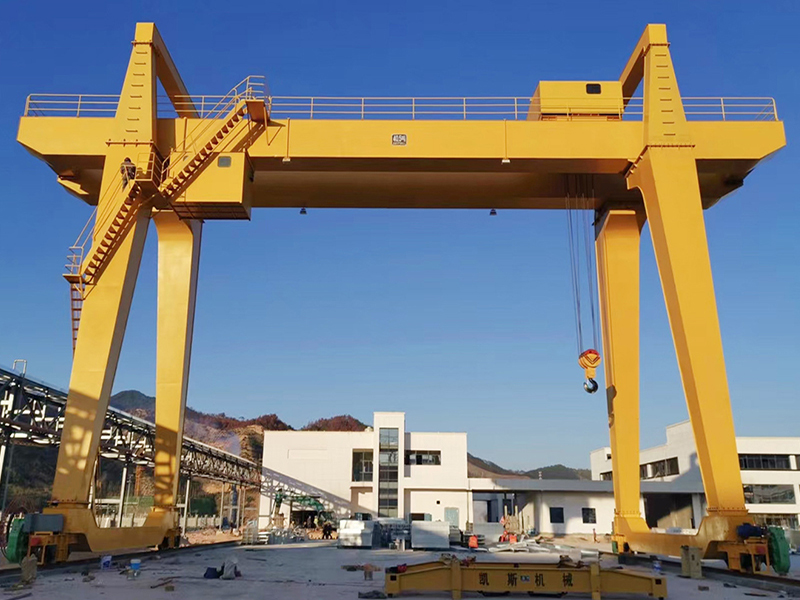

Outdoor rail mounted cantilever travelling gantry crane is an ideal lifting equipment which has cantilevers in order to increase the crane working area.

Outdoor RMG Type Rail Mounted Cantilever Travelling Gantry Crane is widely used at outdoors to load and unload materials, such as steel plant, cement plant, precast factory, marble factory, dock, shipyard, etc.

Overview:

Specification of Outdoor RMG Type Rail Mounted Cantilever Travelling Gantry Crane

1.       Capacity: Up to 200ton.

2.       Crane beam: single or double.

3.       Span: Up to 35m.

4.       Lifting height: Up to 40m

5.       Crane speed: Single type, dual speed type or variable drive control

6.       Max. Cantilever length: 1/3*crane span for each side.

7.       Trolley mechanism: Hoist or winch type.

8.       Working duty: A3-A8

9.       The customized is available according to crane working conditions.


Features

Features of Outdoor RMG Type Rail Mounted Cantilever Travelling Gantry Crane

1.       To increase crane working area and handle the material more conveniently.

2.       To improve the factory site utilization

3.       To enhance the crane working efficiency

4.       To save the cost of foundation construction

5.       To be designed flexible according to the crane working conditions.


Specification

Technical Parameter of Outdoor RMG Type Rail Mounted Cantilever Travelling Gantry Crane

Crane   Capacity

t

5~200

Span

m

18~35

Lifting   Height

m

6~40

Lifting   Speed

m/min

3.5~12.5   or variable drive control

Trolley   Speed

m/min

 2.9~44.6 or variable drive control

Crane   Speed

m/min

2.9~44.6   or variable drive control

Work   Duty


A3~A8

Recommended   Rail Type


P43   ~ QU100

Industrial   Voltage


According   to local condition of crane working site

Note:

1.         The customized type is   acceptable.

2.         The cantilever length can be   designed up to 1/3 of the gantry span.
