Overview:

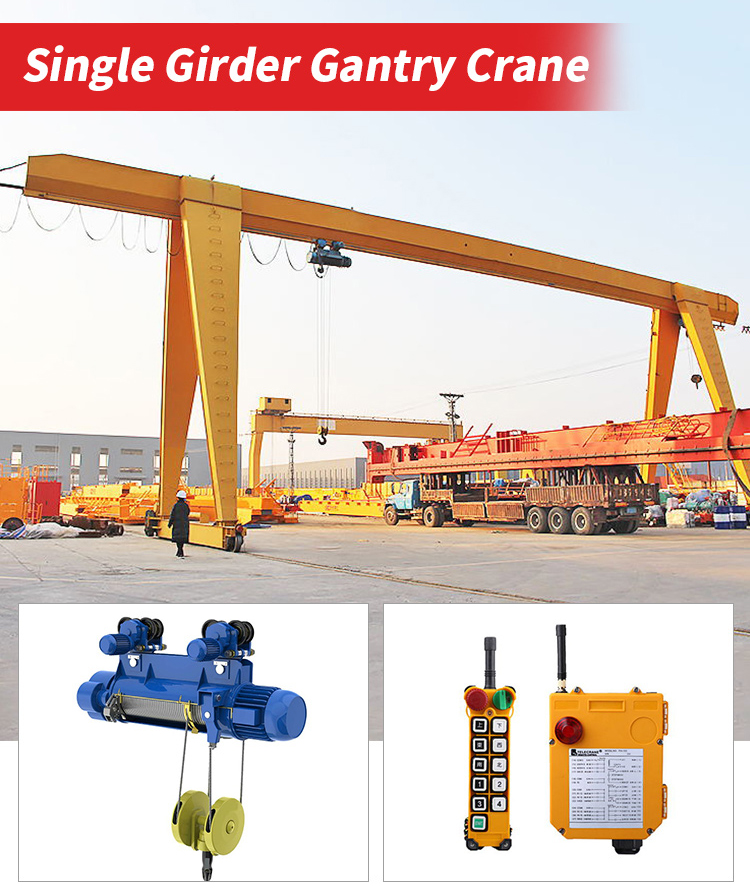

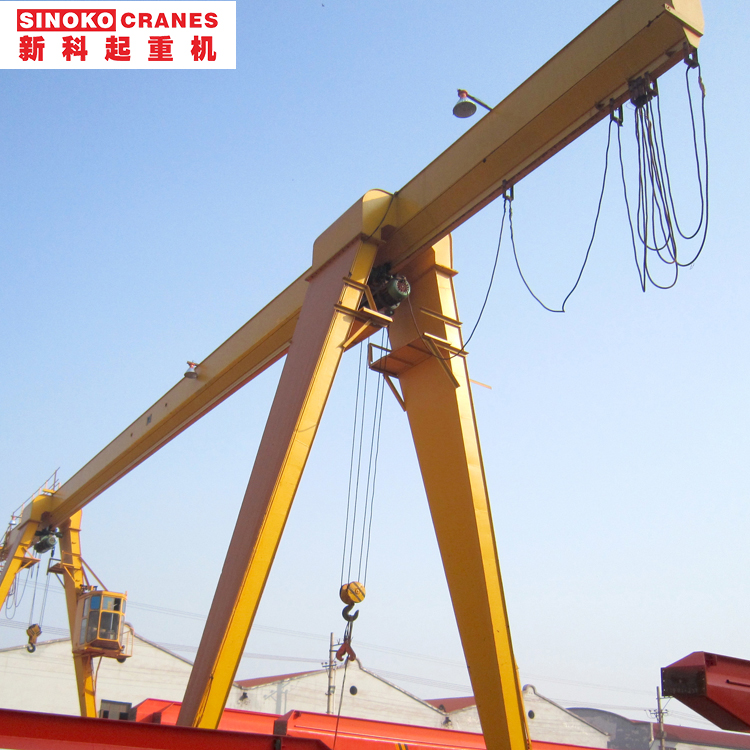

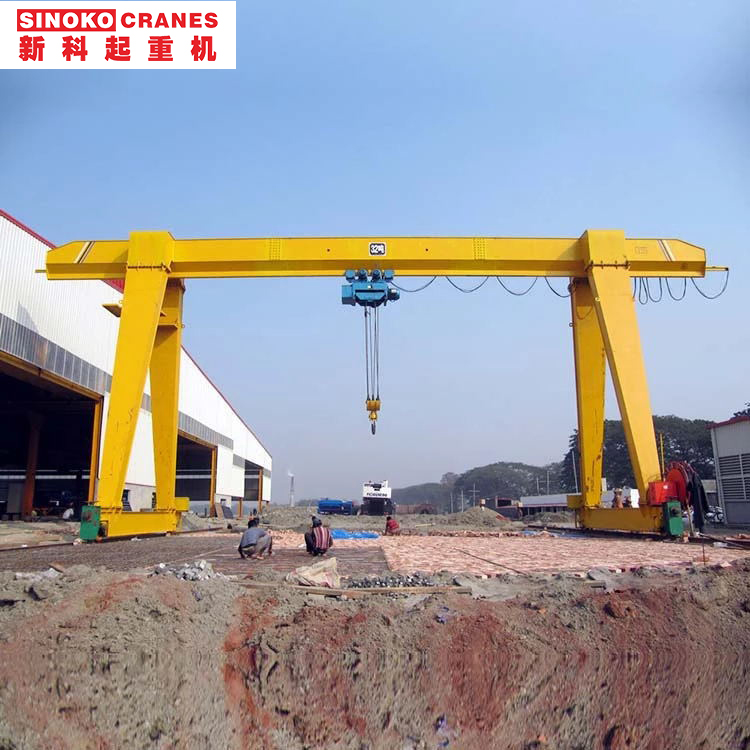

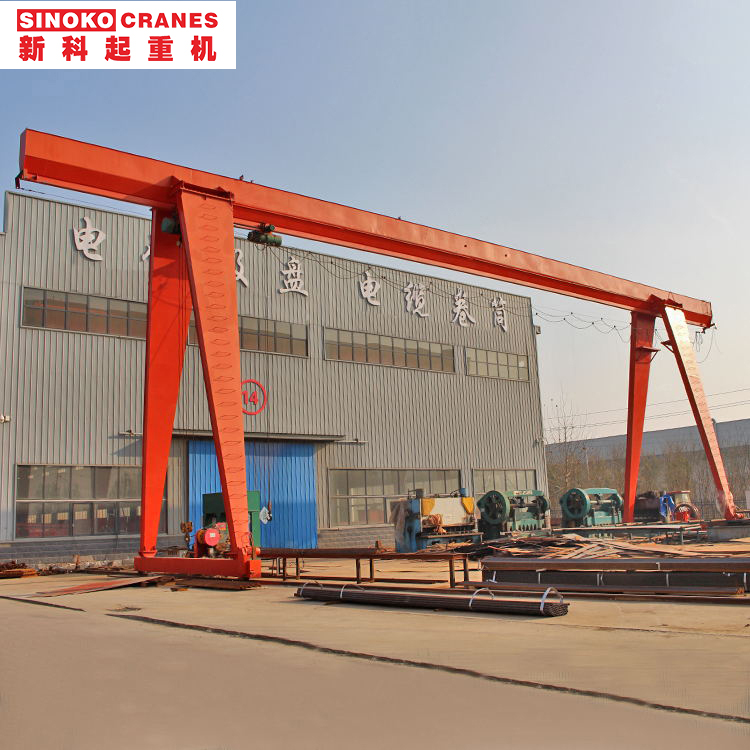

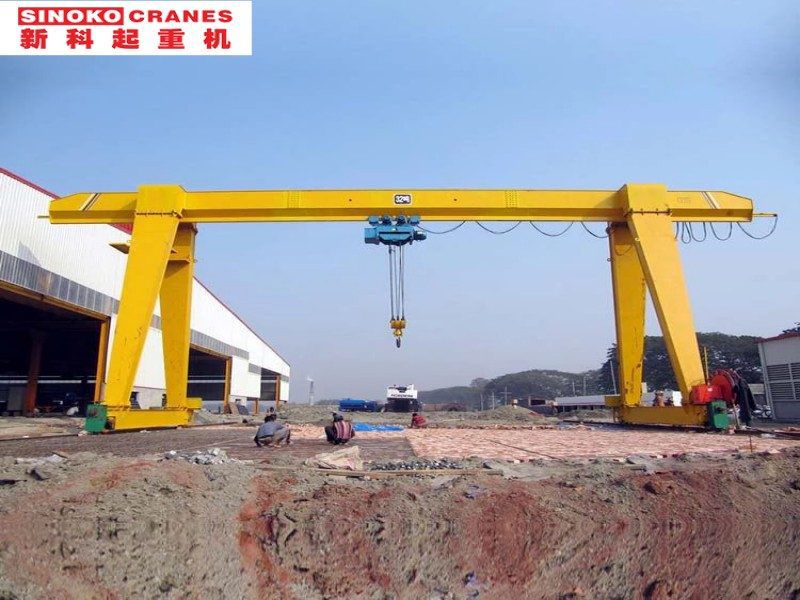

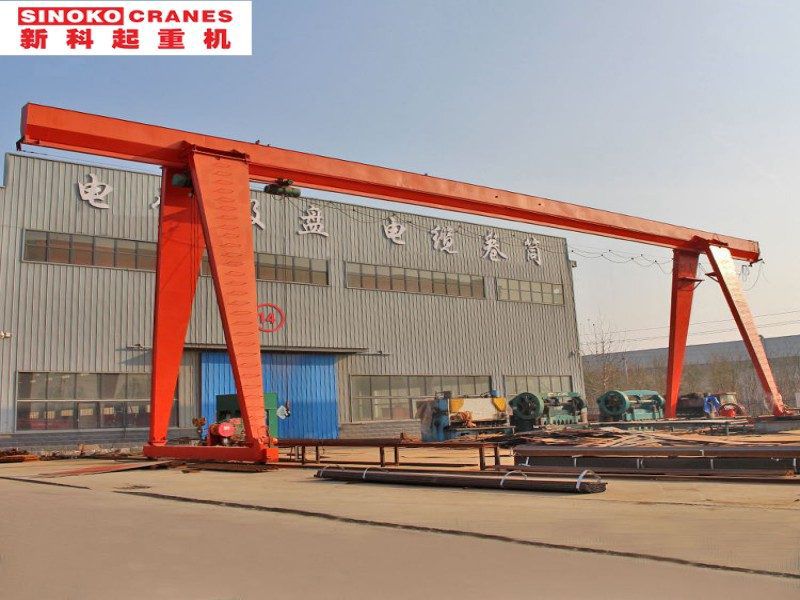

MH single girder gantry crane with wire rope hoist is small-medium type lifting equipment which runs at rail, it is mainly composed of gantry frame (girder, leg, ground cross beam, etc.), hoisting mechanism and electric control part. The electric hoist is hoisting mechanism; it runsalong the lower flange of the I-steel of the girder.
Light dead weight, simple structure and easy installation and maintenance, so it is applicable to outdoor operational sites of small-medium lifting load for general handing such as factories and mine, fright yards and warehouse.
Features
1. Simple operation. The site utilization rate is high, the operation range is wide, the adaptability is wide, and the versatility is good.
2. Reasonable structure. The structure is compact and reasonable, the performance is excellent, and the operation is stable.
3. High efficiency. Simple installation, easy operation and maintenance, and heavy lifting capacity.
4. Can be processed and customized. It can be processed and customized according to requirements, with various specifications and models.
Specification
Loading Capacity | 0.5~30t |
Lifting Height | 3~30m or customized |
Lifting speed | Single speed: 3~8 m/min or customized |
Span | 3~35m |
Lifting mechanism | Wire rope hoist or electric chain hoist |
Work duty | M3~M5 |
Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
Control method | Ground handle control(Push button),wireless remote control,cabinet control |
Application area | Factory,workshop,warehouse,power station,logistic,etc. |
Color | Red,yellow or customized |
Working temperature | -20~+40℃ |
Protection class | IP54; IP55; IP65 |
CASE
Explore Sinoko Crane’s MH Single Girder Gantry Crane with Wire Rope Hoist, designed for precise and efficient lifting. Perfect for light to medium-duty applications, this crane offers reliability, high performance, and safety for various industrial tasks.
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a QuoteFAQs
This crane is designed for light to medium-duty tasks, with customizable lifting capacities to meet specific needs.
The wire rope hoist provides smooth lifting and ensures greater reliability and efficiency for precision lifting tasks.
It’s ideal for warehouses, small to medium manufacturing plants, and material handling applications.
Yes, it is designed for both indoor and outdoor applications, offering flexibility for various work environments.
Features include a single girder design, wire rope hoist, high safety standards, and ease of operation.
Visit the product page or contact our sales team for a personalized quote and further details on customization options.
