Overview:

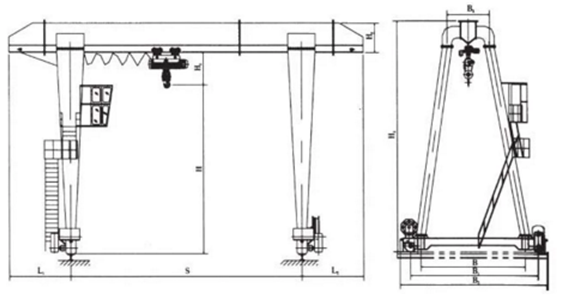

The metal structure of the utility model is like a portal frame, and two support feet are installed under the main beam, and the utility model can be directly carried on the track of the ground, and both ends of the main beam can be provided with overhanging cantilever beams.

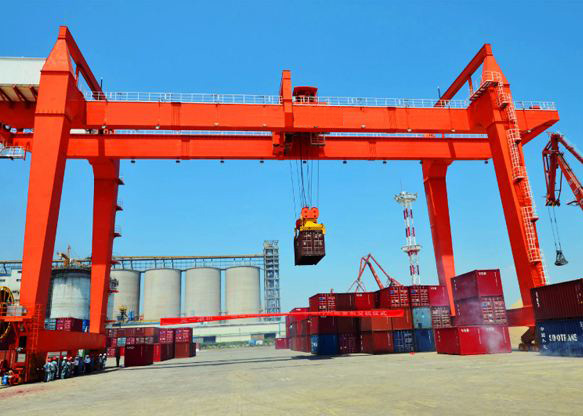

Gantry crane is widely used in the port yard because of its high utilization ratio, large range of operation, wide adaptability and versatility.
Features
1. Overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane traveling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Lifting height limit device.
We are a leading manufacturer of gantry cranes, offering light and heavy duty gantry cranes to meet every lifting need. The main models of 30-ton gantry cranes produced by our company are A type gantry cranes, U type gantry cranes, semi gantry cranes, truss gantry cranes, cantilever gantry cranes, portable gantry cranes, etc., which are well received by customers. Other designs can also be ordered. We can customize the 30-ton gantry crane system according to your actual needs.

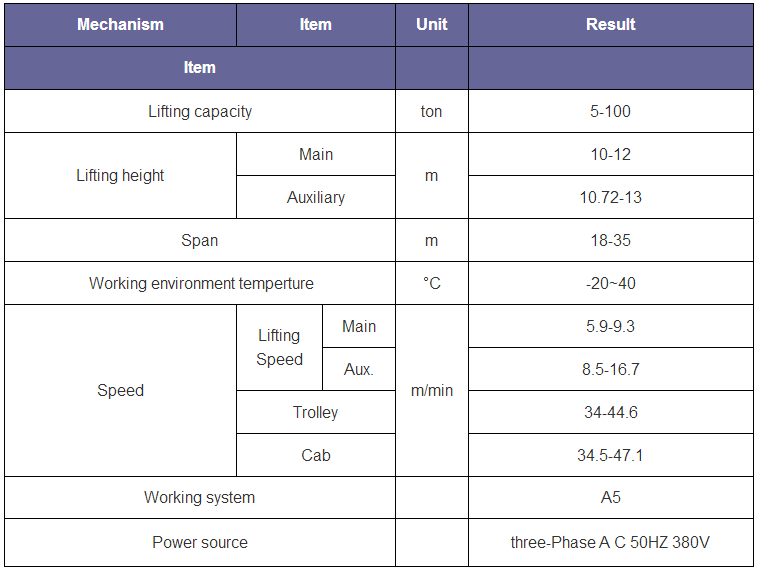

Specification
| Mechanism Item | Result | |
| Lifting capacity （ton） | 30 | |
| Lifting height (m) | Main | 10-12 |
| Auxiliary | 10.72-13 | |
| Span (m) | 18-35 | |
| Working environment temperture (℃) | -20~40 | |
| Speed (m/min) | Lifting Speed (Main) | 5.9-9.3 |
| Lifting Speed (AuX) | 8.5-16.7 | |
| Trolley | 34-44.6 | |
| Cab | 34.5-47.1 | |
| Working system | A5 | |
| Power source | 3-Phase A C 50HZ 380V | |
CASE
See how the Sinoko 30-Ton Remote-Control Gantry Crane transforms your lifting operations. With enhanced safety and precision control, it's perfect for heavy-duty tasks in construction, warehouses, and more. Explore real-world case studies and discover its impact on your business efficiency.
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a QuoteFAQs
The 30-ton remote-control gantry crane is designed for precise lifting and handling of heavy loads in industrial environments. It offers convenience and safety by allowing operators to control the crane from a distance, ideal for construction sites and warehouses.
The crane is equipped with an advanced wireless remote control system, allowing operators to move and lift loads without being in close proximity to the crane. This enhances safety and flexibility during operations.
Key benefits include enhanced safety, increased operational efficiency, precise load handling, and remote operation capability. The crane’s robust design ensures durability in tough working conditions.
Yes, Sinoko offers customization options for the 30-ton gantry crane, including different lifting heights, spans, and configurations. Our team is ready to assist with tailored solutions to meet your operational requirements.
Maintenance involves routine checks on the lifting mechanism, the remote control system, electrical components, and structural integrity. Regular servicing ensures the crane operates safely and efficiently over time.
Yes, the 30-ton gantry crane is designed for both indoor and outdoor use. Its durable construction and weather-resistant features make it ideal for handling heavy loads in various environments, including outdoor construction sites and port facilities.
