Project Background

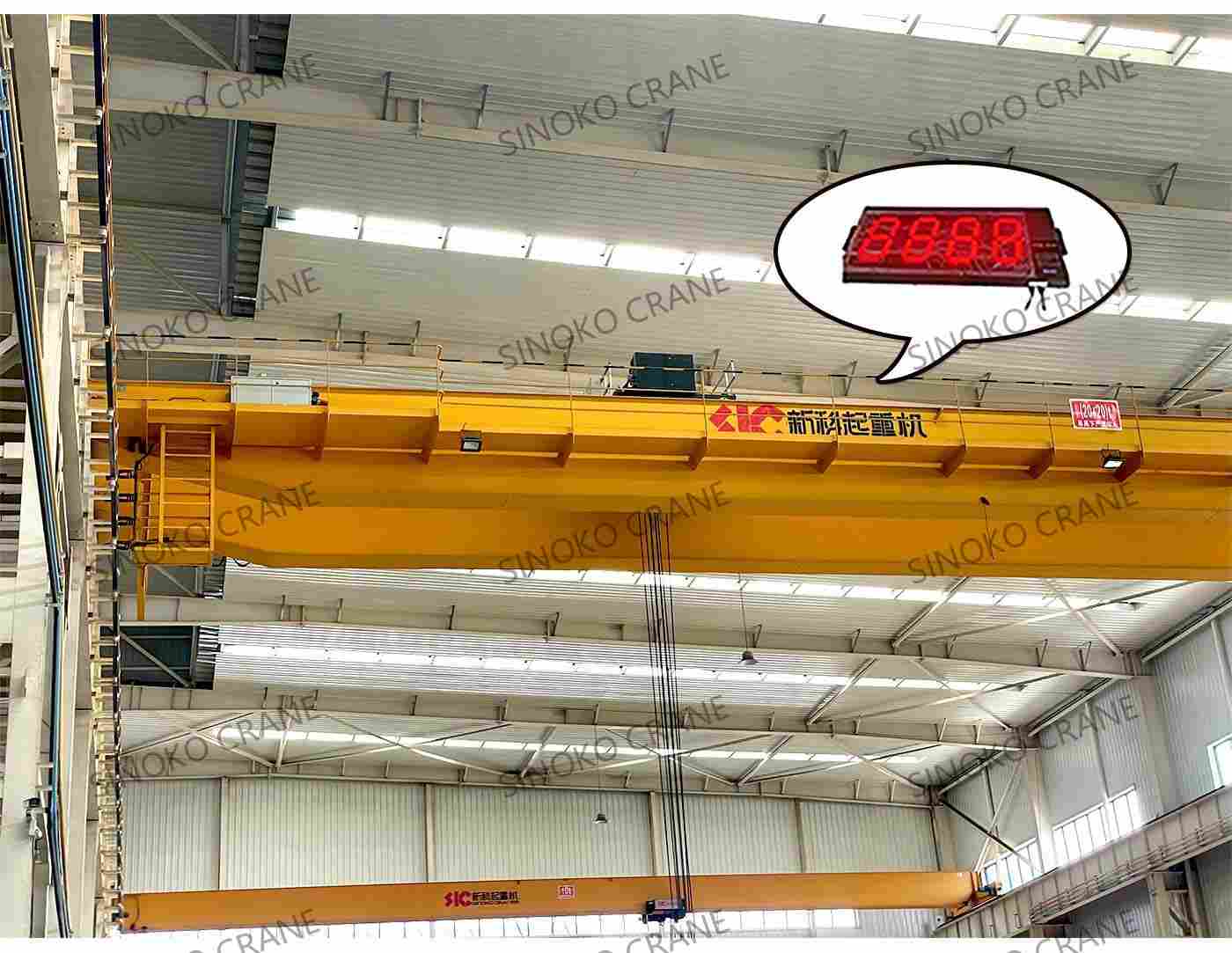

In 2025, we provided an 8-inch OLED crane load display to a repeat customer at a Pakistan engineering services company. The customer owns a
10-ton European double girder overhead crane and needed to install a real-time load monitoring system to improve operational safety. As a returning customer, they highly trust our product quality and service.
Importance of Crane Load Display
Crane load displays are critical for modern industrial operations, providing three key benefits.
Safety Assurance
Real-time display of current load prevents overload operations. The system includes warning alarm functions, significantly reducing accident risks on the workshop floor.
Efficiency Improvement
Quick load data reading helps optimize lifting operations. This reduces operation wait times and directly improves overall production efficiency.
Compliance Requirements
The system complies with international safety standards and meets regulatory requirements. It helps facilities pass safety certifications and avoid potential legal risks.
OLED-08 Display Technical Specifications
Display System
The OLED-08 features an 8-inch screen using advanced OLED technology. It provides high resolution with a contrast ratio ≥10,000:1 and wide viewing angle ≥170°.
Display Content
The screen shows current load value in large numbers and load percentage via a progress bar. A warning indication uses LED color coding: green for <80% rated load, yellow for 80-95%, and red for >95%. All data includes a time stamp for recording and traceability.
System Compatibility Requirements
100% Signal Matching
The system achieves full compatibility with the original crane's signal protocol. It uses standard sensor interfaces for real-time, accurate data transmission. Automatic zero drift calibration maintains accuracy with compensation ≤0.5% per hour.
Original Factory Accessory Matching
The display matches the original factory sensor model and connects via standard interface cables. Installation accessories are custom-designed, and complete technical documentation is provided.
Electrical Connection System Details

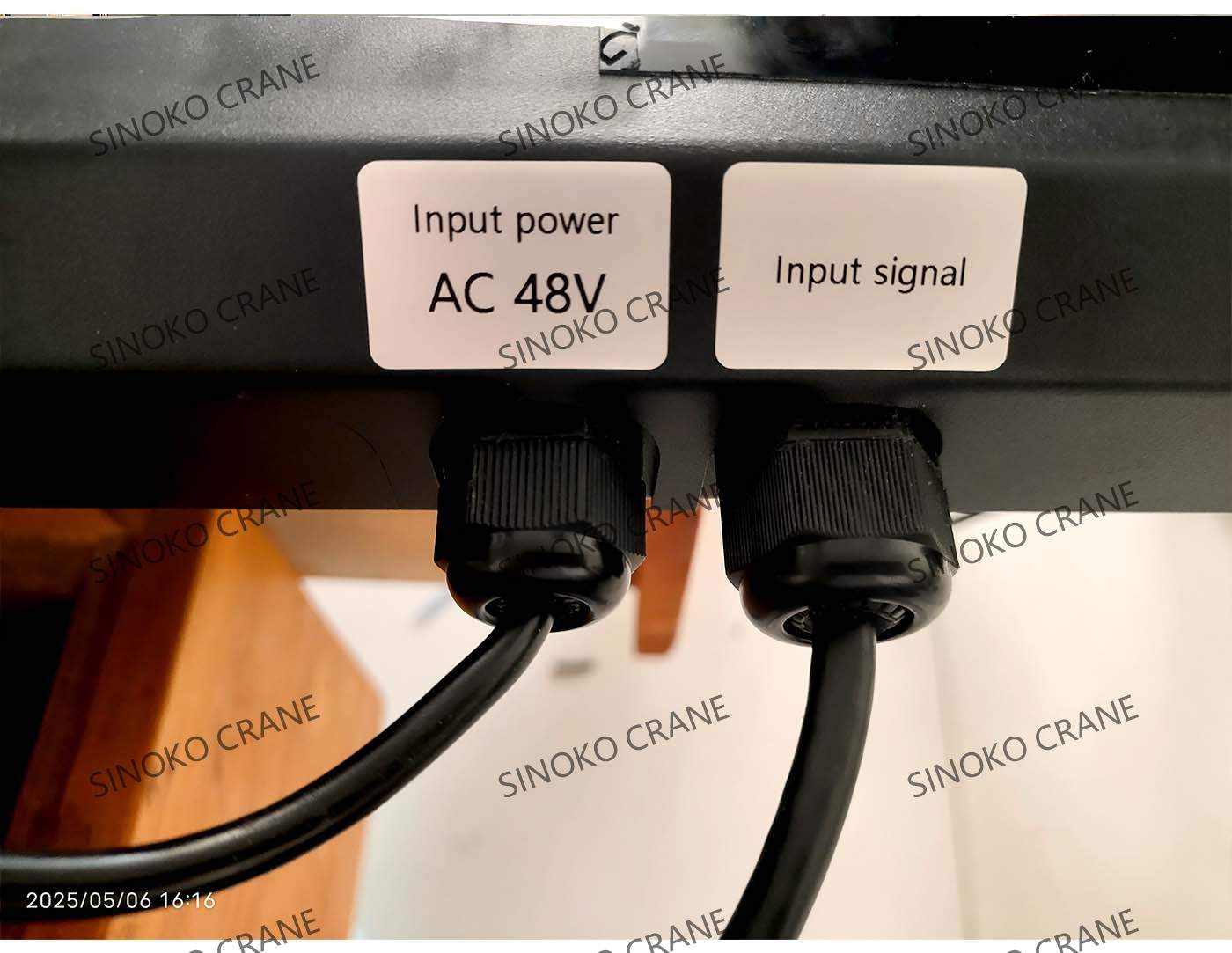

Power Configuration
The system adapts to crane power inputs (typically 24V DC or 220V AC) and provides display operating voltage (e.g., 12V DC). With low power design (≤15W consumption), it includes protection functions against overload, short circuit, and reverse polarity.
Power Cable Specifications
Standard 5-meter cables with appropriate cross-sections (e.g., 0.75mm²) ensure reliable power delivery. Industrial waterproof connectors and electromagnetic interference shielding maintain signal integrity.
Signal Transmission System
Signal Type
The system supports analog signals (4-20mA with strong anti-interference capability) and digital signals (RS485 Modbus for anti-interference and long-distance transmission). Custom protocols are available based on the original system requirements.
Signal Cable Specifications
Standard 5-meter cables use twisted pair design (e.g., 0.5mm²) with aluminum foil and tinned copper wire braided shielding. Industrial connectors (e.g., M12) ensure secure connections.
Anti-Interference Design
Twisted pair construction reduces common-mode interference while shielding prevents electromagnetic interference. Differential transmission improves anti-interference capability, and signal isolation provides additional protection.
Installation Adaptability
Installation Method
Multiple installation options include cabin wall mount (recommended), bracket mount for limited spaces, suspended type for special applications, and custom solutions for complex scenarios.
Installation Accessories
The
kit includes an angle-adjustable wall mount bracket (-30° to +30°), stainless steel fixing screws (e.g., M6×20), non-slip rubber washers, and shock-absorbing buffers.
Installation Position Optimization
For optimal viewing, install at operator eye level (1.5-1.7m height) directly facing the operator's field of view. Avoid strong direct light and implement protection against accidental collision.
Technical Challenges and Solutions
Challenge 1: Signal Compatibility
The original crane system's complex protocol required special handling.
Solution: Signal Compatibility
Deep analysis of the original signal protocol enabled customized signal processing. Laboratory testing verified 100% compatibility, with guarantees provided to the customer.
Challenge 2: Real-Time Requirements
Lifting operations demand real-time display without delays that could compromise safety.
Solution: Real-Time Performance
A high-speed ARM Cortex signal processing chip combined with optimized data sampling algorithms ensures low latency (<5ms response). A real-time data verification mechanism provides additional reliability.
Challenge 3: Environmental Adaptability
Industrial environments present challenges including high temperatures, dust, and vibration.
Solution: Environmental Durability
Wide temperature design (-20℃ to +70℃) with IP65 protection rating ensures operation in harsh conditions. Vibration and shock resistance with optimized heat dissipation maintain system reliability.
Engineering Application Value
Real-Time Monitoring Advantages
The system provides load data visualization with overload warning capabilities. It records operation data and enables historical data query for performance analysis.
Safety Protection Functions
Users can set warning thresholds and receive overload alarms. Operator reminders and operation safety records further enhance workplace safety.
Maintenance Management Support
The system monitors equipment status and tracks abnormalities. It provides maintenance cycle reminders and predicts service life for proactive management.
Project Results
The project achieved 100% signal matching compatibility with one-time installation success. System operation proved stable and reliable, resulting in extremely high customer satisfaction. This successful implementation demonstrates the practical value of integrating advanced display technology with existing crane systems.
