Project Background
Client: Tier-1 automotive parts supplier in Monterrey, Mexico, specializing in engine block machining.
Core Challenges:
Manual Handling Risks: Workers lifted 1.5–2.8T engine blocks using chain hoists, causing 15% surface scratches and 3 monthly injuries.
Space Constraints: 120m² assembly cell with robotic arms left zero floor space for traditional cranes.
Grid Instability: Voltage fluctuations (440V ±10%) disrupted existing equipment.
Solution:
Deploy Sinoko 3T European Jib Crane with space-optimized design and adaptive controls.
| Parameter | Specification | Client Value |
| Capacity | 3 tons | Handles 95% of engine blocks |
| Arm Length | 4.5 meters | 360° coverage in 6m diameter cell |
| Lifting Height | 4 meters | Clears 3.5m robotic arms |
| Rotation | 270° manual / 360° motorized | Avoids fixed obstacles |
| Hoist Type | VVVF Electric Chain Hoist | ±5mm precision positioning |
| Control | Pendant + Wireless Remote | Operator mobility in tight spaces |
Sinoko 3T Jib Crane: Key Features
A. Space-Optimized Engineering
Zero-Footprint Base: Cement-poured foundation (1.4m³) absorbs seismic forces (Zone 2 compliance) without floor reinforcements .
Low-Profile Boom: 320mm girder depth (vs. industry 450mm) enables 18% more clearance under low ceilings .
B. Precision Handling
VVVF Hoist Control: Acceleration/deceleration at 0.5 m/s² eliminates load sway during engine block transfers .
Dual Braking System: Primary electromagnetic brake + mechanical backup prevents drops during voltage spikes .
C. Industrial Resilience
IP54-Rated Components: Resists metal dust and coolant splashes in machining environments .
Voltage Tolerance: Handles 440V ±15% fluctuations via built-in stabilizers .
Implementation: Fast-Track Deployment
Phase 1: Site Prep (72 Hours)
Laser Leveling: Achieved ≤2mm foundation flatness for column stability .
Grid Hardening: Installed surge protectors at junction boxes (NOM-029-STPS compliant) .
Phase 2: Crane Integration
Modular Assembly: Pre-assembled boom and hoist mounted in 6 hours (minimizing production downtime) .
Validation Testing:
125% Load Test: Lifted 3.75T with ≤2° column deflection .
10,000-Cycle Sim: Validated A4 duty class endurance (150 lifts/day) .
Phase 3: Operator Training
Spanish VR Modules: Simulated collision avoidance in confined cells .
NOM-029 Safety Drills: Lockout/tagout procedures and emergency load lowering .
Quantifiable Results
Operational Transformation:
| Metric | Pre-Install | Post-Install | Improvement |
| Engine Block Damage | 15% | 0.2% | 98.7% reduction |
| Handling Time/Part | 8.5 minutes | 3.2 minutes | 62% faster |
| Monthly Worker Injuries | 3 | 0 | 100% safer |
| Energy Consumption | 9.2 kWh | 4.1 kWh | 55% savings |
Strategic Impact:
ROI: 11 months via reduced scrap and OSHA fines.
Scalability: Client ordered 6 additional cranes for stamping lines.
Cross-Industry Applications
| Industry | Use Case | Sinoko Adaptation |
| Automotive | Engine block positioning | ±5mm VVVF precision for mating heads |
| Aerospace | Turbine blade handling | IP54 protection against composite dust |
| Food Processing | Silo ingredient loading | Stainless steel hoist (FDA-compliant) |
| Warehousing | Machinery relocation | 270° manual rotation in narrow aisles |
Explore our full range of jib cranes designed to meet your lifting needs with precision and flexibility. With capacities ranging from 0.5T to 10T, our wall-mounted and pillar-mounted options provide smooth rotation, space-saving design, and reliable performance for any workshop or production environment. Discover the ideal solution for your workspace today!
5Ton Jib crane has the characteristics of high efficiency, energy saving, saving time, small occupying area, easy operation and maintenance. Get free solutions.

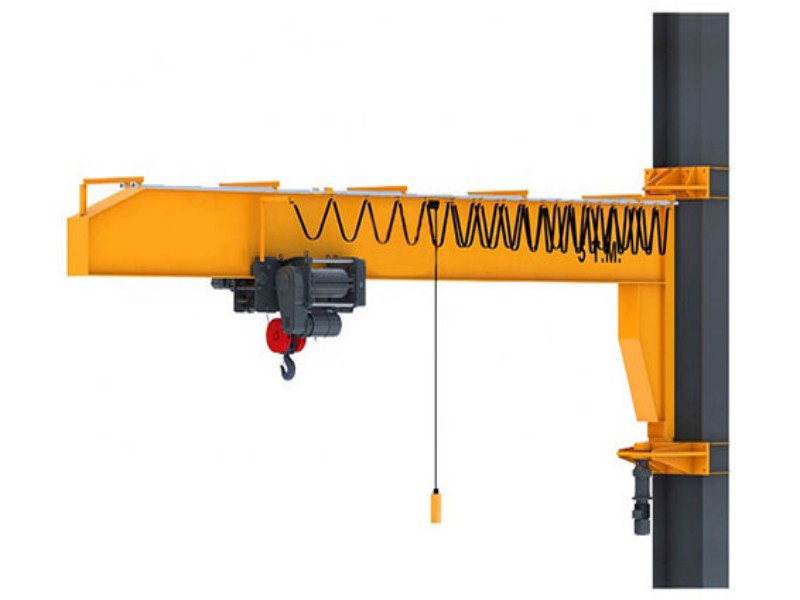

Learn More Get a QuoteWall Mounted Arm Slewing Jib Crane Price structure is unique, safe and reliable, with high efficiency, saving energy , saving time, saving effort and flexible features. Widely used in workshops, warehouses, terminals and other fixed places.
