Pillar Mounted Jib Crane

Pillar Mounted Jib Crane

Pillar mounted jib crane, also known as column mounted slewing jib cranes, has a lifting capacity of 125Kg-10000Kg. It is a product developed by cantilever crane manufacturers.

Pillar mounted jib crane can design customized special lifting equipment according to customer needs!

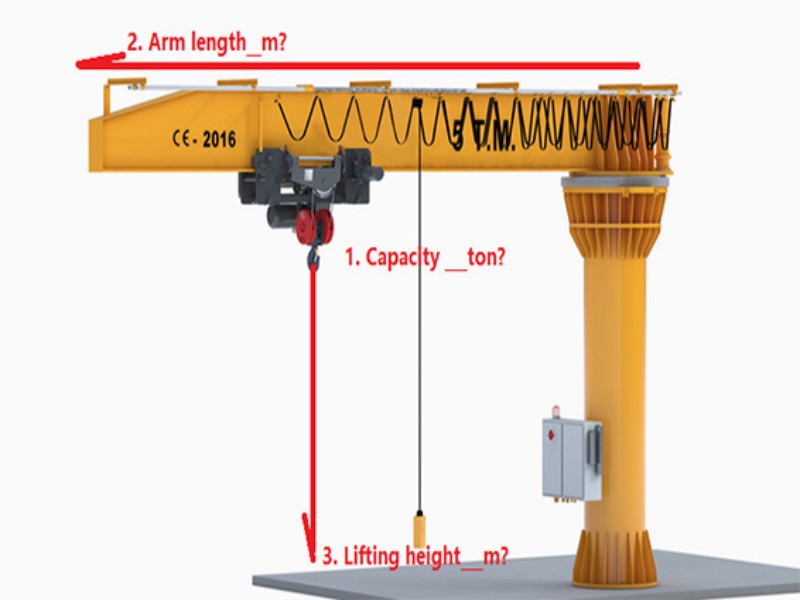

The pillar crane has a simple structure and is mainly composed of a column, a slewing arm, a jib device and an electric hoist.The electric hoist performs round-trip operation on the cantilever track or I-beam!

Overview:

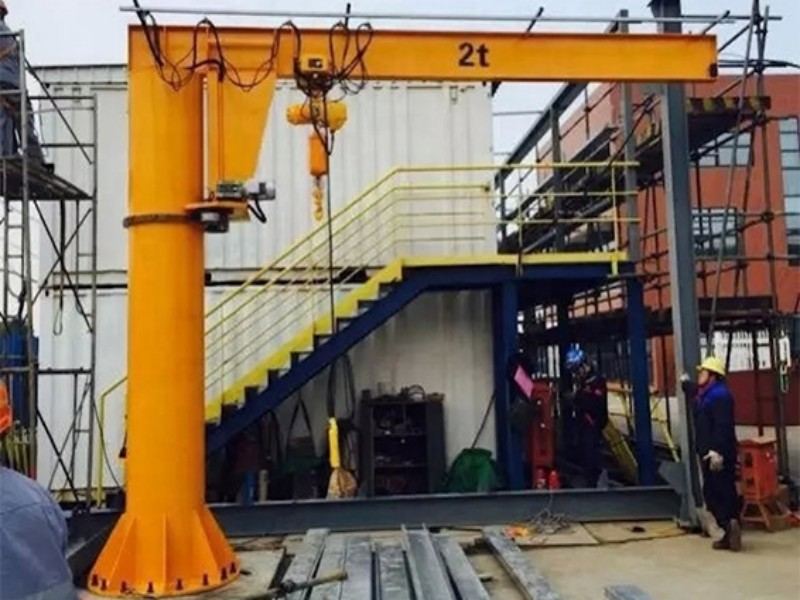

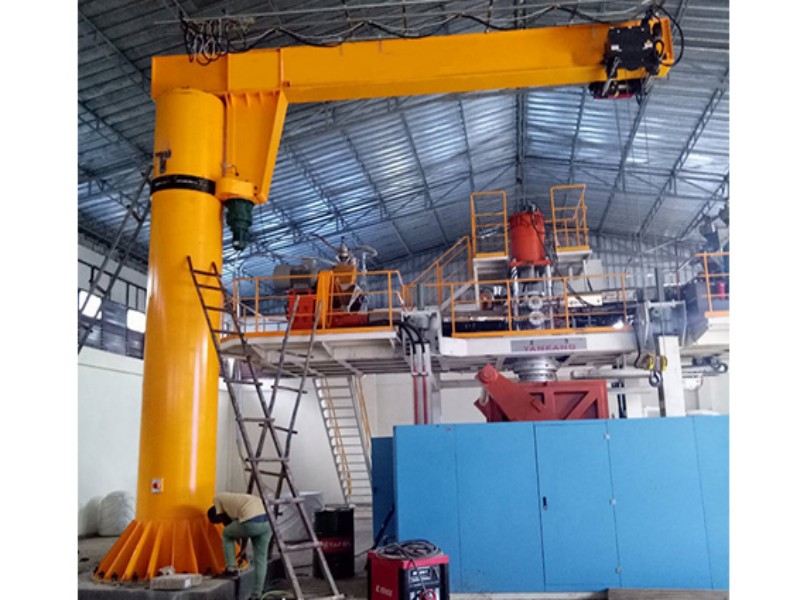

Pillar mounted jib crane is a small lifting equipment developed in recent years. Rated lifting capacity is 0.125~10T. pillar crane structure is unique, safe and reliable, with high efficiency, saving energy , saving time, saving effort and flexible features. And can take actions randomly in a three dimensional space, especially in short, intensive lifting occasions more shows than any other conventional lifting equipment unique advantages, widely used in workshops, warehouses, terminals and other fixed places.

Features

The pillar jib crane has the advantages of novel structure, reasonable, simple, convenient operation, large working space, etc. It is an energy-saving and high-efficiency material lifting equipment.


1. Compact structure: Easy to improve efficiency in narrow working area.

2. Wide rotating angle: Free to rotate from 90-360 degree, special designed rolled bearing to achieve smooth travel with low noise.

3. Cooper motor: Copper coil motor with strong drive, long service life and heavy duty.

4. Stable pillar bottom: To be fastened with Class 8.8 strong tensile bolt, more durable and safe working


Specification

ModelCapacity (kg)Arm Length (mm)Lifting height (mm)Ground pit size (mm)Bottom plate size (mm)
SJB-0.5500kg3000-6000215-3151000*1000*800
1200*1200*900
850*850*25*8
1000*1000*30*12
SJB-11000kg3000-6000265-4151400*1400*1100
1800*1800*1200
850*850*25*8
1000*1000*30*12
SJB-22000kg3000-6000315-5151600*1600*1200
2000*2000*1400
Non-advice
SJB-33000kg3000-6000315-5151600*1600*1200
2000*2000*1400
Non-advice
SJB-55000kg3000-6000415-5151600*1600*1200
2000*2000*1400
Non-advice
