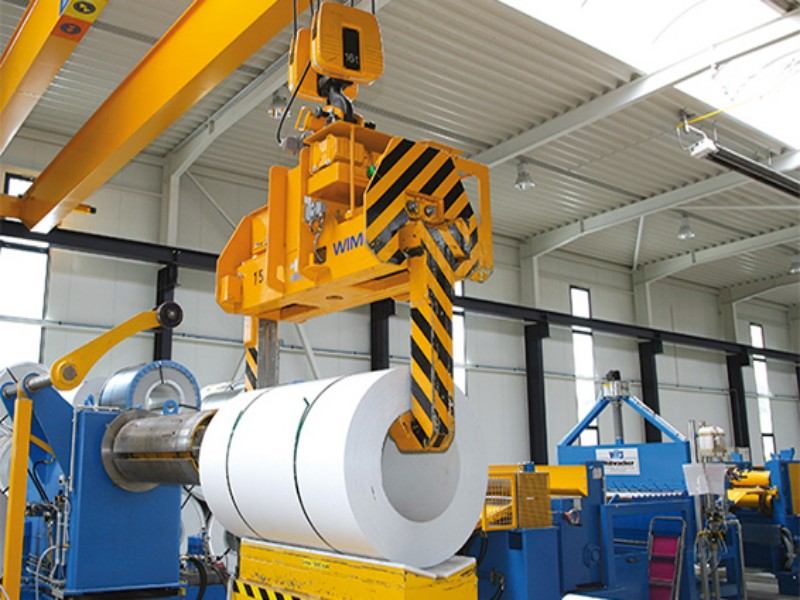

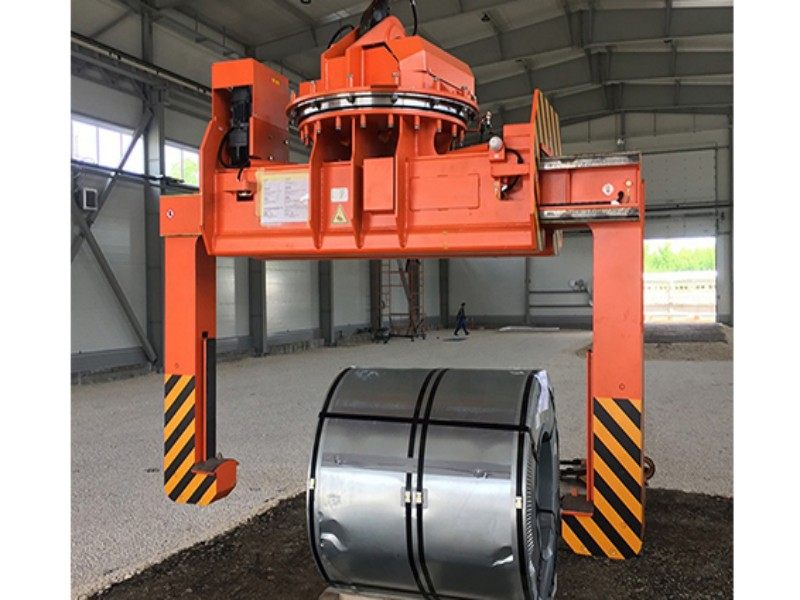

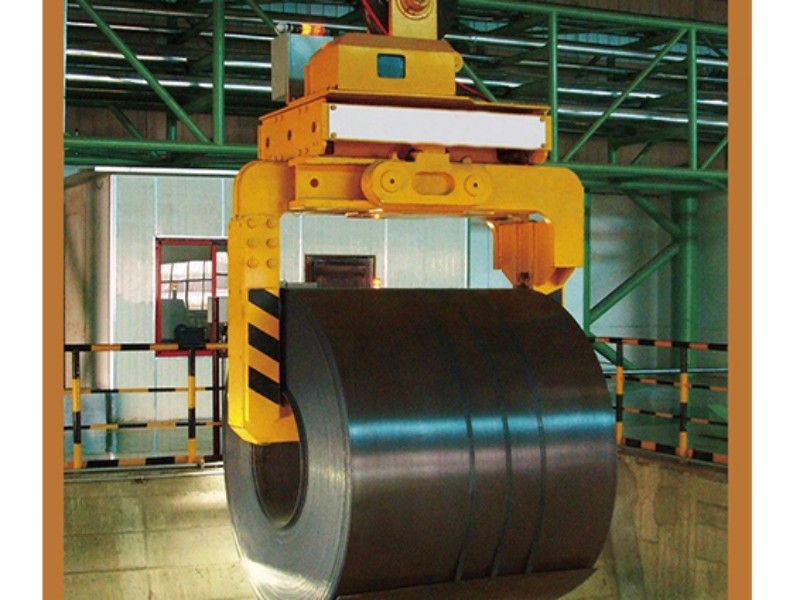

Clamp Coil Tong Lifter

Clamp Coil Tong Lifter

1. Capacity:10t-50t

2. Easy to operate

3. Safe and reliable

4. This steel coil lifter has telescopic function.

5. Our steel coil lifter has protect function.

6. Light weight, simple operation, flexible and reliable action, safe and convenient transfer, and high work efficiency. There is a complete detection device (automatic centering, edge detection anti-collision, safety protection device, prevention of misoperation functions), and set up various status indicators. There is a mechanical locking device after load and power failure. There are manual opening and closing functions in case of failure.

Overview:


Clamp Coil Tong Lifter For Steel Coil or Paper Coil


The wire coil lifting tong’s clamp is driven by a torque motor. The two clamp legs are driven to tighten or loosen through the sprocket and the gear rack of the worm gear reducer.
After lifting the steel coil, the machine is locked, even if there is a misoperation, the clamp will not open in the air
The clamp can be equipped with a rotating head, and the clamp can be rotated horizontally within a range of 360º during operation.
Light weight, simple operation, flexible and reliable action, safe and convenient transfer, and high work efficiency. It is mainly used for the transfer of large quantities of horizontal roll objects in steel plants, ports, wharves and other units.


At our company, we have a wide range of coil handling products, including coil tongs, that are designed to meet the diverse needs of our customers in the coil handling industry. Our coil tongs are carefully designed and customized to perfectly suit your specific requirements and applications.

Features

Clamp Coil Tong Lifter For Steel Coil or Paper Coil

1, There is Electro-optical Sensor Protection System to protect the coil not be broken by coil lifter (especially for cold rolling coil).

2, Electrical system is controlled by PLC and provide generic interface, it is low breakdown, easy installation and realize "Plug & Work" function.

3, There is torque limiter system to prevent the damage by Lock-Rotor, it make the motor durable.

4, There is ratchet system in Open/Close mechanism, the opening of arms is locked if there is no command for open arms, it will prevent the coil lifter open its arms by accident.

5, There is rotation mechanism (optional) that coil lifter can rotate and stop in any angle what is preset.

6, There is automatic hook hanging mechanism (optional) that we can hang the coil lifter to hook by automatically, the work of hanging will be safe and simple.

This type of the Coil Lifter is most widely used. It is moderate price, easy to operate, provide good protection for coil.

Specification

SpecificationValue
TypeVertical / Horizontal / Tilting / Rotating
CapacityCustomizable based on coil weight
Grip RangeAdjustable to accommodate different coil sizes
MaterialHigh-strength steel construction
Grip SurfaceNon-slip coating or specialized material
ActuationManual or powered actuation
Safety FeaturesLatch or lock mechanism for secure gripping
CustomizationTailored design for specific coil dimensions
ComplianceDesigned to meet industry standards and safety regulations


Working load limit
Coil width(mm)
Diameter of inner coil (mm)
Inner width (mm)
Inner height (mm)
Self weight(Kg)
3T
300-500
≥400
500
450
350
5T
900-1100
≥506
1100
600
650
10T
900-1120
≥506
1120
850
900
15T
1100-1500
≥506
1500
850
1600
25T
1100-1500
≥506
1500
860
2500
30T
1400-1660
≥506
1660
850
3400


Project Case

coil tongs case
