china hydraulic orange peel grab bucket for eot bridge crane

china hydraulic orange peel grab bucket for eot bridge crane

* Suitable to grab sand, coal, grain, slag, scrap
* through beam is shortened, high strength, light self-weight;
* main shaft sleeve is of bearing steel, Pin shaft material is 40Cr,
* High-temperature resistant bearing for the pulley,
* knife edge plate adopts wear-resisting steel plate, adopts multilayer sealing craft,
* dirt proof and waterproof and it could be underwater operation.
* Clearance of two knife edge plate is very small,0.3mm, good sealing, keep working site clean.
* the whole structure is strong and not distortion, good sealing.

Overview:

china hydraulic orange peel grab bucket for eot bridge crane

China hydraulic orange peel grab bucket for eot bridge crane is a special tool for cranes to grab dry bulk cargo. The grab operation does not require heavy physical labor, can achieve high loading and unloading efficiency and ensure safety. It is the main dry bulk handling tool of the port. According to the type of goods, it can be divided into ore grab, coal grab, grain grab, wood grab.
According to the driving method, it can be divided into two types: hydraulic grab and mechanical grab.
The mainstream grabs are as follows:
Shell type grab: suitable for port, dock, station yard, mine and other aspects of loading a variety of bulk cargo, minerals, coal, sand and gravel materials, earth and stone.

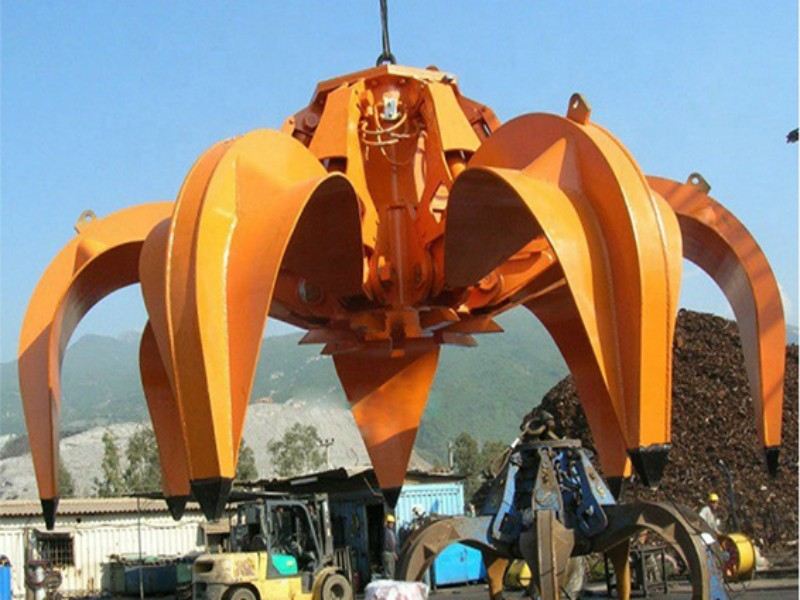

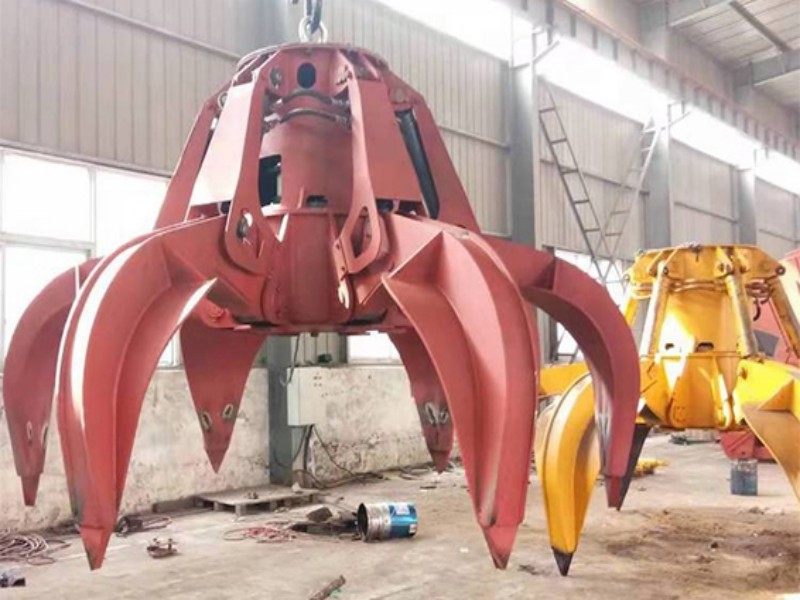

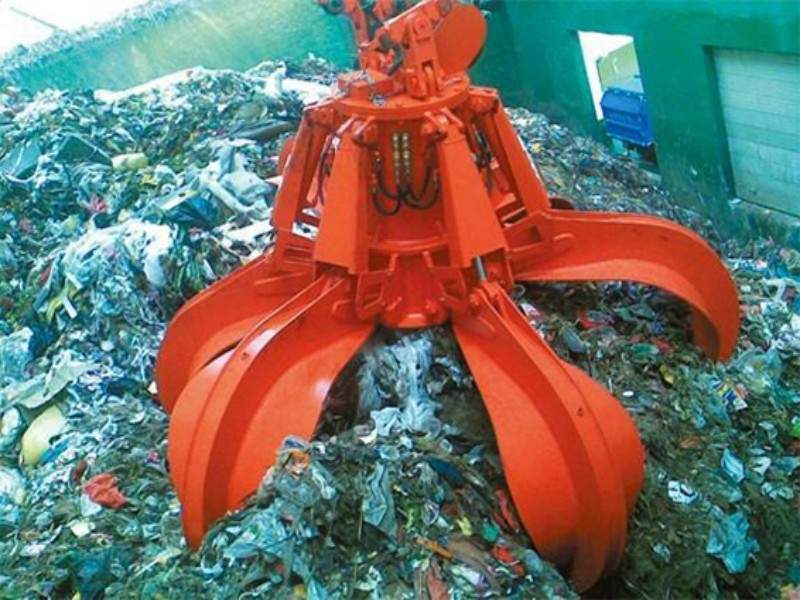

Multi-petal grab: Suitable for scrap steel grabbing and refining work in steel mills, bulk waste in waste disposal sites and construction sites, waste refining, handling and handling.
The wood grab is mainly used for the grasping and loading and unloading of logs, wood, pipes, drums and other objects of various specifications. It can be grabbed by a single grab or multiple picks, and can be used with cranes such as tower cranes and door cranes. Applicable to occasions such as log yards, dock unloading, etc.

Features

china hydraulic orange peel grab bucket for eot bridge crane

* Suitable to grab sand, coal, grain, slag, scrap
* through beam is shortened, high strength, light self-weight;
* main shaft sleeve is of bearing steel, Pin shaft material is 40Cr,
* High-temperature resistant bearing for the pulley,
* knife edge plate adopts wear-resisting steel plate, adopts multilayer sealing craft,
* dirt proof and waterproof and it could be underwater operation.
* Clearance of two knife edge plate is very small,0.3mm, good sealing, keep working site clean.
* the whole structure is strong and not distortion, good sealing.

Specification

china hydraulic orange peel grab bucket for eot bridge crane

Model
Volume(m³)
Grab self-weight(t)
Using crane ton(t)
Motor power(KW)
Operating Pressure bar
Close time(S)
DYZ3(0.5)
0.5
1.5
3.2
11
180
10
DYZ3(0.6)
0.6
1.7
3.2
11
180
11
DYZ5(0.8)
0.8
2.0
5
15
180
13
DYZ5(1.0)
1.0
2.5
5
15
180
14
DYZ10(2)
2
4.2
10
22
200
16
DYZ52.5)
2.5
2.6
5
18.5
180
17
DYZ10(3.0)
3.0
3.8
10
18.5
180
20
DYZ10(5.5)
5.0
4.3
10
22
200
19
DYZ16(2.5)
2.5
5.5
16
30
200
16
DYZ16(8.0)
8.0
5.6
16
30
200
19
DYZ20(4.0)
4.0
7
20
37
200
17
DYZ20(12)
12
8
20
37
200
25
DYZ25(17)
17
9
25
45
200
26
DYZ30(20)
20
11
30
45
200
28
