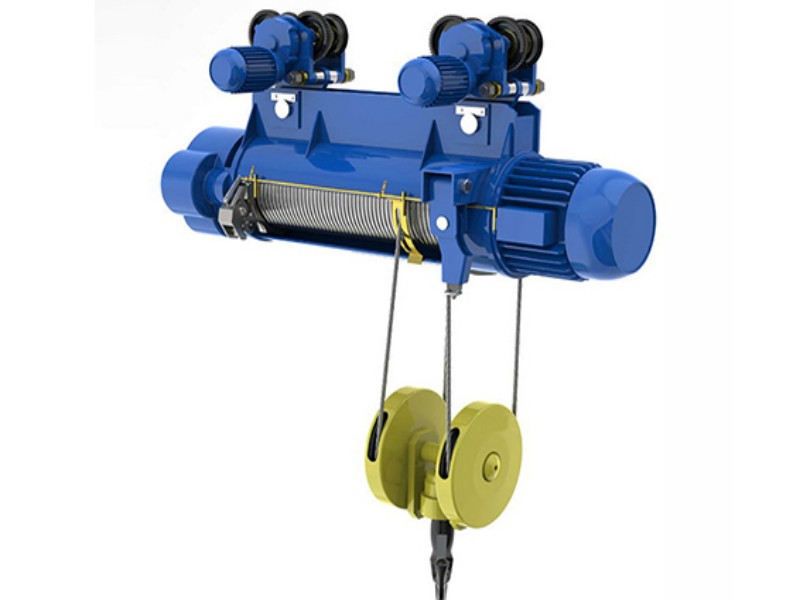

CD1/MD1 electric wire rope hoist is a small lifting equipment that can be installed on single girder cranes, overhead cranes, gantry cranes, and jib cranes. The CD1/MD1 electric wire rope hoist can also be used as a winch with a slight modification.
Capacity: 0.5-20ton
Lifting height: Up to 30m
Working duty: ISO M4
Voltage: 220-440V, 50/60Hz, 3-Phase according to the local conditions
CD1/MD1 wire rope electric hoist is an ideal lifting equipment to improve working efficiency and optimizing working conditions with low cost. Customized type is available according to working requirement
CD MD Wire Rope Hoist is the most popular hoist for single girder cane, because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance. also can work by fixing to a section of I-beam. It is a light duty designed.

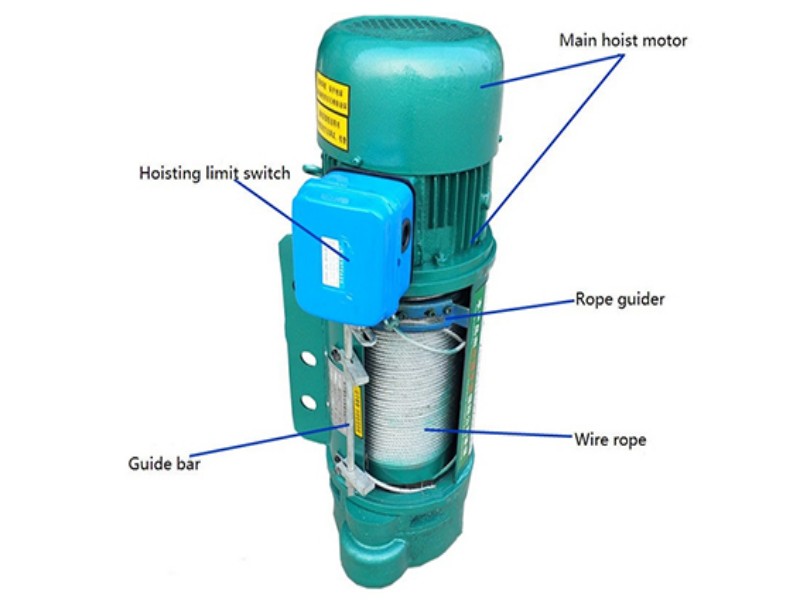

Reducer of CD MD Electric Wire Rope Hoist
It adopts a three-stage locking motor gear transmission structure; the gears and gear shafts are made of alloy steel after heat treatment, and the shell and cover are made of high-quality cast iron, with accurate assembly and good sealing. The reducer operates independently for easy loading and unloading.
Control box of CD MD Electric Wire Rope Hoist
It has a protection device for up and down trip circuit breakers, which can cut off the main circuit in an emergency to ensure the safe operation of the electrical block, long service life, and safe operation of electrical components.
Wire rope of CD MD Electric Wire Rope Hoist
Use GB1102-74 (6 * 37 + 1) hoisting steel wire rope, long service life.
Cone motor of CD MD Electric Wire Rope Hoist
The hoisting motor uses a cone motor with a large starting torque to brake the induction motor. No additional lightning arrester is needed. The load continuity factor of the motor is 25%; the motor uses B and F insulation, and the protection level is isIP44 / IP54 .
Push button switch of CD MD Electric Wire Rope Hoist
It is manual operation, easy to operate, there are two ways of rope operation and wireless remote control.
Gear of CD MD Electric Wire Rope Hoist
It adopts Japanese technology, innovatively adopts high-speed synchronous gear symmetrical arrangement, and adopts international standard gear steel. Compared with ordinary gears, it is more wear-resistant, more stable and labor-saving.
| Type | CD MD Wire Rope Hoist | |||
| Lifting Height/T | 1 | 3 | 5 | 10 |
| Hoisling Height/m | 44742 | 44742 | 44742 | 44834 |
| Hoisling Speed m/min | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 7(0.7/7) |
| Rope Dia/mm | 7.7 | 13 | 15 | 15 |
| Rope Specification | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 |

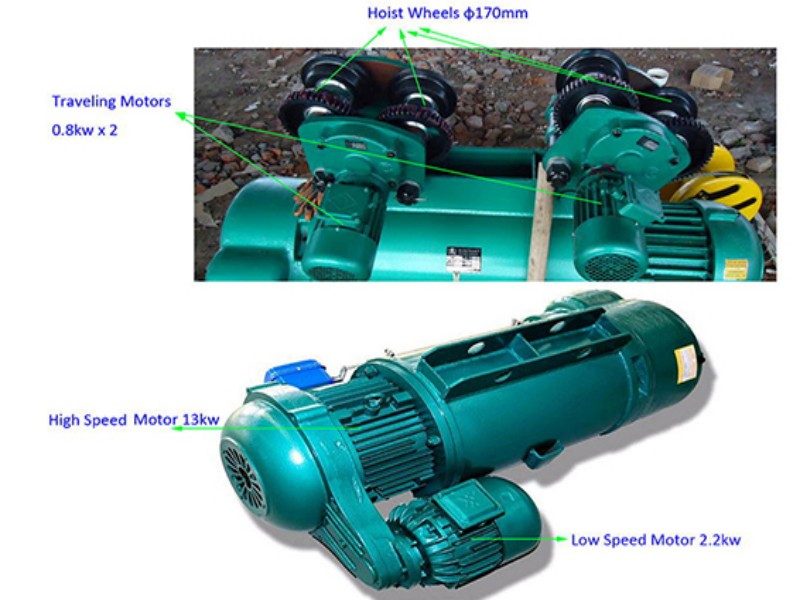

| Lifting Motor Power/kw | 1.5 (0.2/1.5) | 4.5 (0.4/4.5) | 7.5 (0.8/7.5) | 13(1.5/13) |
| Travling Motor Power/kw | 0.2 | 0.4 | 0.8 | 0.8*2 |
| Crane Weight/kg | CD:137-220 | CD:281-451 | CD:437-726 | CD:1048-1411 |
| MD:164-247 | MD:311-481 | MD:530-783 | MD:1104-1467 | |
