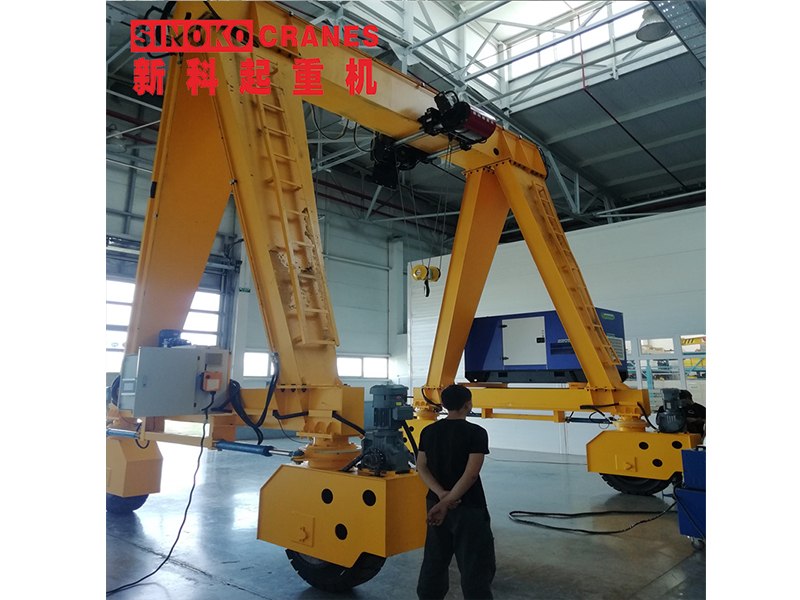

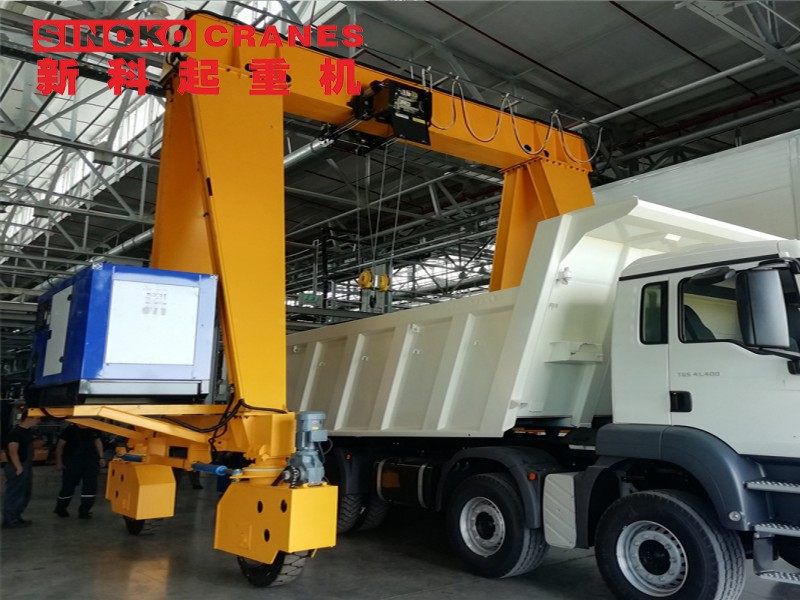

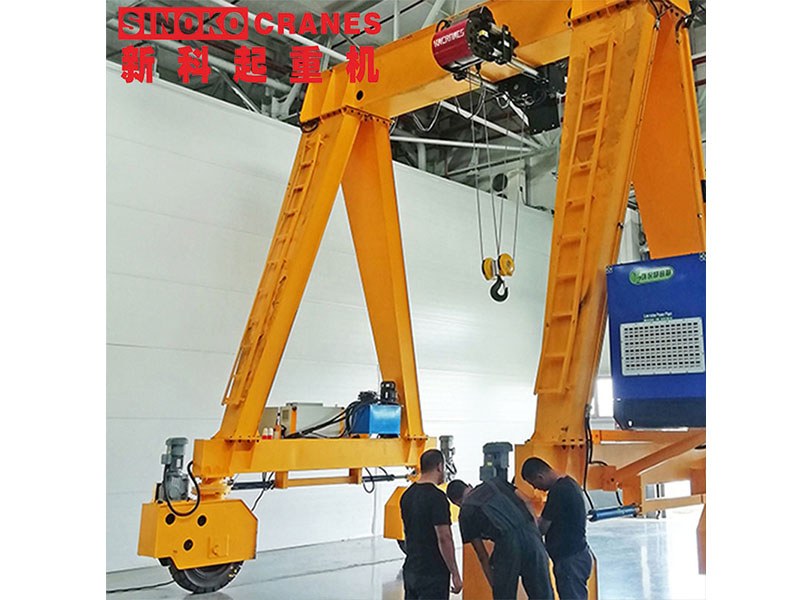

I. Brief Introduction of RTG Type Rubber Tyred Mobile Gantry Crane
Sinokocranes RTG type rubber tyred mobile gantry crane is used to lift or handle materials in various applications, such as port yard, outdoor storage and indoor warehouses.
II. Description of RTG Type Rubber Tyred Mobile Gantry Crane
The RTG crane has a steel structure with high rigidity and stability that allows the materials to be handled in a very precise way and without shaking in their movement, even at high handling speeds. The mobile gantry crane is powered by diesel generator systems or other power supply equipment, which is an excellent solution for medium-sized material handling.
III. Features of RTG Type Rubber Tyred Mobile Gantry Crane
Sinoko Crane brand RTG type rubber tyred mobile gantry crane is designed based on DIN15018, and welding for DIN18800, the level upto DIN8563.
# | Mechanism Name | Function and Advantage |
1 | Hoisting | Heavy duty motor, 60% ED rating Super drum, longer rope lifetime DIN 34CrMo4 hook, Class T |
2 | Cross Travelling | 3 in 1 gear motor with hardened gear, H Insulation high protection level Stepless speed control |
3 | Long Travelling | Non-coupling transmission Modular design Smart size |
4 | Free Turning | PLC control system Rubber tyred wheel Free turning |
IV Other series of gantry cranes from Sinoko Crane factory:
1. MH type single girder Electric hoist gantry crane
2. L type single girder gantry crane
3. MG type general purpose double girder gantry crane
4. Container lifting double girder gantry crane
Specification
| Item | Data |
| Capacity(NOT including spreader | 30.5-40.5t |
| Span | 15.4-23.47m |
| Lifting height | 18.2m |
| lifting speed | 12-46m/min |
| cross travelling speed | 45-70m/min |
| long travelling speed | 45-100m/mim |
| Working class | ISOA6-A7/FEM3M-FEM4M |
| Power source | as your demands |
| Other | According to your specific usage, specific model and design will offer |
CASE
Discover the versatility of the RTG Type Rubber-Tyred Mobile Gantry Crane, ideal for container yards and ports. Its flexible, all-terrain mobility and high lifting capacity make it perfect for efficient, large-scale material handling across various industries.
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a QuoteFAQs
The RTG crane is designed for container handling, logistics, and port operations. Its mobility and high lifting capacity make it ideal for moving heavy loads efficiently in areas like container yards, ports, and warehouses.
This crane offers excellent mobility with rubber tyres, flexible movement across various terrains, and high lifting capacity. It’s equipped with advanced safety systems, durable construction, and easy operation for efficient material handling.
The RTG crane uses rubber tyres, allowing it to move freely without being restricted to fixed tracks. This makes it highly versatile for container stacking, handling materials, and transporting goods in ports and industrial areas.
The RTG Type Rubber-Tyred Gantry Crane can lift up to 40 tons, depending on the specific model configuration. Its high capacity makes it suitable for heavy-duty material handling in large-scale operations.
Yes, the RTG mobile gantry crane is designed for outdoor use, capable of operating in harsh environments such as container terminals, ports, and construction sites. Its weather-resistant features ensure reliable performance in varying conditions.
Yes, Sinoko offers customization options, including different lifting heights, spans, and control systems, allowing you to tailor the crane to your specific operational requirements. Contact us for more information.
