Overview:

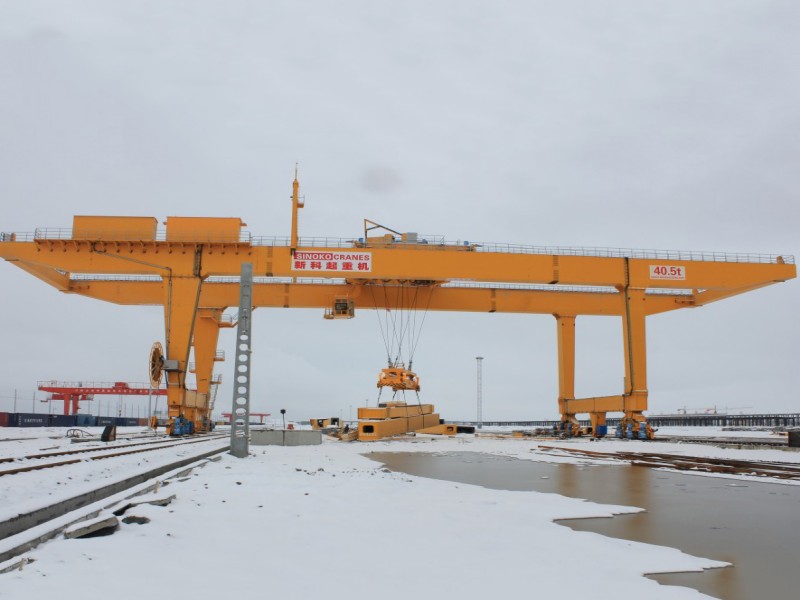

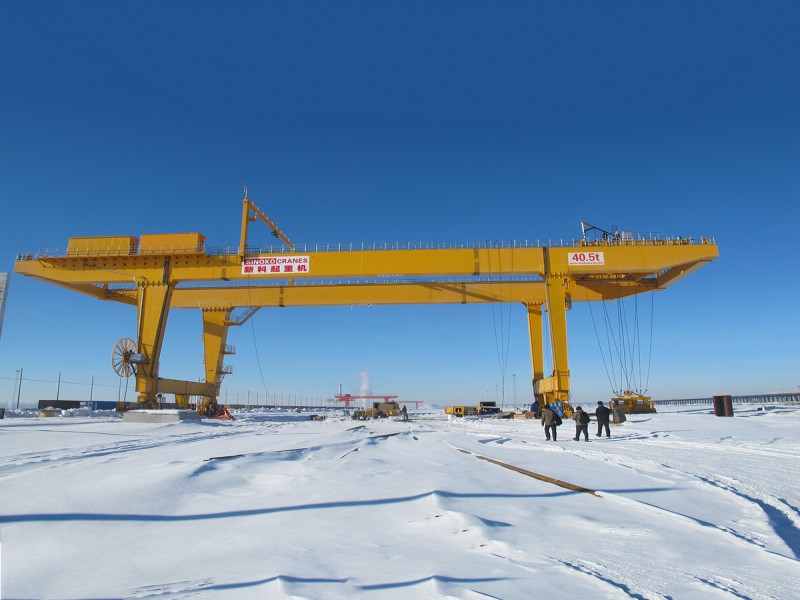

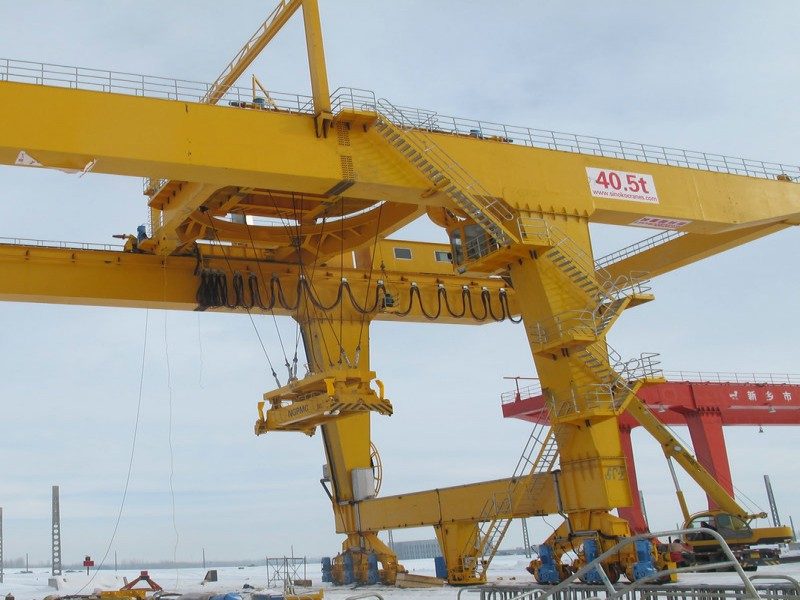

50 ton Rail Mounted Gantry Crane consists of main girder, rigid and flexible door legs, running trolley, hoisting mechanism, long traveling mechanism, electrical system, operating cabin and so on.
Features
Rail-mounted configuration, allowing it to traverse along the rails installed on the ground. This ensures smooth and precise movement across the working area, enabling efficient container handling operations in ports, terminals, and other industrial settings.
The double girder design of this gantry crane provides exceptional strength and stability, allowing it to handle heavy loads up to 50 tons. The twin girders are placed parallel to each other, providing a strong and rigid framework for lifting and moving containers. This design also offers increased lifting height, making it suitable for stacking containers and maximizing storage space.
Equipped with advanced control systems, the 50t Rail Mounted Container Gantry Crane offers precise and reliable operation. The crane can be operated remotely or from a control cabin, providing operators with a clear view of the working area for safe and efficient container handling.
Safety is a paramount consideration in crane design, and this gantry crane is no exception. It incorporates multiple safety features such as overload protection, emergency stop buttons, and limit switches to ensure safe operations and protect both personnel and cargo.
Specification
Model | Container Gantry Crane | ||
Crane Capacity | 45t / 50t | ||
Crane Span | 8m+35m+8m | ||
Lifting Height | 12m | ||
Lifting Mechanism | Lifting speed | 1~12 m/min | |
Motor Brand | NGP | ||
Brake Brand | ZPMC TOP 1 China Brand | ||
Working Class | M6 | ||
Wire rope | Structure | 24NAT 6×19W+FC1770ZS336 | |
Tensile Strength | 1770MPa | ||
Cross Traveling Mechanism | Traveling Speed | 5~50 m/min | |
Brake Brand | ZPMC TOP 1 China Brand | ||
Working Class | M6 | ||
Long Traveling Mechanism | Traveling Speed | 0~50m/min | |
Brake Brand | ZPMC TOP 1 China Brand | ||
Reducer Brand | TONGLI Brand | ||
Rail Type | P50 | ||
Working Class | M6 | ||
Control Method | Cabin Control | ||
Protection Level of Motor | IP55 | ||
Isolation Grade of Motor | Class H | ||
Working temperature | -40~40℃ | ||
Power Supply | 380V 50HZ 3P | ||
CASE
The 50T Rail-Mounted Double Girder Container Gantry Crane by Sinoko Crane is engineered for high-efficiency container handling. With a 50-ton lifting capacity, it’s perfect for ports, terminals, and large-scale logistics operations. Boost your productivity with this powerful, reliable crane.
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a Quote
Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility
The 3 ton portable small gantry crane specially designed by Sinokocranes for Thai customers has significantly reduced the production costs for the customers and enhanced their production efficiency.
Learn More Get a QuoteFAQs
A Double Girder Container Gantry Crane is a large, rail-mounted crane used for lifting and transporting containers, typically in port or terminal settings. It offers higher lifting capacity and stability.
The 50T Rail-Mounted Double Girder Container Gantry Crane has a lifting capacity of 50 tons, making it ideal for heavy-duty container handling in high-demand environments.
This crane is primarily used in ports, container terminals, and logistics centers for handling heavy containers and materials in outdoor environments.
With a high lifting capacity, fast lifting speeds, and precise control, the 50T crane significantly enhances efficiency in container loading, unloading, and transportation tasks.
Yes, Sinoko Crane offers customization options for span, height, lifting mechanisms, and control systems to match specific operational requirements.
Yes, the 50T Rail-Mounted Double Girder Container Gantry Crane is designed for outdoor use, built to withstand harsh weather conditions and perform reliably in busy port environments.
