Overview:

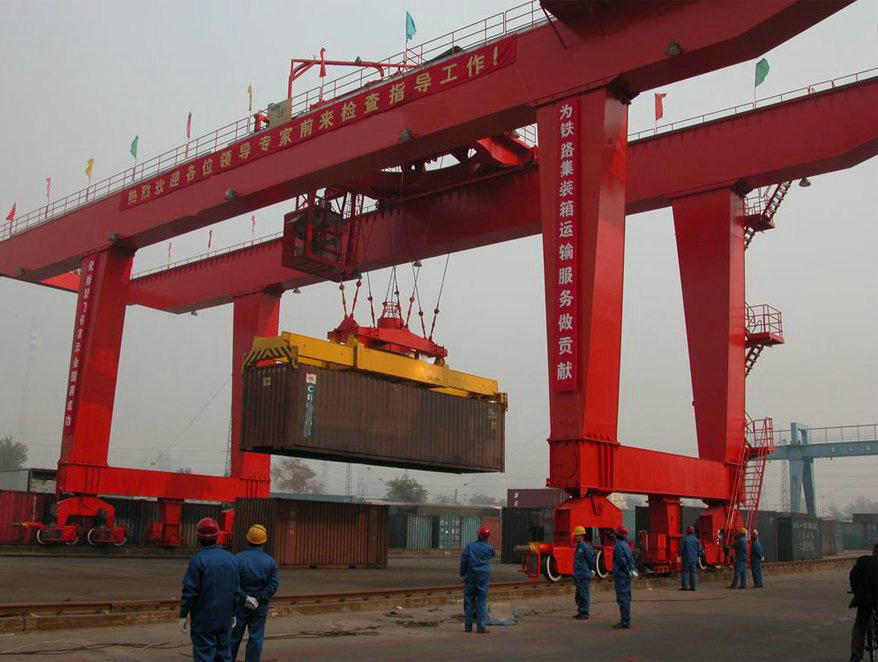

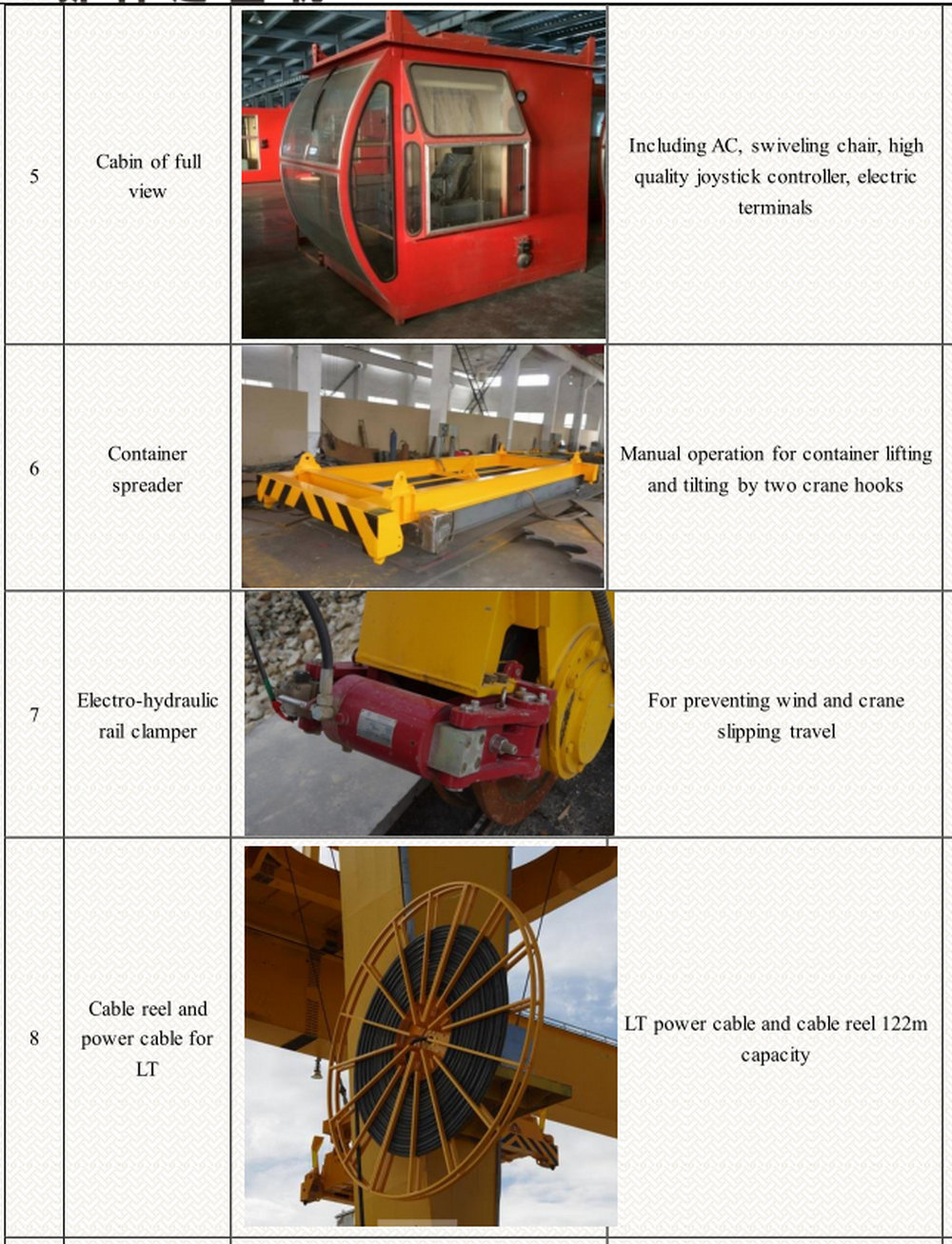

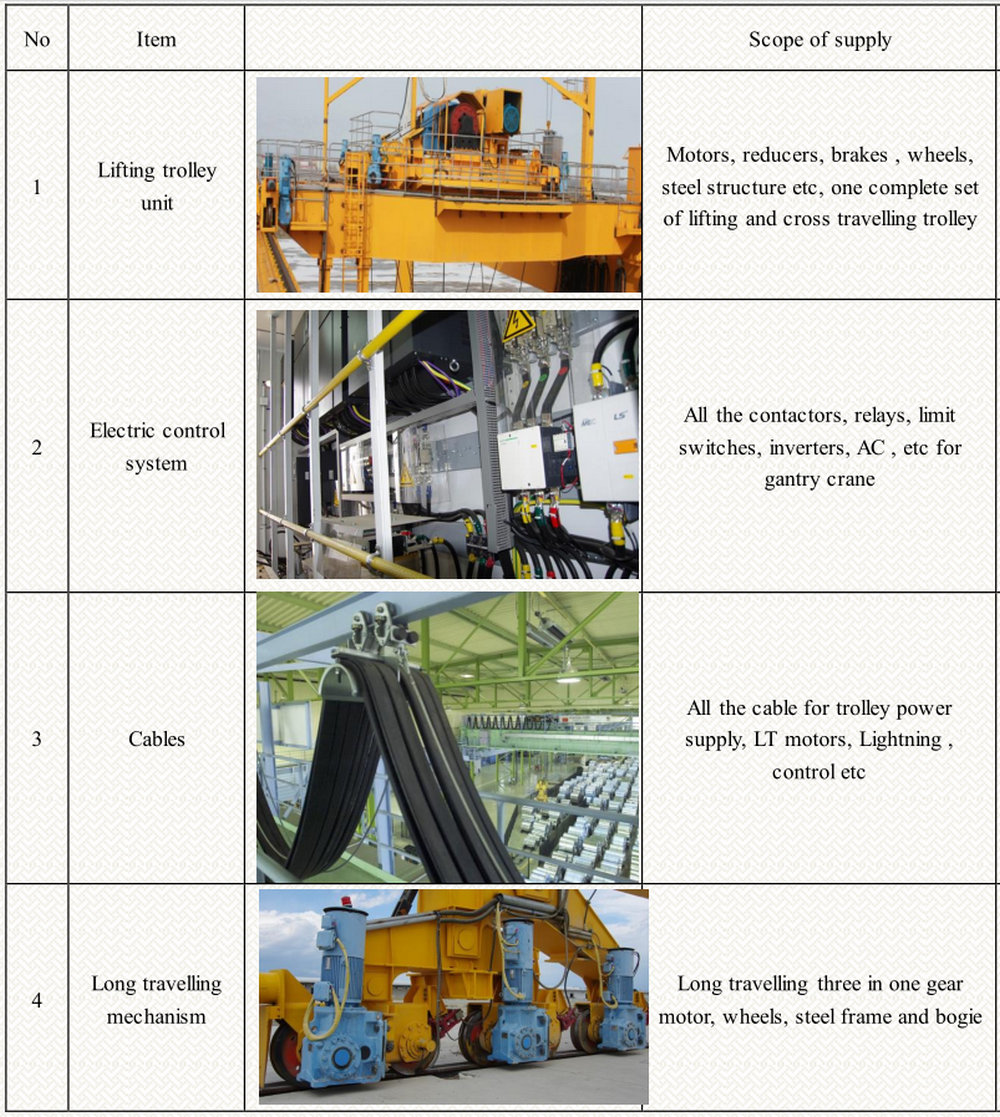

Shipyard 30T+30T container handling gantry crane is suitable for loading and unloading in open warehouse, cargo yards, railway freight station, port and wharf area. So what do we supply to our customers?
Shipyard 30T+30T container handling gantry crane mainly have the following characteristics:
1.The lifting speed is low and the running speed of the long traveling is high. According to the demand of the container yard, the lifting height of the rail type container gantry crane is determined according to the 3 stacked containers together and the fourth can pass or the 4 stacked containers together and the fifth can pass. Because the lifting height is not high, the lifting speed is correspondingly lower. However, the container yard generally has a longer length along the track, which achieves a certain productivity and the running speed of the long traveling is higher.
2. The running speed of the trolley can be determined according to the span of the bridge and the extension distance between the two ends. When the span and cantilever length are small, the speed and productivity requirements of the trolley are relatively desirable. When the span is larger and the cantilever length is larger, the running speed of the trolley can be increased to meet the productivity requirement.
3. when the span is more than 40m, in the course of high speed operation of the long traveling, due to the different running resistance of the two sides of the door, the synchronization device is set up to keep the speed of the running speed of the running mechanism on both sides through the electrical control system.
4. In order to meet the requirements of high usage, the electric drive control system uses thyristor DC or AC speed control control system to achieve better speed control and control performance. Electrical control system can also be controlled by conventional AC eddy current speed control or AC stator voltage regulation and speed drive control system. For the electric control system of high speed car running mechanism, it usually uses thyristor DC, AC speed control control system or AC stator voltage regulation control system with electric brake, avoiding the way of braking on brake when running the conventional electric drive system, so as not to bring huge impact to the whole machine.

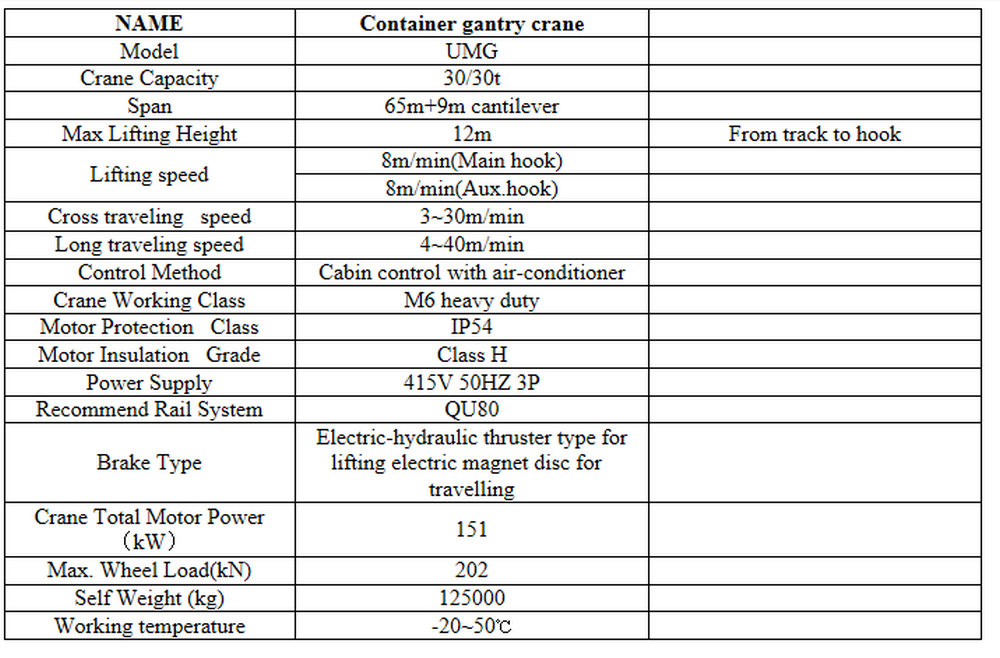

Specification
| NAME | Container gantry crane |
| Model | UMG |
| Crane Capacity | 30/30t |
| Span | 65m+9m cantilever |
| Max Lifting Height | 12m |
| Lifting speed | 8m/min(Main hook) |
| Cross traveling speed | 3~30m/min |
| Long traveling speed | 4~40m/min |
| Control Method | Cabin control with air-conditioner |
| Crane Working Class | M6 heavy duty |
| Motor Protection Class | IP54 |
| Motor Insulation Grade | Class H |
| Power Supply | 415V 50HZ 3P |
| Recommend Rail System | QU80 |
| Brake Type | Electric-hydraulic thruster type for lifting electric magnet disc for travelling |
Crane Total Motor Power (kW) | 151 |
| Max.Wheel Load(kN) | 202 |
| Self Weight(kg) | 125000 |
| Working temperature | -20~50℃ |
CASE
Discover how the Shipyard 30T Container Handling Gantry Crane enhances operational efficiency in busy ports and shipyards. Learn how its advanced features and reliable performance can help streamline your container handling processes, ensuring maximum productivity and safety.
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a QuoteFAQs
A Shipyard 30T Container Handling Gantry Crane is designed to lift and move heavy containers efficiently in shipyards, ports, and logistics centers, typically handling loads up to 30 tons.
This gantry crane features high load capacity, advanced safety systems, durable construction, and easy maneuverability, making it ideal for container handling in busy port environments.
The crane can safely handle loads up to 30 tons, ensuring efficient and reliable performance for heavy-duty container lifting tasks.
By providing fast and accurate container handling, the crane minimizes downtime and improves the speed of loading and unloading, optimizing overall port and shipyard operations.
Yes, the 30T Gantry Crane is customizable to suit different environmental and operational conditions, with options for various lifting heights, spans, and drive systems.
Routine maintenance includes checking the mechanical and electrical systems, lubricating moving parts, and inspecting safety features to ensure smooth and safe operation over time.
