SINOKO Ground Floor Traveling Gantry Crane is a common gantry crane. The differences is Sinoko use FEM standard to design, and the production strictly according to gantry crane standards. In addition sinoko crane will take test for every crane to make sure good performance for cranes.

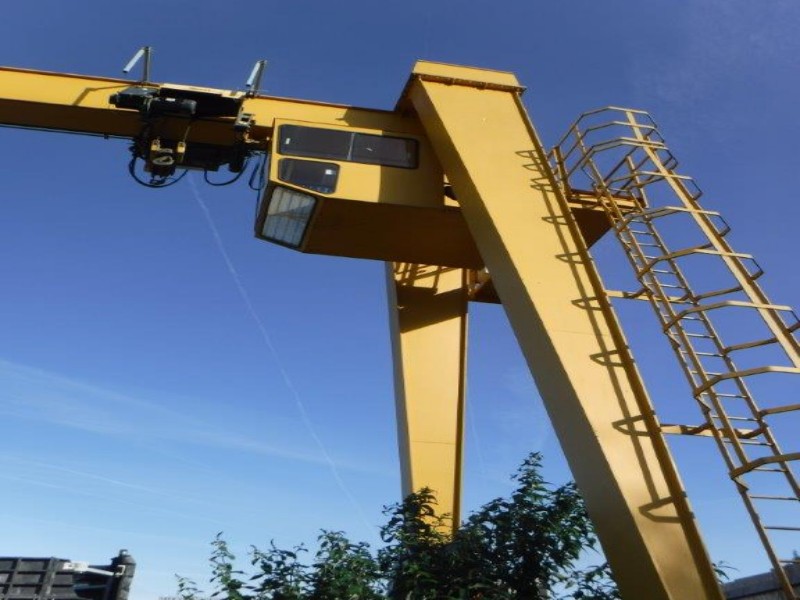

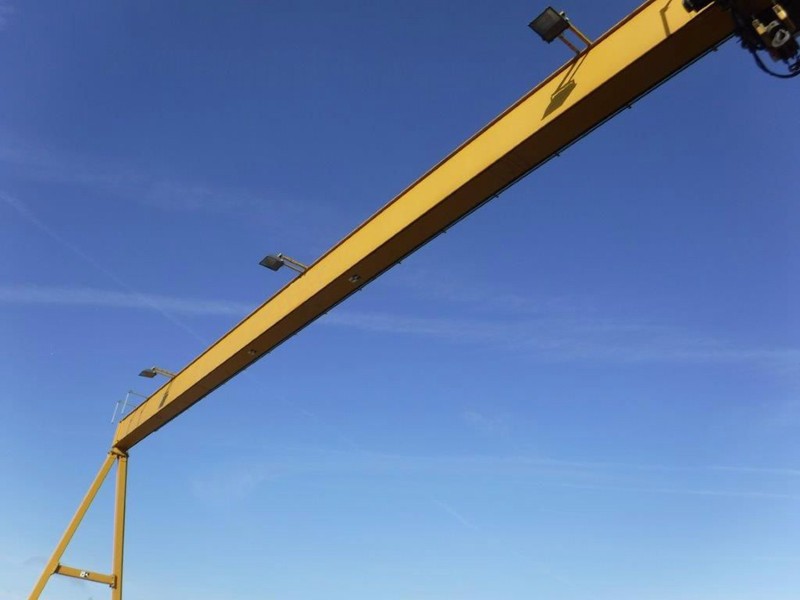

Ground Traveling Gantry Crane
This kind of Crane is available for general service, such as loading, unloading, lifting and transferring work in outdoor yards of the factory or on railways, also works as container crane matching special hang parts. The capacity is from 10 to 50 tons, span is from 18 to 32 m, the working class is medium & heavy grade. All movements of the crane are controlled in the cabin.
Ground Traveling Gantry Crane Mechanical Feature
1. Double welding box girder, DIN/FEM standard deflection
2. Steel tube legs, Material Fe37 or Fe52
3. Whole length CNC cutting for complete web plate, high deflection accuracy
4. High quality automatic welding and NDT inspection
5. Shot-blasting Sa2.5 for complete girder after welding, stress release
6. Epoxy zinc rich high quality painting, 2x2 with 140μm
7. 10.9 class High tension bolts mouting between girder and legs, life time safety connection
8. Vertical gear motor driving, more safety and smaller space
Ground Traveling Gantry Crane Specification
Capacity | T | 10 | ||||
Span | m | 18 | 22 | 26 | 30 | 35 |
Lifting height | m | 10 | ||||
Lifting speed | m/min | 0.66/4; 0.8/5; 1.0/6.3; 1.3/8 | ||||
Trolley travelling speed | m/min | 2.0~20; 3.0~30 | ||||
Crane travelling speed | m/min | 3.0~30 | ||||
Max. Wheel load | KN | 102 | 109 | 117 | 127 | 143 |
Rail recommended | Model | 24kg/m | ||||
Total motor power | kw | 17 | ||||
Main dimension (mm) | Span(m) | 18 | 22 | 26 | 30 | 35 |
Crane base distance | B | 5500 | 5000 | |||
Crane width | B0 | 6320 | 5820 | |||
Trolley rail distance | W | 1600 | ||||
Hook left limitation | S1 | 500 | ||||
Hook right limitation | S2 | 800 | ||||
Component Used on Ground Traveling Gantry Crane
- Electric motor is well-known one in China, like Jiamusi or other international one like ABB, SEW and so on as customer’s requirement.
- Reducer is SEW of other equivalent ones.
- Inverter is Schneider, ABB or some other international ones.
- Such important electric components as breaker, contactor, and fuse are of Schneider, Siemens and so on.
- Other ones can be followed according to our customer’s requirement.
All above datas are standard. Please tell us the following parameters before you finish this order:
1.Lifting capacity
2. Span ( rail centre to centre )
3. The required lifting height ( from hook to the ground ) and the span distance
4. Crane travelling length
5. What will be lifted by the crane
6. The crane and hoist movement speed (m/min)
7. The rail length and the height.
8. Single speed or double speed for lifting and travelling ?
9. Driver cabine control or pendant control ?
10. How many hours work per day ?
11. Power source : 380v,50Hz,3phase or others?
If you are interested in our Ground Traveling Gantry Crane, feel free to send us email or call us.
