Overview:

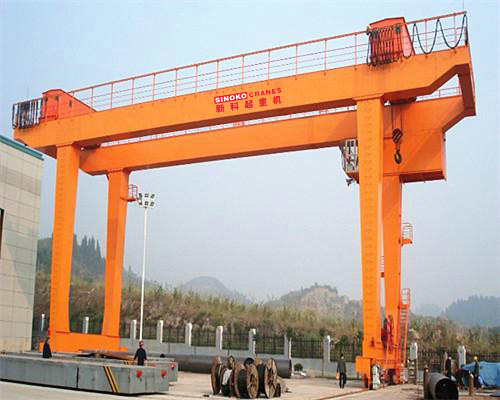

50T /10T double beam gantry crane is suitable for railway station, port terminal, open storage, cargo (material) field, various materials' loadling and unloadling.
The driver's cabin is equipped with a rain-proof enclosure and can be normally operated in the open air. The gantry cranes are electrically conductive by means of flexible cables.

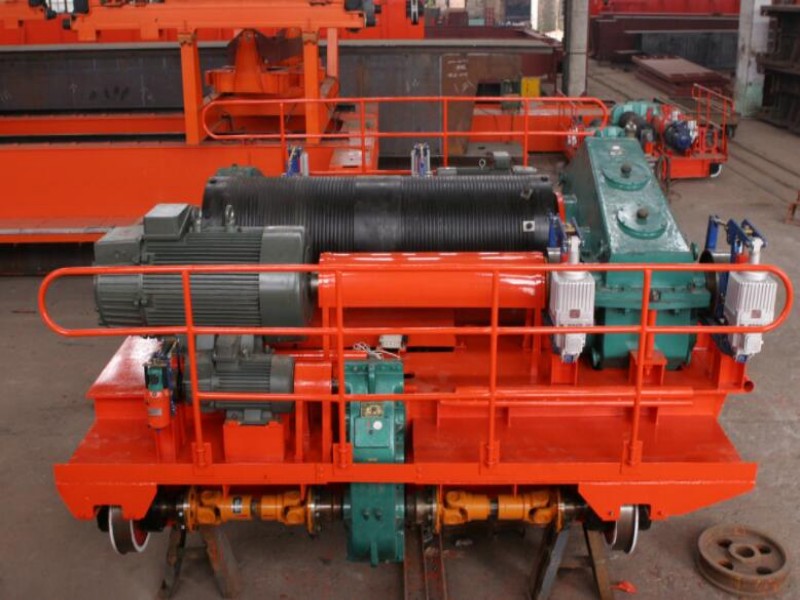

The trolley is powered by trolley wire or cable reel , The trolley line power supply is a common kind of conduction mode, bridge beam beam box welding structure, crane running balance, good wind resistance, the agencies have security protection devices.
Orbital gantry crane principle is a kind of heavy lifting capacity of a lifting machine, a higher level of work, suitable for open storage and dock and other places.
Features
1. This crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
2. Adopt dedicated container spreaders which can handle 20 feet, 40 feet and 45 feet containers.
3. Electrical drive system is full digital AC frequency conversion, PLC control speeding, CMS intelligent monitoring and management system, the running state real-time monitoring equipment.
4. The upper trolley can rotate 270 degree for easy load and unload.
5. Three-in-one reducer is adopted for long travel and cross travel, easy maintenance.
6. Safety protection: Anti-breaking shaft, wind warning, anti-tipping and etc.
Specification
| Item | Data |
| Capacity(NOT including spreader | 30.5-40.5t |
| Span | 15.4-23.47m |
| Lifting height | 18.2m |
| lifting speed | 12-46m/min |
| cross travelling speed | 45-70m/min |
| long travelling speed | 45-100m/mim |
| Working class | ISOA6-A7/FEM3M-FEM4M |
| Power source | as your demands |
| Other | According to your specific usage, specific model and design will offer |
CASE
Discover how our 50-Ton Outdoor Bridge Gantry Crane can elevate your operations. Whether you need heavy-duty lifting in construction, ports, or warehouses, Sinoko's reliable cranes offer performance and durability. Explore real-world applications and see how it can enhance your business.

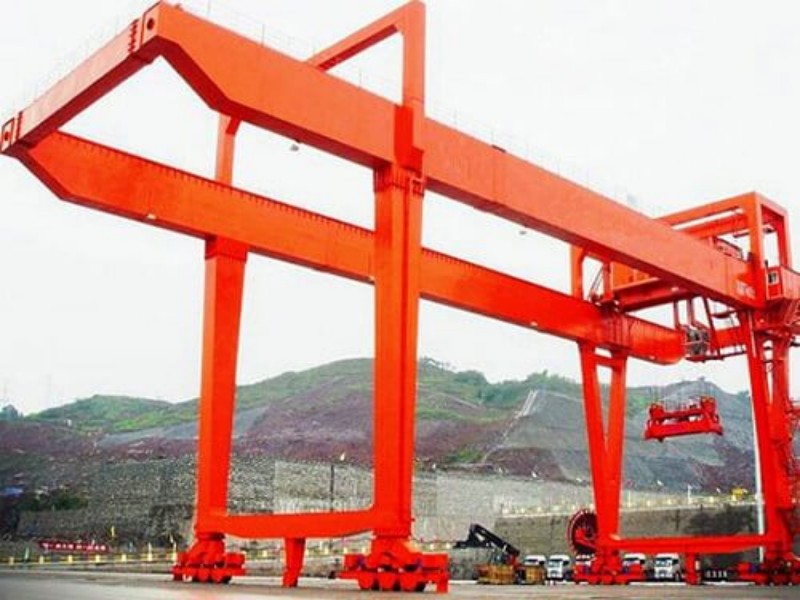

40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a QuoteFAQs
A 50-ton outdoor bridge gantry crane is primarily used for lifting and moving heavy materials in open spaces, such as construction sites, ports, and warehouses. It can handle up to 50 tons of weight, making it ideal for large-scale industrial tasks.
The Sinoko 50-ton gantry crane offers durable construction, high lifting capacity, smooth operation, and weather-resistant design, making it suitable for outdoor environments. It also comes with advanced control systems for ease of use and safety.
Yes, Sinoko offers customization options based on your specific needs, including different lifting heights, spans, and power configurations. Contact our team to discuss tailored solutions.
The installation of the 50-ton outdoor bridge gantry crane requires a flat, stable surface and sufficient space for safe operation. Our team can assist with setup and provide guidance on site preparation.
Regular maintenance includes checking the hoist mechanism, inspecting the lifting chains or ropes, lubricating moving parts, and ensuring the electrical systems are functioning properly. Sinoko offers maintenance services and manuals for all our products.
Yes, the Sinoko 50-ton gantry crane is designed for outdoor use and can withstand a range of weather conditions, including rain and moderate wind. However, it is important to follow safety guidelines and perform regular checks to ensure optimal operation.
